$ 14383.00Ex works
With two-box mobile Impact structure, the temperature recovery time is less than 5 minutes, and the conversion time is only 10 seconds. Equipped with rigid polyurethane foam insulation material, it has ultra-low temperature thermal conductivity and waterproof performance, and supports programmed temperature control.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042376
Service :The delivery and service By NBCLab.Com

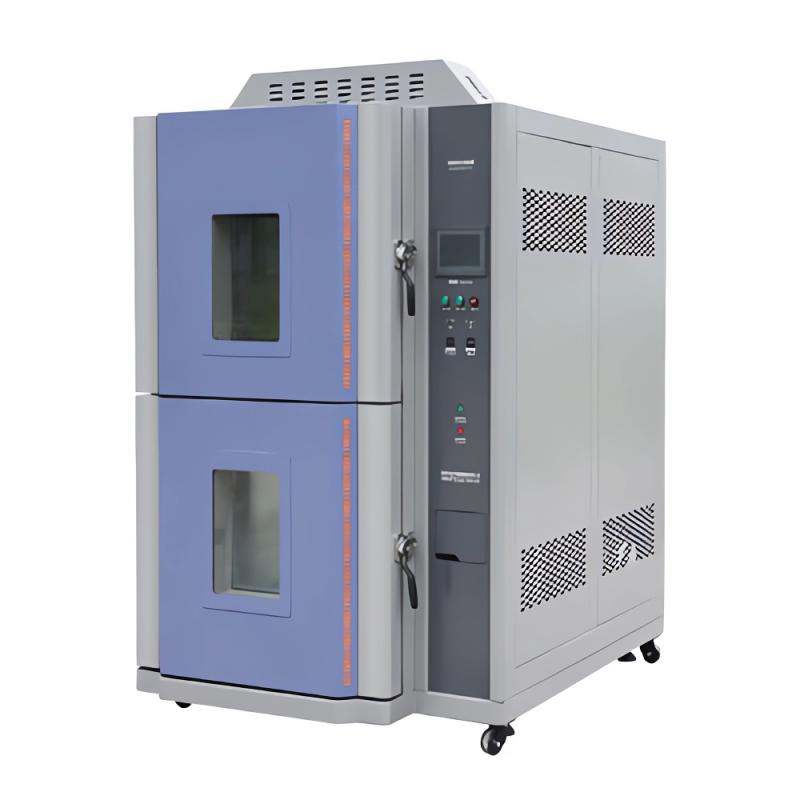

APKJ 2AP-CJ-50A Thermal Shock Test Chamber is a device used to test the performance of materials in extremely high temperature and extremely low temperature continuous environment. The equipment adopts a two-box mobile design, which is divided into high temperature zone and low temperature zone. The impact test is carried out by the dynamic movement test product of the air pressure-driven basket, which is widely used in Electronics, Auto Parts, Metal Chemical Materials and other industries.
1. Adopt self-developed 7-inch super-large touch AP-950 programmable temperature controller, full touch screen operation 2. Two-box Mobile Thermal Shock Design, Safe Air Pressure Drives Test Objects Up and Down Impact 3. Thermal Shock Mechanism Moving Time Within 10 Seconds, Temperature Recovery Time Within 5 Minutes 4. Adopt HFC environmentally friendly refrigerant and binary ultra-low temperature freezing system for fast cooling and high efficiency 5. Paperless recording function, real-time display of temperature impact test changes Linear dispersion chart 6. The box body is made of rigid polyurethane foam insulation material, which has the advantages of energy saving, shockproof and waterproof
The equipment is divided into two parts: high temperature zone and low temperature zone, and the test product is placed in the basket. When impacting, the test product is moved into the high temperature zone or low temperature zone by the air pressure drive basket for impact test to realize dynamic test. The control system automatically adjusts the operation of the refrigerator and heating system according to the set temperature point, and completes the chemical or physical change test caused by thermal expansion and contraction in a very short time.
Electronics components, plastic industry, automation parts, communication components, auto parts, metals, chemical materials, plastics industry, defense industry, aerospace, military industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic, polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area 2. Set the High and Low Temperature Impact Temperature Point through the Touch Screen Controller 3. Start the equipment, and the air pressure drives the test object to move in the high temperature and low temperature zones. Impact 4. Real-time observation of temperature Linear dispersion and recording of test data 5. Automatically stop and save data after the test is completed
○ It is necessary to configure an air or power switch of corresponding capacity for independent use of this equipment ○ power requirements: three-phase four-wire + protective ground, voltage AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz The grounding resistance of the protective wire should be less than 4Ω. ○ environment temperature is maintained between + 25~ + 30 ℃, relative humidity ≤ 85% ○ When the equipment is not working, the environment temperature should be maintained at 0 ℃~ + 45 ℃ ○ When the environment temperature is lower than 0 ℃, the water remaining in the equipment should be drained clean ○ Maximum power about 12.0KW, maximum current 18A ○ Air source pressure requirements (5~ 7) kg/cm2, air source flow rate 0.1m3/min
