$ 17092.00Ex works
Dynamic Impact is achieved with a two-box mobile structure, with a cold and heat conversion time of no more than 10 seconds and a temperature recovery time of less than 5 minutes. It is equipped with HFC environmentally friendly refrigerant and a binary ultra-low temperature freezing system, meeting the requirements of many international testing standards.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042377
Service :The delivery and service By NBCLab.Com

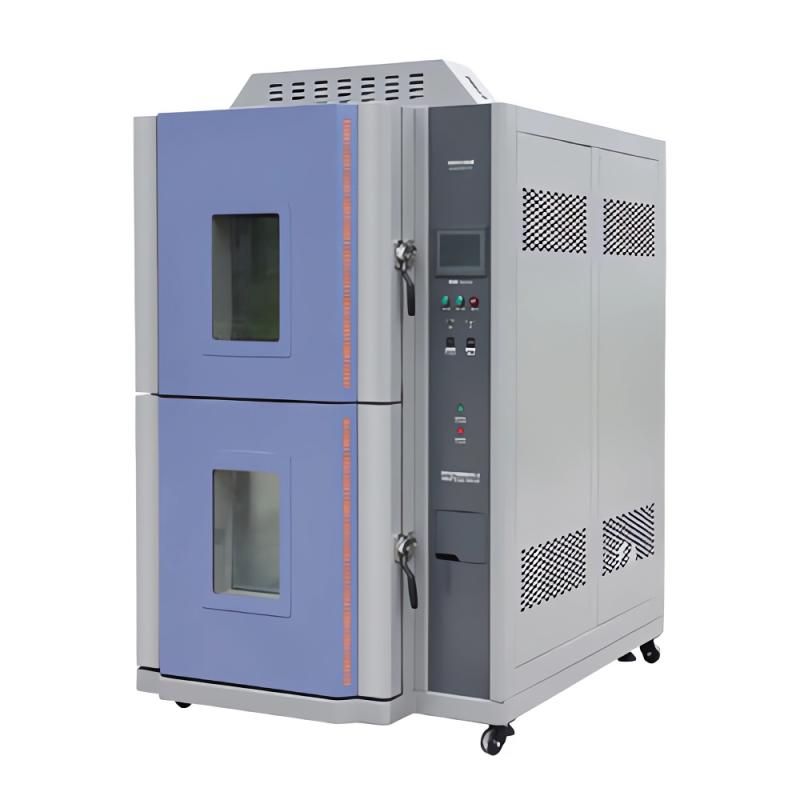

APKJ 2AP-CJ-50B Thermal Shock Test Chamber is a device used to test the resistance of materials in a continuous environment of extremely high temperature and extremely low temperature. It adopts a two-box mobile design, which is divided into a high temperature zone and a low temperature zone. The test product is dynamically moved in the basket by air pressure drive to achieve rapid temperature Impact. It is suitable for many industries such as Electronics, Auto Parts, Metal Chemicals, etc.
1. Adopt Aipei's self-developed 7-inch super-large touch AP-950 programmable temperature controller, which supports touch screen input and real-time temperature Linear dispersion display. 2. Two-box Mobile Thermal Shock, Safety Air Pressure Drives the Test Object Up and Down Impact. 3. Thermal Shock mechanism movement time within 10 seconds, temperature recovery time within 5 minutes, in line with MIL, LEC, JIS and other specifications. 4. Adopt HFC environmentally friendly refrigerant and binary ultra-low temperature freezing system for fast cooling and high efficiency. 5. The box insulation material is rigid polyurethane foam, which has the advantages of energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, and waterproof.
The test chamber is divided into high temperature zone and low temperature zone, and the test product is placed in the basket. Impact, the basket is driven by air pressure to move the test product into the high temperature zone or low temperature zone for temperature Impact, to achieve dynamic testing. The control system automatically adjusts the cooling and heating system according to the set program to ensure rapid temperature conversion and recovery.
Electronics Components Plastics, Automation Components, Communication Components, Auto Parts, Metals, Chemical Materials, Plastics, Defense Industry, Aerospace, Military Industry, BGA, PCB Substrate, Electronic Chip IC, Semiconductor Ceramics, Polymer Materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the test product in the hanging basket test area. 2. Set the high and low temperature Impact temperature point through the touch screen controller. 3. Start the equipment, and the air pressure drives the test object to and fro in the high temperature zone and the low temperature zone. Impact. 4. Monitor real-time temperature Linear dispersion and record data. 5. Automatic stop or manual shutdown after the test.
The installation site requires an independent AC380V power supply, including three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz. The grounding resistance of the protective wire should be less than 4Ω. * The equipment does not include ventilated pipes, power leakage switches, air Compressors, water sources and other external environment items. * environment temperature should be maintained between + 25~ + 30 ℃, relative humidity ≤ 85%, pressure 86kPa~ 106kPa. * When the equipment is not working, the environment temperature is maintained at 0 ° C~ + 45 ° C. When it is lower than 0 ° C, water storage needs to be discharged to prevent the pipeline from freezing. * Pay attention to safety protection devices, including Compressor overpressure, overheating, overcurrent protection, laboratory temperature protection, and total power supply phase sequence and phase loss protection.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
