$ 18893.00Ex works
Adopt two-box mobile design, temperature recovery time ≤ 5 minutes, conversion time ≤ 10 seconds. With paperless recording function, real-time display of temperature Linear dispersion, support for a variety of test specifications, the use of environmentally friendly refrigerant and high-efficiency freezing system.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042378
Service :The delivery and service By NBCLab.Com

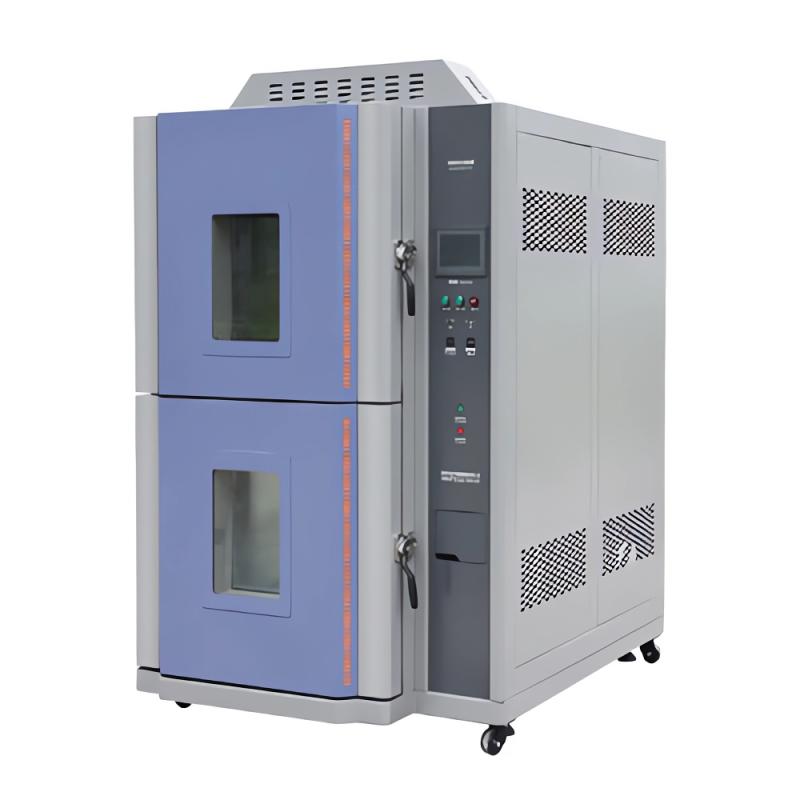

The APKJ 2AP-CJ-50C Thermal Shock Test Chamber is a device used to test the resistance performance of materials in extremely high temperature and extremely low temperature continuous environments. It adopts a two-box mobile design, which is divided into high temperature zone and low temperature zone. The test product can be dynamically moved by air pressure drive basket to simulate chemical or physical changes caused by thermal expansion and contraction in the shortest time.
1. Two-box Mobile Thermal Shock, Safe Air Pressure Drives Test Objects Up and Down Impact 2. Adopt imported color touch LCD Chinese/English microcomputer temperature controller made in Japan 3. Paperless recording function, with real-time display of Linear dispersion diagram of temperature impact test changes and dual recording functions 4. Thermal Shock Mechanism Moving Time Within 10 Seconds, Meets MIL, LEC, JIS and Other Specifications 5. Thermal Shock temperature recovery time within 5 minutes, can meet the relevant test specifications 6. Adopt HFC environmentally friendly refrigerant, binary ultra-low temperature freezing system design, fast cooling and high efficiency 7. The box insulation material is made of rigid polyurethane foam, which has the advantages of energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, waterproof and moisture-proof, etc
The equipment adopts a two-box design, which is divided into a high temperature zone and a low temperature zone. The test product is placed in the basket, and the basket is moved between the high temperature zone and the low temperature zone through the pneumatic drive system to realize the Thermal Shock test. The control system automatically adjusts the temperature according to the set program, monitors and records the temperature change in real time. Linear dispersion.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area 2. Set the High and Low Temperature Impact Temperature Point through the Touch Screen Controller 3. Start the equipment, and the pneumatic drive system will impact the test object up and down between the high temperature zone and the low temperature zone. 4. Real-time monitoring of temperature Linear dispersion and test process 5. Automatically record data after the test
The user needs to configure an air or power switch of corresponding capacity at the installation site, and this switch needs to be used independently for this equipment ○ power requirements: three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz, protective wire grounding resistance is less than 4Ω ○ The equipment does not include ventilated pipes, power supply (leakage switch), air source (Air Compressor), water source (bottled water or water pipe) and other external environment items ○ When the equipment is not working, the environment temperature should be maintained at 0 ° C~ + 45 ° C; when the environment temperature is lower than 0 ° C, the water remaining in the equipment should be drained clean to prevent the pipeline from freezing and damage ○ Test environmental conditions: the environment temperature around the machine is maintained between + 25~ + 30 ℃, relative humidity ≤ 85%, air pressure 86kPa~ 106kPa normal atmospheric pressure
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
