$ 16630.00Ex works
Using a two-box mobile Impact structure, the air pressure drives the test object to move up and down, the Thermal Shock mechanism moves within 10 seconds, and the temperature recovery time is within 5 minutes. Equipped with HFC environmentally friendly refrigerant and ultra-low temperature freezing system, the cooling is fast and efficient.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042379
Service :The delivery and service By NBCLab.Com

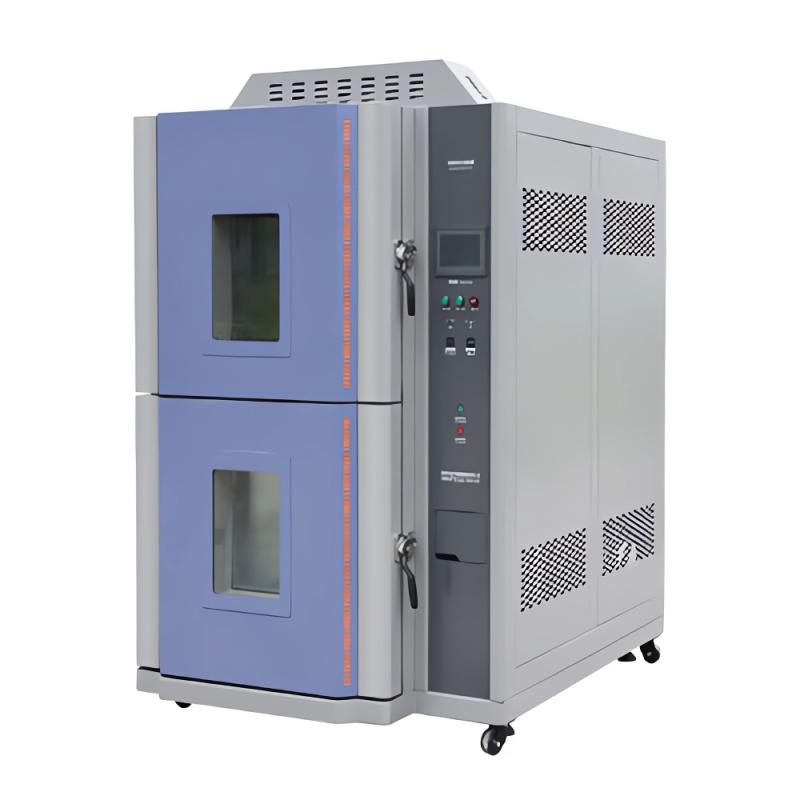

APKJ 2AP-CJ-80A Thermal Shock Test Chamber is a device used to test the performance of materials in extremely high temperature and extremely low temperature continuous environments. It adopts a two-box mobile design, which can quickly switch between high temperature and low temperature by air pressure driving the test object, which can simulate the chemical or physical changes caused by the thermal expansion and contraction of the material in a short time.
1. The two-box equipment is divided into high temperature zone and low temperature zone, and the test product is placed in the basket for dynamic Impact 2. Safe Air Pressure Driven Test Objects Up and Down Impact 3. Adopt color touch LCD Chinese/English microcomputer temperature controller 4. Paperless recording function, with real-time display of temperature impact test changes Linear dispersion diagram and recording dual functions 5. Thermal Shock Mechanism Moving Time Within 10 Seconds 6. Thermal Shock Temperature Recovery Time Within 5 Minutes 7. Adopt HFC environmentally friendly refrigerant, binary ultra-low temperature freezing system design, fast cooling and high efficiency 8. The box insulation material is made of rigid polyurethane foam, which has the advantages of energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, waterproof and moisture-proof, etc
The equipment adopts the principle of two-box mobile Thermal Shock, the test product is placed in the basket, and the test product is quickly moved between the high temperature zone and the low temperature zone by air pressure drive. High greenhouse stores heat, low greenhouse stores cold capacity, and the test product conducts impact testing in a continuous environment of extreme high temperature and extreme low temperature in an instant.
Electronics Components Plastics, Automation Components, Communication Components, Auto Parts, Metals, Chemical Materials, Plastics, Defense Industry, Aerospace, Military Industry, BGA, PCB, Electronic Chip IC, Semiconductor Ceramics and Polymer Materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area 2. Impact the test object up and down by air pressure driving 3. Impact exposure time ≥ 30min 4. Temperature recovery time ≤ 5min 5. The conversion temperature only needs to be ≤ 10s (the movement time of the hanging basket: within 3 seconds)
1. Require the user to configure an air or power switch of corresponding capacity at the installation site, and this switch needs to be used independently for this equipment 2. Power requirements: three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency allowable fluctuation range (50 +/- 0.5) Hz 3. The grounding resistance of the protective wire is less than 4Ω 4. Test environmental conditions: the environment temperature around the machine is maintained between + 25~ + 30 ℃, relative humidity ≤ 85%, air pressure 86kPa~ 106kPa normal atmospheric pressure When the equipment is not working, the temperature of the environment should be kept within 0 ℃~ + 45 ℃ 6. When the environment temperature is lower than 0 ° C, the water remaining in the equipment should be discharged to avoid freezing and damaging the pipeline
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
