$ 19562.00Ex works
Adopt two-box mobile structure, air pressure drive test object Impact, Thermal Shock mechanism moving time within 10 seconds, temperature recovery time within 5 minutes, in line with MIL and other international test standards.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042381
Service :The delivery and service By NBCLab.Com

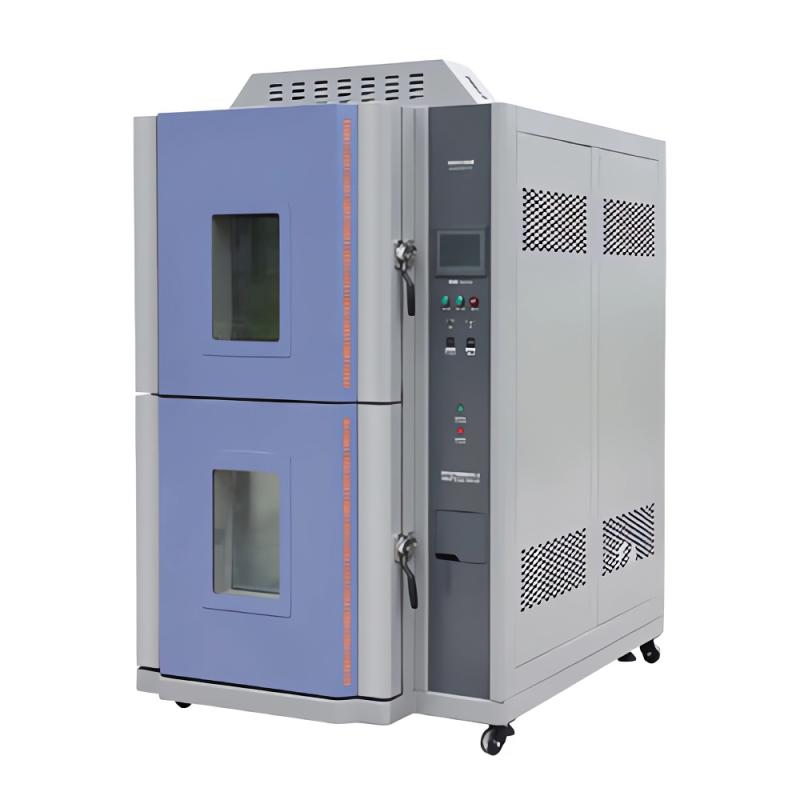

APKJ 2AP-CJ-80C Thermal Shock Test Chamber is a device used to test the resistance of materials in extremely high temperature and extremely low temperature continuous environments. It adopts a two-box mobile design, which is divided into high temperature zone and low temperature zone. The test products are impacted by dynamic movement of the basket, and are widely used in Electronics, auto parts, metal chemistry and other industries.
1. Two-box Mobile Thermal Shock, Safety Air Pressure Drives the Test Object Up and Down Impact. 2. Adopt imported color touch LCD Chinese/English microcomputer temperature controller made in Japan. 3. Paperless recording function, with real-time display of temperature impact test changes Linear dispersion diagram and recording dual functions. 4. Thermal Shock mechanism moving time within 10 seconds, can comply with MIL, LEC, JIS and other specifications. Thermal Shock temperature recovery time within 5 minutes, can meet the relevant test specifications. 6. Adopt HFC environmentally friendly refrigerant, binary ultra-low temperature freezing system design, fast cooling and high efficiency. 7. The box insulation material is rigid polyurethane foam, which has the advantages of energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, waterproof and moisture-proof.
The test chamber is divided into a high temperature zone and a low temperature zone, and the test product is placed in the basket. When impacted, the basket is driven by air pressure to move the test product into the high temperature zone or the low temperature zone for temperature Impact to achieve dynamic testing. The control system adopts a programmable controller to automatically adjust the temperature point according to the setting to ensure fast recovery and conversion.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area. 2. Set the high and low temperature Impact temperature point through the controller. 3. Start the equipment and drive the test object up and down Impact. 4. Monitor real-time temperature Linear dispersion and record data. 5. Automatic stop or manual shutdown after the test.
• The installation site needs to be equipped with an independent AC380V power supply, including three-phase four-wire + protective ground wire. • Voltage range: AC (380 +/- 10) V, frequency allowable fluctuation range: (50 +/- 0.5) Hz. • The grounding resistance of the protective wire is less than 4Ω. • When the equipment is not working, the environment temperature should be kept at 0 ° C~ + 45 ° C; when it is lower than 0 ° C, water should be discharged to prevent the pipeline from freezing. • Check safety protection devices before use, such as Compressor overpressure, overheating, overcurrent protection, etc. • Ensure that the gas source pressure is (5~ 7) kg/cm2, and the diameter of the gas source connecting pipe is φ 8mm. • Avoid operating in environments with relative humidity > 85% or abnormal air pressure. • Regularly maintain the refrigeration system and mechanical components to ensure normal operation.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
