$ 21140.00Ex works
Adopting a two-box mobile structure, the high temperature zone reaches 150 ° C and the low temperature zone reaches -40 ° C, the conversion time is within 10 seconds, and the recovery time is within 5 minutes. It is equipped with a touch screen controller and rigid polyurethane insulation material.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042385
Service :The delivery and service By NBCLab.Com

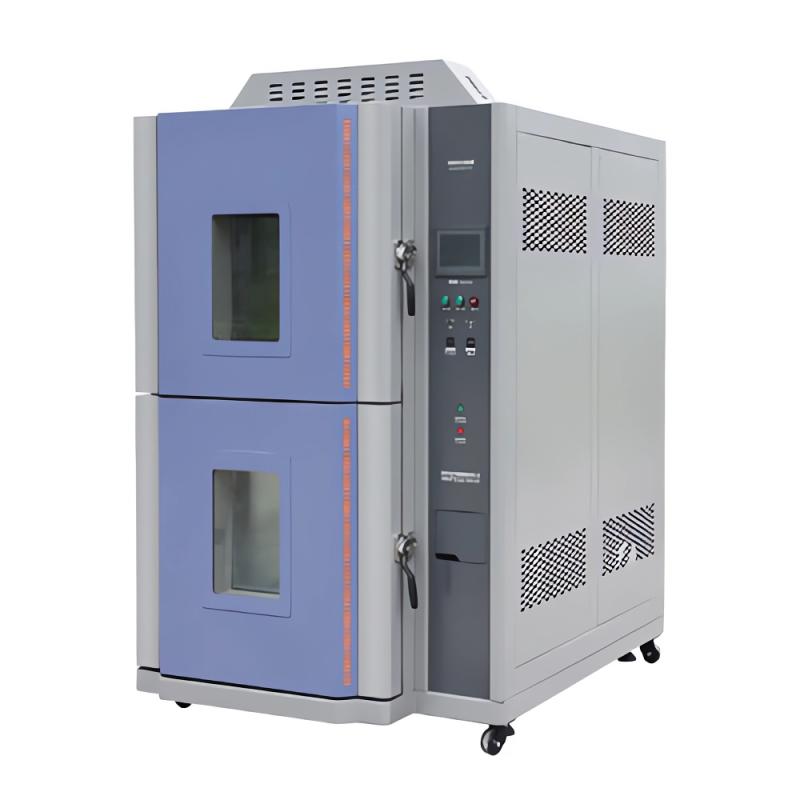

APKJ 2AP-CJ-150A Thermal Shock Test Chamber is a device used to test the performance of materials in extremely high temperature and extremely low temperature continuous environments. The device adopts a two-box mobile design, which is divided into high temperature zone and low temperature zone. The test product is placed in a basket and driven by air pressure for dynamic Impact, which can simulate the chemical or physical changes caused by the instantaneous thermal expansion and contraction of the material.
1. Adopt Aipei's self-developed 7-inch super-large touch AP-950 programmable temperature controller, full touch screen input, and can arbitrarily set different high and low temperature Impact temperature points 2. Two-box Mobile Thermal Shock, Safe Air Pressure Drives Test Objects Up and Down Impact 3. Paperless recording function, with real-time display of Linear dispersion diagram of temperature impact test changes and dual recording functions 4. Thermal Shock Mechanism Moving Time Within 10 Seconds, Temperature Recovery Time Within 5 Minutes 5. Adopt HFC environmentally friendly refrigerant, binary ultra-low temperature freezing system design, fast cooling and high efficiency 6. The box is made of rigid polyurethane foam thermal insulation material, which has the advantages of effective energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, waterproof and moisture-proof, etc
The equipment adopts a two-box structure, which is divided into high greenhouse and low greenhouse. The test product is placed in the basket, and the basket is moved between the high temperature zone and the low temperature zone through the pneumatic drive system to realize Thermal Shock. The control system automatically adjusts the temperature change according to the set program, and maintains the high and low temperature environment through the refrigeration system and the heating system to simulate the performance change of the material under extreme temperature conditions.
Electronics components, plastics, automation parts, communication components, auto parts, metals, chemical materials, plastics, defense industry, aerospace, military industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic, polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area 2. Set the required high and low temperature Impact temperature point and program through the touch screen controller 3. Start the equipment, and the pneumatic drive system will impact the test object up and down between the high temperature zone and the low temperature zone. 4. Equipment automatically executes the set Temperature Impact Program 5. Real-time monitoring of temperature Linear dispersion and test status 6. Automatically stop running after the test
The user is required to configure an air or power switch of corresponding capacity at the installation site, and this switch needs to be used independently for this equipment ○ power requirements: three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency allowable fluctuation range (50 +/- 0.5) Hz, protective wire grounding resistance less than 4Ω ○ When the equipment is not working, the temperature of the environment should be kept within 0 ° C~ + 45 ° C; when the environment temperature is lower than 0 ° C, the water remaining in the equipment should be drained clean ○ Test environmental conditions: the environment temperature around the machine is maintained between + 25~ + 30 ℃, relative humidity ≤ 85% ○ This plan does not include ventilated pipes, power supply (leakage switch), air source (Air Compressor), water source (bottled water or water pipe) and other equipment environment items installation ○ Note that the maximum power of the device is about 12.0KW, and the maximum current is 18A.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
