$ 23387.00Ex works
Using two-box mobile Impact structure, Thermal Shock mechanism moves within 10 seconds, temperature recovery time ≤ 5 minutes, equipped with rigid polyurethane foam insulation material, effective energy saving and waterproof and moisture proof.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042386
Service :The delivery and service By NBCLab.Com

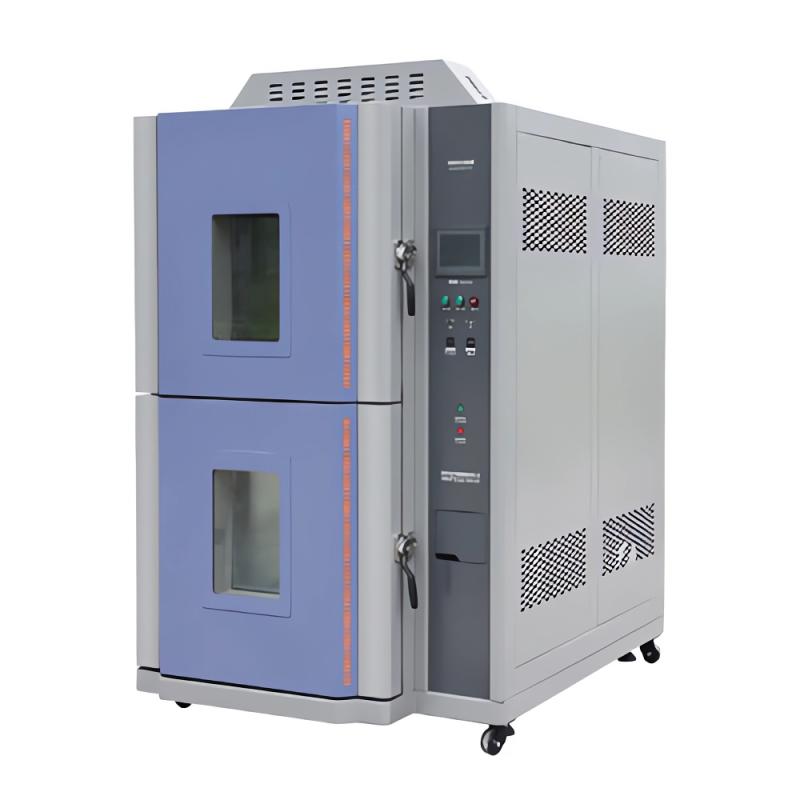

APKJ 2AP-CJ-150B Thermal Shock Test Chamber is a device used to test the tolerance of materials in a continuous environment of extremely high temperature and extremely low temperature. It adopts a two-box mobile design, separates the high temperature zone and the low temperature zone, and the test product is impacted by dynamic movement of the basket. It is widely used in Electronics, automotive parts, metal chemical materials and other industries to meet the rapid testing needs of materials in the fields of national defense, aerospace and other fields for physical and chemical changes in thermal expansion and contraction.
1. Two-box Mobile Thermal Shock, Safety Air Pressure Drives the Test Object Up and Down Impact. 2. Adopt self-developed 7-inch super-large touch AP-950 programmable temperature controller, full touch screen input, and can arbitrarily set high and low temperature Impact temperature points. 3. Paperless recording function, with real-time display of temperature impact test changes Linear dispersion diagram and recording dual functions. 4. Thermal Shock mechanism movement time within 10 seconds, temperature recovery time within 5 minutes, in line with MIL, LEC, JIS and other specifications. 5. Adopt HFC environmentally friendly refrigerant, binary ultra-low temperature freezing system design, fast cooling and high efficiency. 6. The box insulation material is rigid polyurethane foam, which has the advantages of energy saving, shock and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, waterproof and moisture-proof.
The test chamber is divided into two parts: high temperature zone and low temperature zone, and the test product is placed in the basket. Impact, the basket is driven by air pressure to move the test product into the high temperature zone or low temperature zone for temperature Impact to achieve dynamic testing. The control system automatically adjusts the temperature according to the setting program, and maintains the high and low temperature environment through the refrigeration system and the heating system to ensure that the thermal expansion and contraction test is completed in a short time.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area. 2. Set the high and low temperature Impact temperature point through the touch screen controller. 3. Start the equipment and drive the test object up and down Impact. 4. Linear dispersion and record data in real time. 5. Automatic stop or manual shutdown after the test.
• Installation site requires an independent AC380V power supply, including three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz, protective wire grounding resistance less than 4Ω. • When the equipment is not working, the environment temperature should be kept at 0 ° C~ + 45 ° C; when it is lower than 0 ° C, water should be discharged to prevent the pipeline from freezing and damage. • Check the safety protection device before use, such as Compressor overpressure, overheating, overcurrent protection, laboratory temperature is too high and too low protection, etc. • Ensure that the gas source pressure is (5~ 7) kg/cm2, the diameter of the gas source connection pipe is φ 8mm, and the gas source flow rate is 0.1m3/min. • Avoid operating under non-specified environment conditions, environment temperature 5 ℃~ 35 ℃, relative humidity ≤ 85%, air pressure 86kPa~ 106kPa. • The equipment does not contain external installation items such as ventilated pipes, power supplies, gas sources, and water sources, which need to be configured by the user.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
