$ 27881.00Ex works
Using a two-box mobile Impact structure, the air pressure drives the test object to move up and down, the Impact conversion time is within 10 seconds, and the temperature recovery time is within 5 minutes, meeting the requirements of international testing standards such as MIL and IEC.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042387
Service :The delivery and service By NBCLab.Com

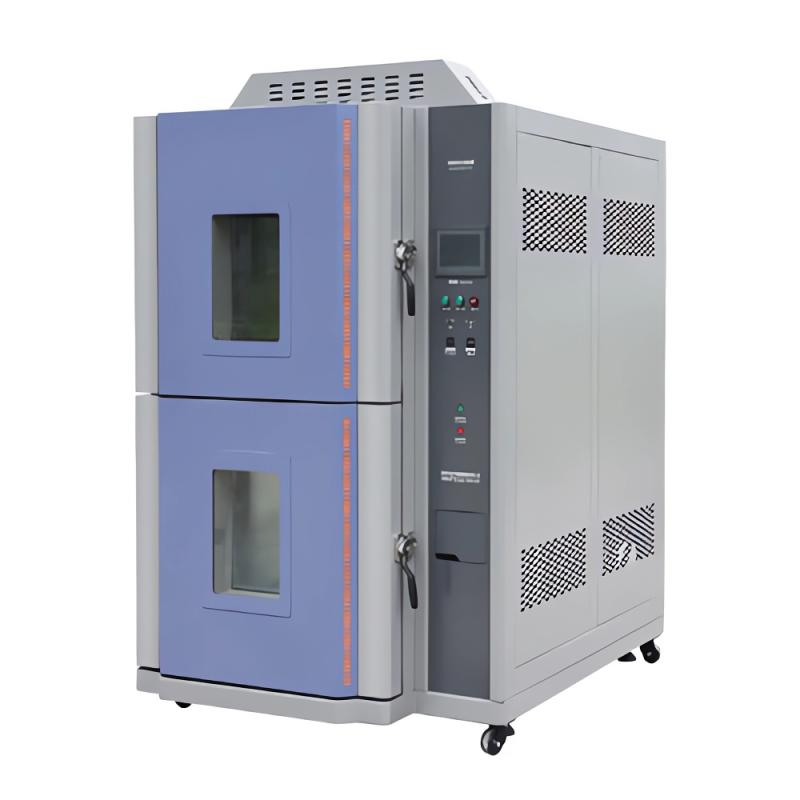

APKJ 2AP-CJ-150C Thermal Shock Test Chamber is a device used to test the resistance performance of materials in extremely high temperature and extremely low temperature continuous environments. It adopts a two-box mobile design, which is divided into high temperature zone and low temperature zone. The test products are dynamically moved by the basket for impact testing, which is widely used in Electronics, auto parts, metal chemical materials and other industries to evaluate the chemical or physical changes caused by thermal expansion and contraction of materials.
1. Using two-box mobile Thermal Shock, the safety air pressure drives the test object up and down Impact. 2. Equipped with Aipei's self-developed 7-inch super-large touch AP-950 programmable temperature controller, it supports touch screen input and arbitrary setting of high and low temperature Impact temperature points. 3. With temperature alarm display, real-time temperature Linear dispersion display and paperless recording function. 4. Thermal Shock mechanism movement time within 10 seconds, temperature recovery time within 5 minutes, in line with MIL, LEC, JIS and other specifications. 5. Adopt HFC environmentally friendly refrigerant and binary ultra-low temperature freezing system design, with fast cooling and high efficiency. 6. The box insulation material is rigid polyurethane foam, which has the advantages of energy saving, shock resistance and compression resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, and waterproof.
The test chamber is designed with two boxes to place the test product in the basket and dynamically move it between the high temperature zone and the low temperature zone for Impact. The control system automatically adjusts the temperature according to the setting program, and uses air pressure drive to achieve fast conversion. The Thermal Shock movement time does not exceed 10 seconds, and the temperature recovery time is within 5 minutes to simulate the tolerance of the material under instantaneous extreme temperature changes.
Electronics components plastic and other industries, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA, PCB base wrench, electronic chip IC, semiconductor ceramic and polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the test product in the hanging basket test area. 2. Set the required high and low temperature Impact temperature point through the touch screen controller. 3. Start the equipment, and the air pressure drives the test object up and down between the high temperature zone and the low temperature zone. Impact. 4. Monitor real-time temperature Linear dispersion and record data. 5. After the test, the equipment automatically stops or performs subsequent operations according to the program.
• Installation site requires an independent AC380V power supply, including three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz, protective wire grounding resistance less than 4Ω. • The equipment does not include ventilated pipes, power leakage switches, air Compressors, water sources and other external environment items, which need to be configured by the user. When the equipment is not working, the environment temperature should be kept at 0 ℃~ + 45 ℃, and when it is lower than 0 ℃, water should be discharged to prevent the pipeline from freezing and damage. • Check the safety protection device before use, such as Compressor overpressure, overheating, overcurrent protection, laboratory temperature is too high and too low protection, etc. • Ensure that the air source pressure is 5~ 7kg/cm ², the diameter of the connecting pipe is φ 8mm, and the air source flow is 0.1m ³/min. • Avoid operating equipment in environments with temperatures above + 35 ° C or relative humidity greater than 85%.
