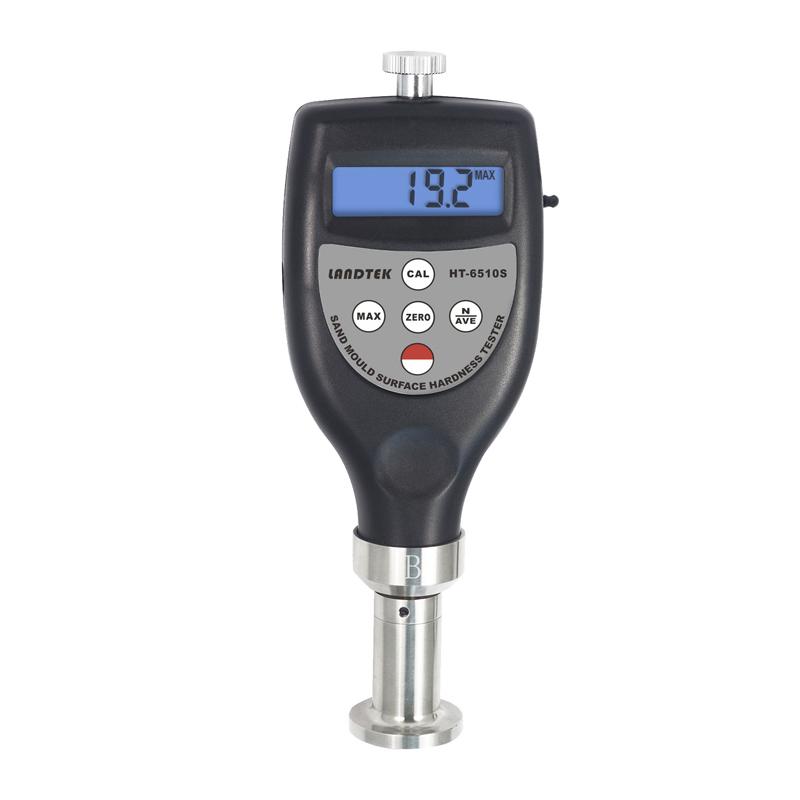

LANDTEK HT-6510S-C sand surface hardness Gauge C type high voltage molding hardness testing

Name: LANDTEK HT-6510S-C sand surface hardness Gauge C type high voltage molding hardness testing
Brand: LANDTEK
SKU: NB042405
Price: 324.0 USD
Availability: InStock

$ 324.00Ex works

Suitable for high voltage molding sand test, compression stroke 2.50mm, load 1500g, with average calculation and MAX Maximum latch function, support USB and Bluetooth data communication.

Model

HT-6510S-C

Get Quote

Category : Other Hardness Testers

Brand : LANDTEK

SKU : NB042405

Service :The delivery and service By NBCLab.Com

Overview

LANDTEK HT-6510S-C sand surface hardness gauge is a professional instrument for measuring the surface Hardness of wet mold sand/core, providing technical parameters for formulating molding processes. This model is suitable for high voltage molding sand surface hardness testing. Measurement unit is HC, which is conventionally expressed as Hardness value.

Features

1. Sand surface hardness testing for high voltage molding 2. With average calculation, MAX Maximum latch function 3. Equipped with under-voltage alarm indication function 4. Support USB cable and Bluetooth data output, can communicate with PC 5. Adopt 4-bit 10mm LCD display 6. With automatic shutdown function

Principle

The surface hardness gauge calculates the surface Hardness based on the compression stroke and the load value by applying a specific load to the surface of the sand mold through the indenter. The HT-6510S-C model uses a ball R1.20 indenter for measurement at a load of 1500 g and a preload of 180 g. The results are expressed as HC Hardness values.

Applications

Sand surface hardness testing for high voltage molding

Steps

1. Install 2 AA batteries 2. Align the indenter with the surface of the sand mold to be tested 3. Pressure measurement 4. Read Hardness/Average/MAX Maximum on LCD 5. Data can be transferred via USB cable or Bluetooth connection to PC

Notice

The working environment temperature should be kept within the range of 0~ 40 ℃ The working environment humidity should be less than 80% RH • Pay attention to the low voltage prompt of the battery and replace the battery in time Measurement range should be between 10HC~ 90HC • Avoid use beyond the specified environment conditions

compression stroke
2.50mm
load
1500g
pressurized load
180g
Head shape and Size
Ball R1.20
Measurement unit
HC
display parameters
Hardness/Average/** Value
display
4-Position 10mm LCD
display Range
0HA(HB/HC)~100HA(HB/HC)
Measurement Range
10HA(HB/HC)~90HA(HB/HC)
Accuracy
≤±1HA(HB/HC)
resolution
0.1HA(HB/HC)
Low Voltage prompt
√
Automatic shutdown function
√
Operating environment
Temperature: 0~ 40℃ Humidity: < 80% RH
power supply
2 AA batteries
Dimension
176x65x27mm
weight
170G (without battery)
optional accessories
USB cable and software, Bluetooth adapter and software
