Overview

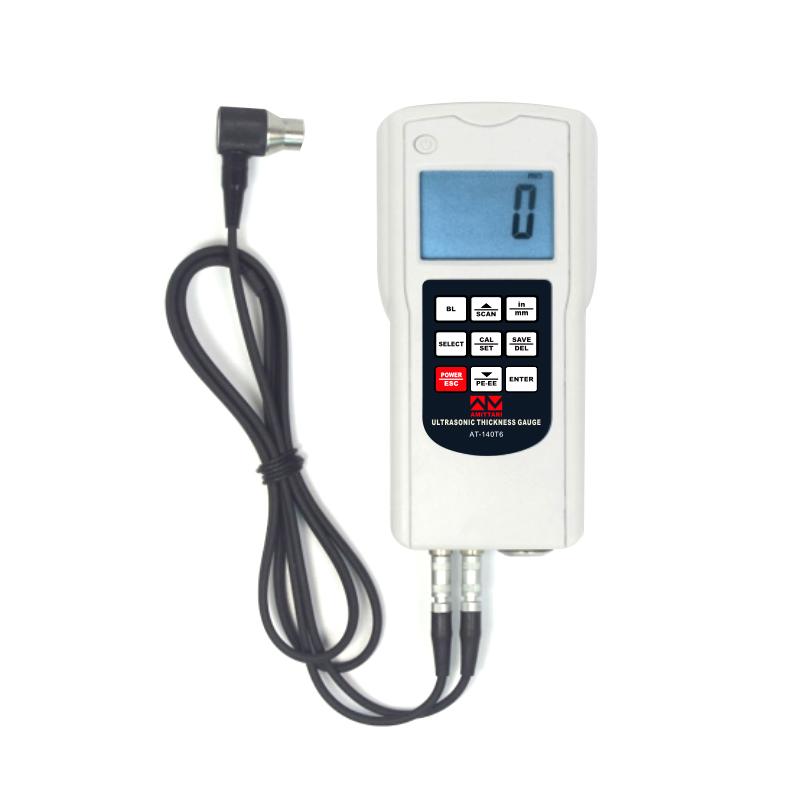

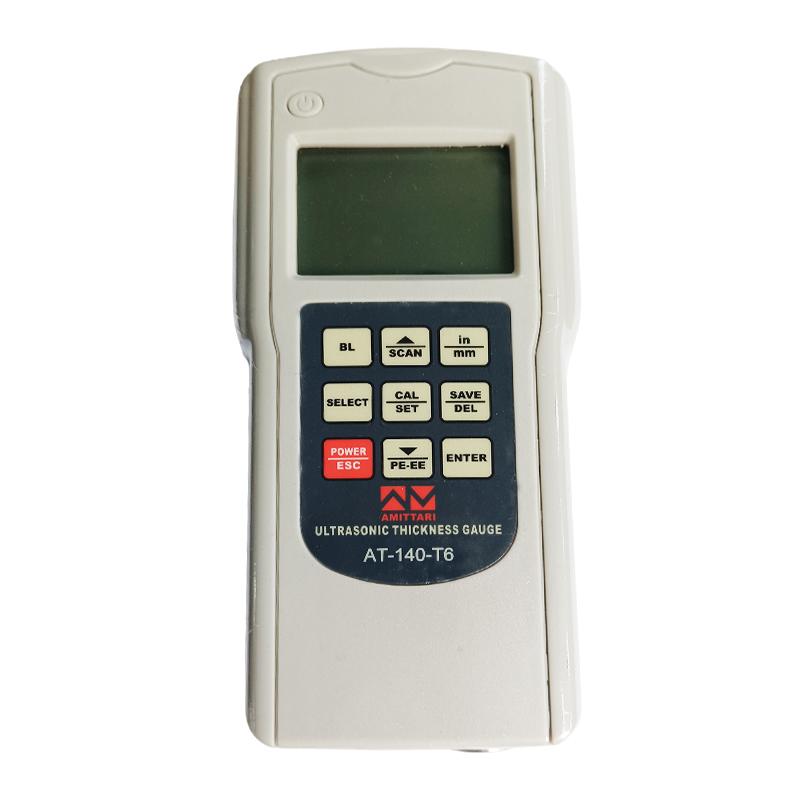

AMITTARI AT-140T6 Ultrasonic Thickness Gauge is suitable for film thickness measurement and corrosion measurement of boilers, oil storage tanks, pipes, pipes, plate forgings, flanges, hulls, decks, tracks, machined parts, etc. in the petrochemical industry, shipbuilding industry, automobile manufacturing industry, power plants, and machine manufacturing. For most materials that can transmit ultrasonic waves, this instrument can be used to measure thickness, such as metal, Pottery and porcelain, plastic, nylon, Glass, etc.
Features
1. Multiple modes: pulse echo mode (for flaw detection and pit detection) and echo echo mode (for paints elimination or Coating thickness measurement).
2. With strong transmission power and high broadband reception sensitivity, it can adapt to probes of different frequencies, and can be measured on severely corroded rough surfaces, lacquered surfaces, and even some gray cast iron.
3. With coupling status prompt function, automatic shutdown, manual shutdown function.
4. Using USB data cable output, data collection with PC.
5. In addition, there are Bluetooth data output options.
Principle
Digital Ultrasonic Thickness Gauge A short ultrasonic pulse is generated by the Sensor to pass through the inside of the material from the outer surface, reflect on the back or inner surface and return to the Sensor well Accurate measurement of the time required for this process to determine the Film thickness of a part or structure. The measured bi-directional crossing time is divided by 2 to calculate the down and reflection propagation path, which is then multiplied by the speed of sound in the material.
Applications
Petrochemical industry, shipbuilding, automobile manufacturing, power station, machinery manufacturing
Steps
1. Select Measurement mode: Single point mode or Scan mode.
2. Set the sound speed range: 1000~ 9999m/s.
3. Select the unit system: metric or imperial.
4. Perform measurements: 4 times per second in single point mode and 10 times per second in scan mode.
Notice
• Working environment temperature: 0 ℃ -40 ℃.
• Working relative humidity: < 85% RH.
• Power supply: Use 4 AA batteries.
• Ensure good coupling for accurate measurements.
