Overview

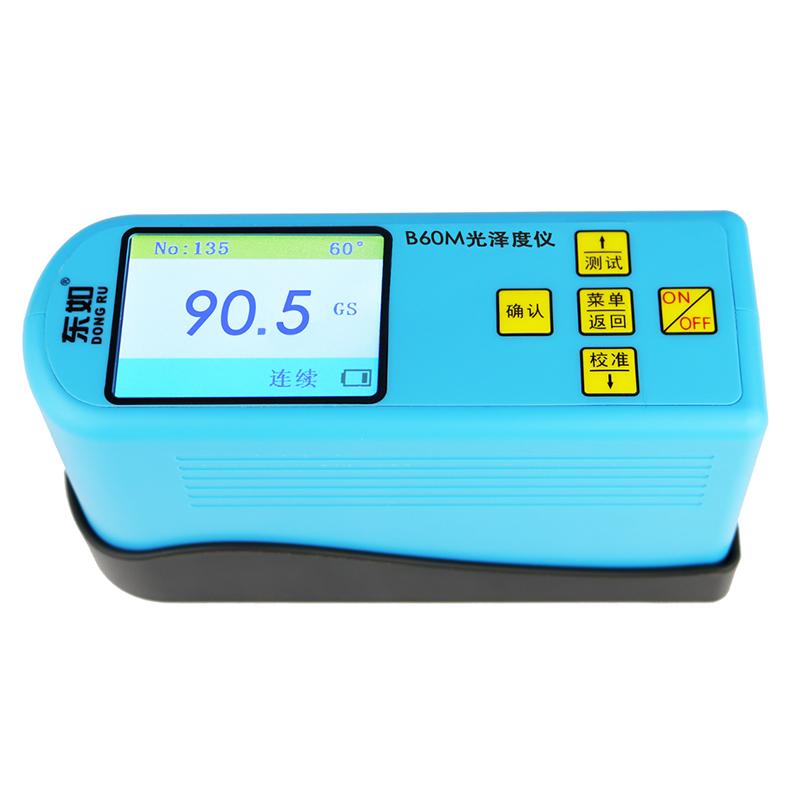

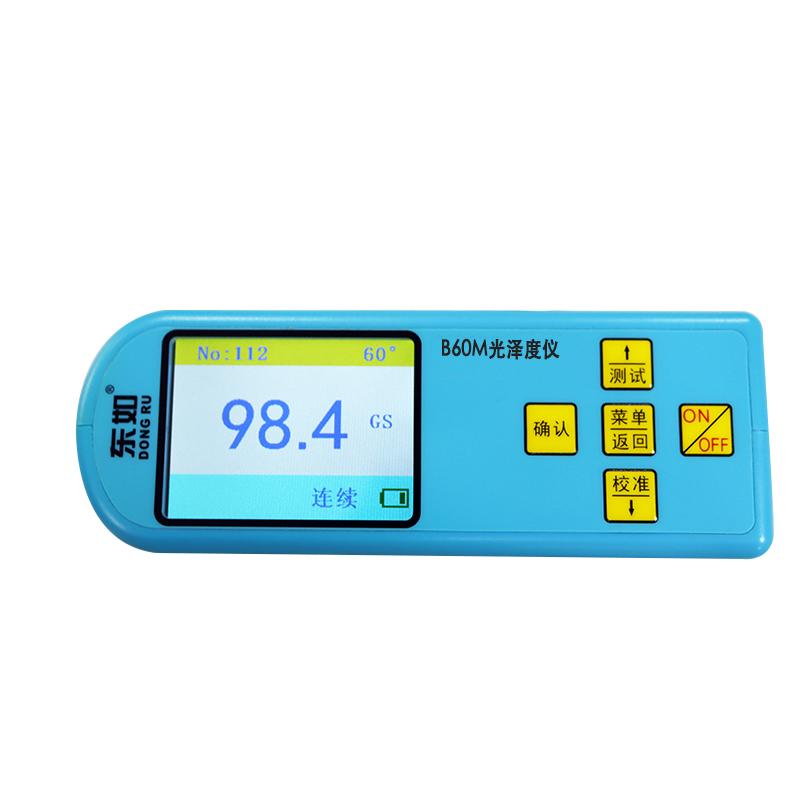

B60M color screen intelligent high-gloss glossmeter is a product independently developed by DONGRU and has independent intellectual property rights. It is designed and produced in accordance with international standard ISO2813, foreign standard ASTMD523, DIN67530 and national standard GB9754, GB9966, GB/T13891. All technologies meet the requirements of the first-level working machine in the JJG696-2002 "Mirror-oriented Glossiness Meter and Glossiness Board" appraisal specification. The glossmeter is intelligently operated, has a large screen display, and adopts a built-in lithium battery for long battery life. It has the characteristics of convenient use, stable performance and accurate measurement.
Features
1. Small size, light weight, real laptop
2.2.4 inch large color screen, high resolution, full viewing angle display
3. Glossiness measurement of metal coatings and other materials
4. With single measurement and automatic continuous test function, fool operation, real smart machine
5. With one-click calibrate, one-click restore factory settings, built-in adjustment function
6. With large-capacity data storage, it can store 10 sets of 2000 data in total
7. Built-in lithium battery rechargeable, large capacity 3000mAH, saving environmental protection
8. Adopt metal base, aesthetic ergonomic structure design, more durable
9. High Stability, High Accuracy, Automatic Shutdown, Long Standby Time
10. LED long-life light source
11. Chinese and English bilingual version
12. Sunshine mode (can also be used under strong light)
13. Unit conversion GU/GS
14. Wireless Bluetooth connection, real-time monitoring of mobile smart APP (customizable Bluetooth version)
Principle
This glossmeter irradiates the surface of the measured material through an LED long-life light source, uses 60 ° Measurement Angles to detect the reflected light intensity, converts the optical signal into an electrical signal and calculates the Glossiness value, achieving High Accuracy measurement in the range of 0-1000Gs.
Applications
Glossiness Detection of Large Range Highlight Materials such as Metal Polishing and Eletroplating Coating
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB9966、GB/T13891、JJG696-2002
Steps
1. Boot preparation
2. Measurement mode (single measurement or continuous measurement)
3. Perform one-click calibrating
4. Align the instrument measurement window to the surface of the material under test
5. Perform measurement operations
6. View measurement results
7. Automatic data storage
8. Shut down after use
Notice
• The operating environment temperature should be kept within the range of 0~ 40 ° C
• environment humidity should be less than 85% and no condensation
• Need to calibrate before measurement
• Avoid use in strong light interference environment (sunlight mode can be used)
• Regularly check the battery level to ensure normal use
• Keep the measurement window clean to ensure Measurement accuracy
• Pay attention to group management when storing data
