Overview

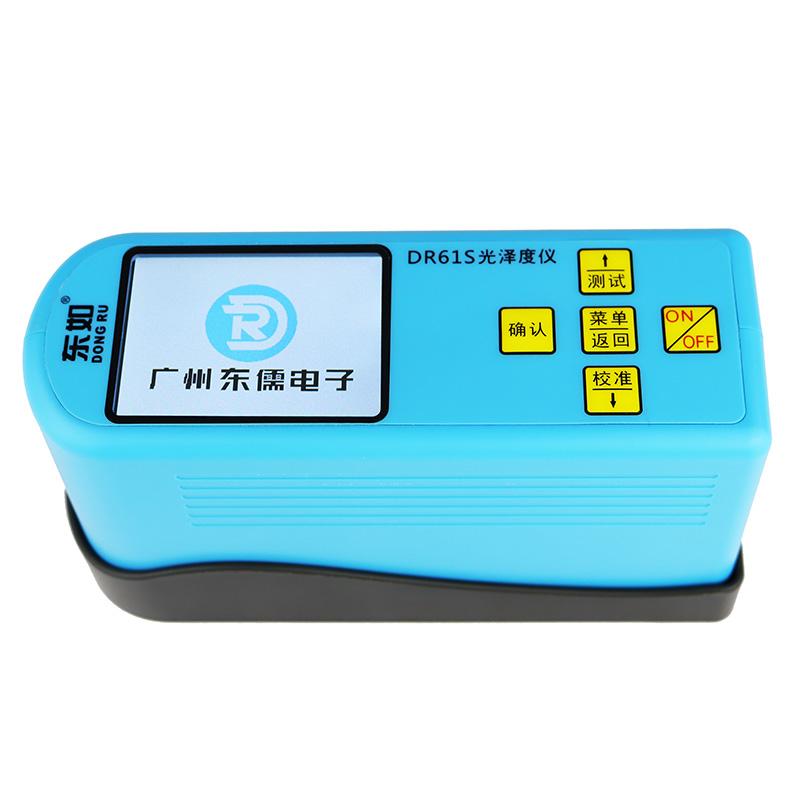

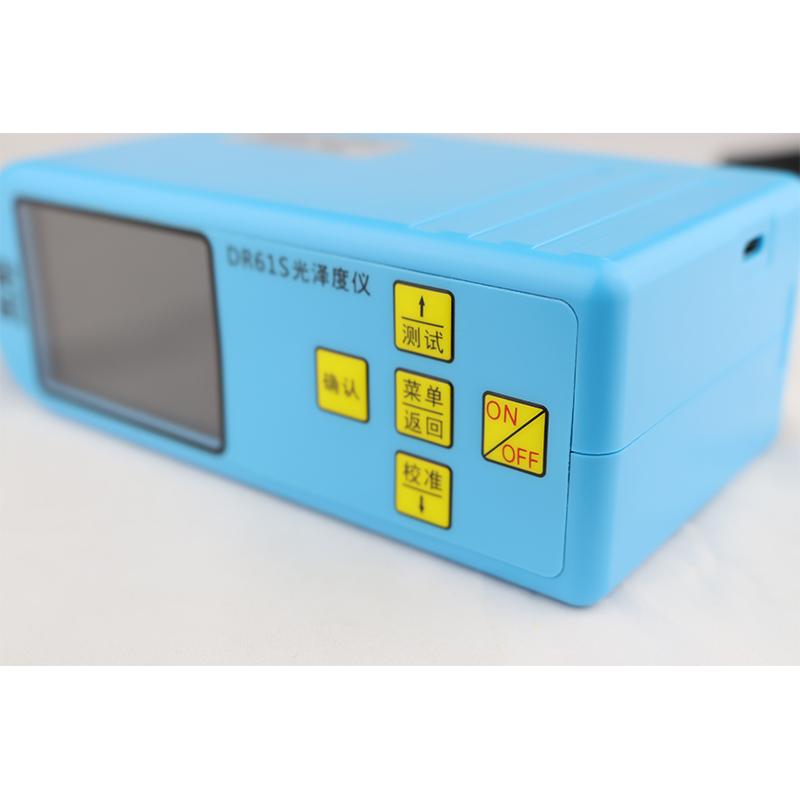

DR61S color screen intelligent glossmeter is a product independently developed by DONGRU and has independent intellectual property rights. It is designed and produced in accordance with international standards ISO2813, foreign standards ASTMD523, DIN67530 and national standards GB9754, GB9966, GB/T13891. All technologies meet the requirements of the first-level working machine in the JJG696-2002 "Mirror-oriented Glossiness Meter and Glossiness Board" appraisal specification. The glossmeter is intelligently operated, has a large screen display, and adopts a built-in lithium battery for long battery life. It has the characteristics of convenient use, stable performance and accurate measurement.
Features
1. Small size, light weight, real laptop
2.2.4 inch large color screen, high resolution, full viewing angle display
3. With single measurement and automatic continuous test function, fool operation, real smart machine
4. With one-click calibrate, one-click restore factory settings, built-in adjustment function
5. With large-capacity data storage, it can store 10 sets of 2000 data in total
6. Built-in lithium battery rechargeable, large capacity 3000mAH, saving environmental protection
7. Adopt metal base, aesthetic ergonomic structure design, more durable
8. High Stability, High Accuracy, Automatic Shutdown, Long Standby Time
9. LED long-life light source
10. Chinese and English bilingual version
11. Sunshine mode (can also be used under strong light)
12. Unit conversion GU/GS
13. Wireless Bluetooth connection, real-time monitoring of mobile smart APP (customizable Bluetooth version)
Principle

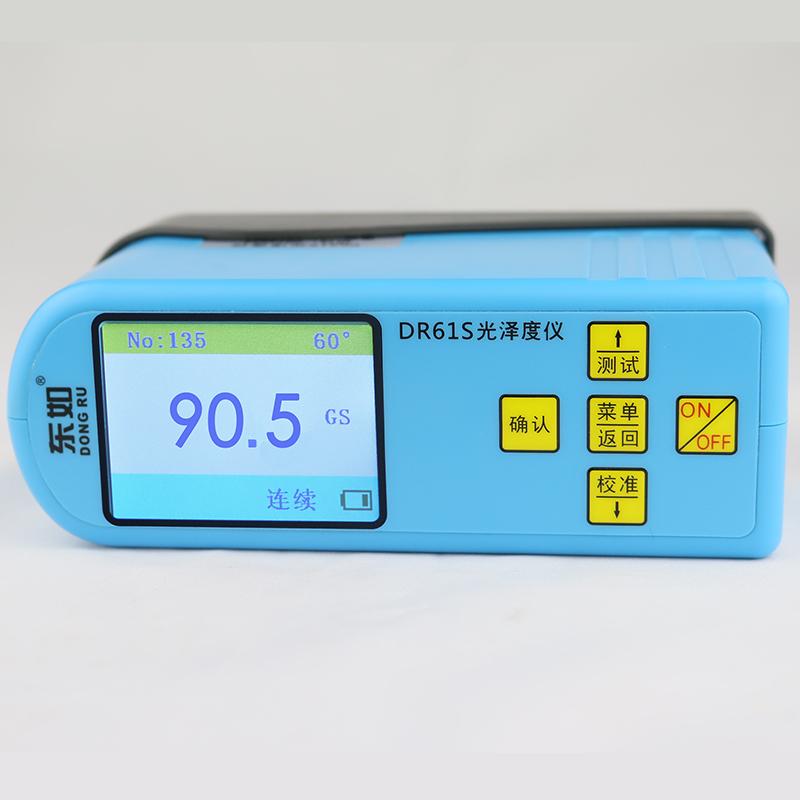

The glossmeter performs gloss measurement on the surface of the object through 60 ° Measurement Angles, irradiates the surface of the sample with an LED long-life light source, calculates the Glossiness value by detecting the intensity of the reflected light, supports single measurement and automatic continuous test mode, and the measurement results are displayed in Gs/Gu units.
Applications
Automobile, Home Appliances, Musical Instruments, Furniture, Construction, Decoration, Printing, Encasement and other industries
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB9966、GB/T13891、JJG696-2002
Steps
1. Boot preparation
2. Measurement mode (single measurement/continuous measurement)
3. Perform one-click calibrating

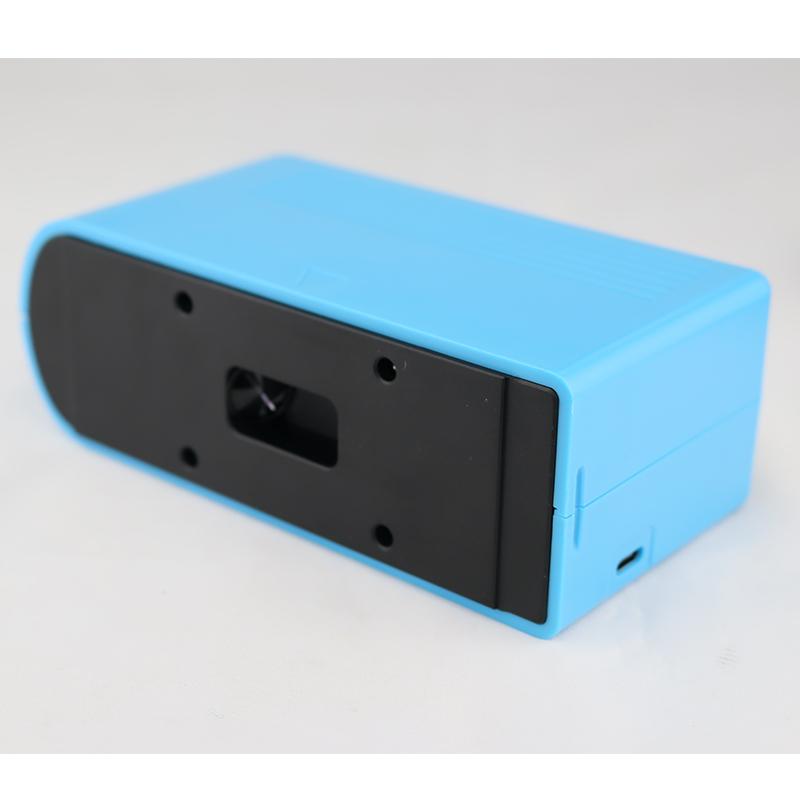

4. Align the instrument measurement window with the measured surface
5. Read measurement results
6. Automatic data storage (can store 10 sets of 2000 data in total)
7. Shut down or automatically shut down after use
Notice
• The operating environment temperature should be within the range of 0~ 40 ° C
• environment humidity should be less than 85% (no condensation)
• Need to calibrate before measurement to ensure accuracy
• Avoid use in a strong magnetic field environment
• Regular charging to maintain battery performance
Keep the measurement window clean
• Bluetooth function requires a customized version to be used.
