Overview

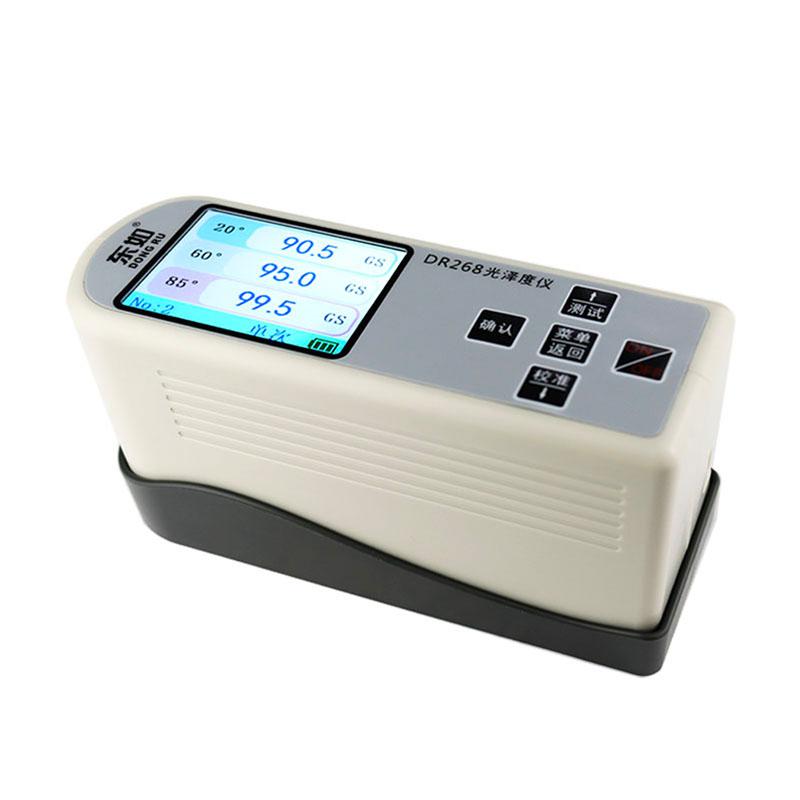

DR268 intelligent three-angle glossmeter is a product independently developed by DONGRU and has independent intellectual property rights. It is designed and produced in accordance with international standards ISO2813, DIN67530 and national standards GB9754, GB9966, GB/T13891. All technologies meet the requirements of the first-level working machine in the JJG696-2002 "Mirror-oriented Glossiness Meter and Glossiness Board" appraisal specification. The glossmeter operates intelligently, has a large screen display, and adopts a built-in lithium battery for long battery life. It has the characteristics of convenient use, stable performance and accurate measurement.
Features
1. Small size, light weight, real laptop
2.2.4 inch large color screen, high resolution, full viewing angle display
3. With single measurement and automatic continuous test function, fool operation, real smart machine
4. With one-click calibrate, one-click restore factory settings, built-in adjustment function
5. With large-capacity data storage, it can store 10 sets of 2000 data in total
6. Built-in lithium battery rechargeable, large capacity 3000mAH, saving environmental protection
7. Adopt aluminum alloy metal base, aesthetic ergonomic structure design, more durable
8. High Stability, High Accuracy, Automatic Shutdown Function, Long Standby Time
9. LED long-life light source
10. Three Measurement Angles (20 °, 60 °, 85 °), can be measured simultaneously
11. Chinese and English bilingual version
12. Sunshine mode (can also be used under strong light)
13. Unit conversion GU/GS
14. Wireless Bluetooth connection, real-time monitoring of mobile smart APP (customizable Bluetooth version)
Principle
Glossiness is assessed by measuring the reflection ability of an object's surface to rays of light. The instrument uses an LED long-life light source to illuminate the measured surface, and simultaneously measures the reflected light intensity at three different angles (20 °, 60 °, 85 °), converting the measurement results into Glossiness values Gs/Gu unit display.
Applications
Leather, plastic, paint, automotive, ceramic tile, automotive interior, architectural coatings, wood paint
Standards
ISO2813、DIN67530、GB9754、GB9966、GB/T13891、JJG696-2002
Steps
1. Boot preparation: ensure that the battery is sufficient and the instrument is in normal working condition
2. Measurement mode: Select single measurement or automatic continuous test mode as needed
3. Adjustment of calibrating instrument: Use one key to ensure measurement accuracy

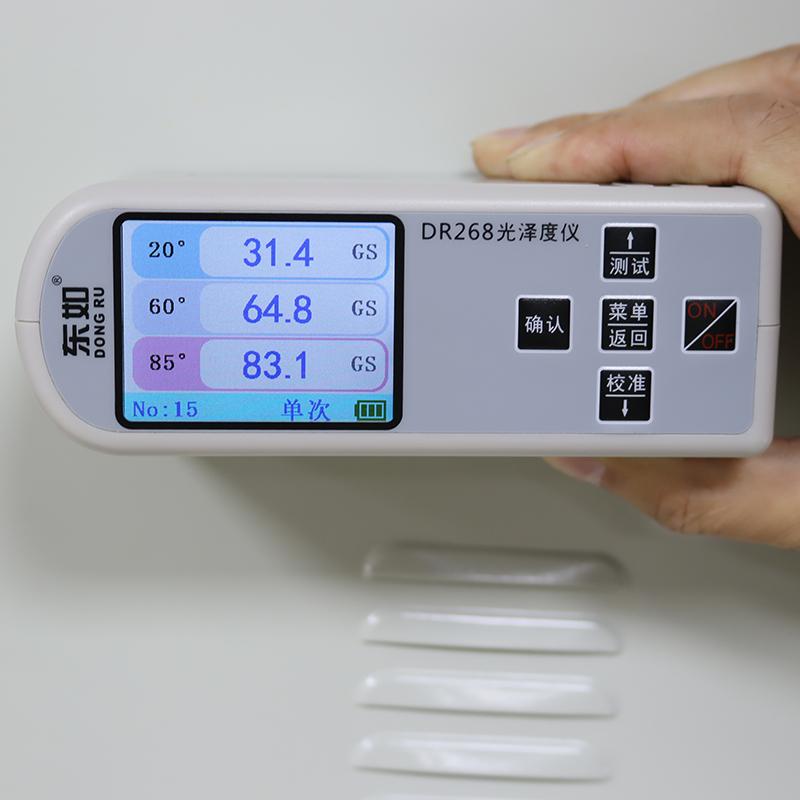

4. Place measurement: the instrument measurement window close to the measured surface
5. Read the data: the gloss measurement results of three angles are displayed on the screen
6. Data storage: automatic storage of measurement data, can store 10 groups of 2000 data
7. Data transmission: real-time monitoring of mobile apps connected through Bluetooth (Bluetooth version)
Notice
• Make sure the instrument is calibrated before use
• When measuring, the instrument measurement window should be close to the measured surface
• Avoid use in environments with temperatures below 0 ° C or above 40 ° C
• Environment humidity should be less than 85% to avoid condensation
• Charge regularly to keep the battery fully charged
• Please use a soft dry cloth when cleaning the instrument
• Avoid strong vibrations and impact on instruments
