Overview

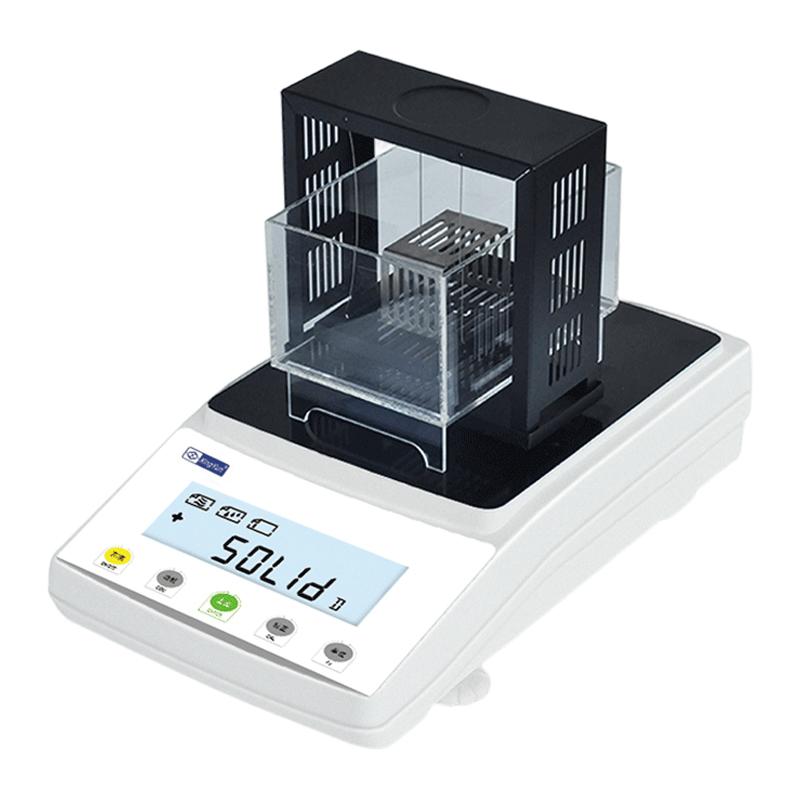

XINGYUN JA203M-G gold density scale is a precision instrument specially used to test the density of solid, liquid, powder and Water Absorbency samples. The product adopts color plastic or cast aluminum shell, equipped with LCD liquid crystal display, supports full scale peeling, overload alarm and level indication functions, and can choose communication serial port, printer or windshield and other accessories.
Features
1. Color plastic shell or cast aluminum shell, sturdy and durable
2. LCD liquid crystal display, clear and intuitive
3. Full range peeling function, easy to operate
4. Overload alarm protection, safe to use
5. Built-in level indicator to ensure accurate measurement
6. Optional communication serial port, printer, windshield and other accessories
7. Built-in accurate calculation program, directly display sample density
8. Built-in multiple density references, support custom settings
Principle
The gold density scale automatically calculates and directly displays the sample density value through the built-in accurate calculation program, combined with the weighing system to measure the weight difference of the sample in air and water. The product supports a variety of density reference modes and can be customized according to needs.
Applications
Gold, Solid, Liquid, Powder, Water Absorbency Sample density test
Steps
1. Turn on the power button Power
2. Use the F, ENTER, CAL, 0 and other buttons to set the function
3. Place the sample in the pan for weighing
4. To test the weight in water, immerse the sample in water using a density rack
5. The instrument automatically calculates and displays the density value
6. Turn off the power after completing the test
Notice
• The operating environment temperature should be kept within the range of 5-35 ° C
• Avoid overload use and pay attention to overload alarm prompts
• Make sure the level indicator is level before use
• The calibrated 200g test weight is required
• Pay attention to prevent the sink from overflowing during liquid testing
• Windshield is optional, use when needed
• The product does not contain a battery and needs an external power supply.
