Overview

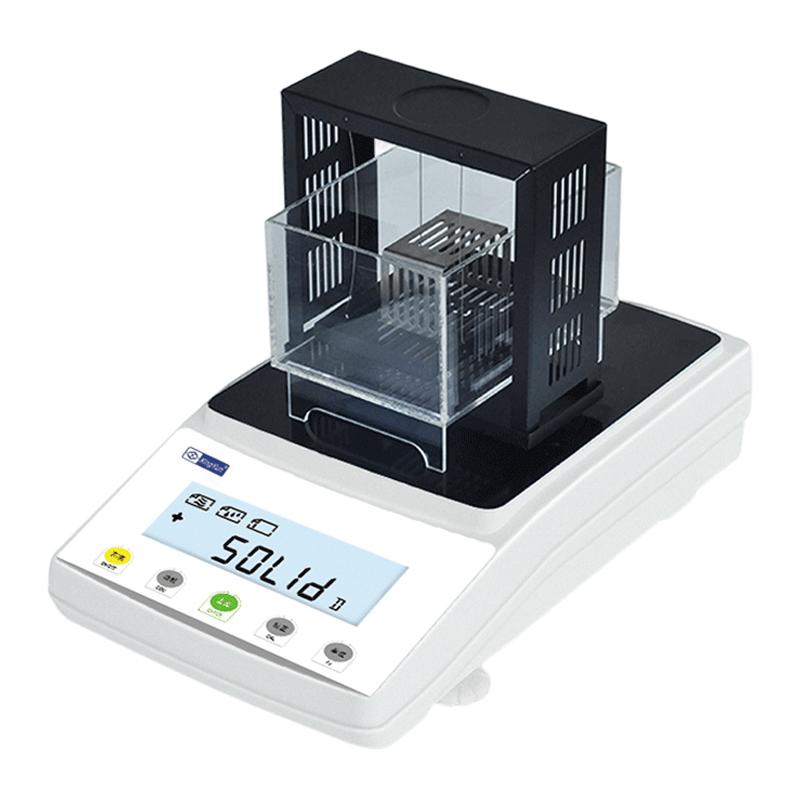

XINGYUN JA303M-A Water Absorbency density scale is a precision instrument used to test the density of solid, liquid, powder and Water Absorbency samples. It uses a color plastic or cast aluminum shell and is equipped with an LCD LCD display. It supports full-scale peeling, overload alarm and level indication functions. The built-in accurate calculation program can directly display the sample density value.
Features
1. Color plastic shell/cast aluminum shell optional, durable and beautiful
2. LCD liquid crystal display, clear and intuitive
3. Full range peeling function, easy to operate
4. Overload alarm protection, safe to use
5. Level indicator ensures measurement accuracy
6. Built-in accurate calculation program, directly display sample density
7. Built-in multiple density references, customizable settings
8. Optional density rack (solid/liquid), suitable for different sample testing
9. Optional accessories: communication serial port, printer, windshield
Principle
Water Absorbency density scale automatically calculates the density value of the sample by weighing the weight difference between the sample in air and water, combined with the built-in density calculation program. The instrument uses precision weighing Sensors and algorithms to ensure the accuracy and Repeatability of density measurement.
Applications
Solid density test, Liquid density test, Powder density test, Water Absorbency sample density test
Steps
1. Turn on the power button Power
2. Use the level indicator to adjust the instrument to a horizontal state
3. Press the CAL key to calibrate (use 200g test weight)
4. Place the sample on a pan and weigh it
5. Select the corresponding density rack (solid or liquid) according to the sample type
6. Press the F key to select the test mode
7. Press ENTER to start the test
8. Read the density value of the LCD display
9. Press the 0 key to peel the skin.
Notice
• The operating environment temperature should be kept within the range of 5-35 ° C
• Avoid overload use and pay attention to overload alarm prompts
Make sure the instrument is level before testing
• The specified 200g test weight should be used when calibrating
• Pay attention to prevent the sink from overflowing during liquid testing
• Water Absorbency Sample should be cleaned in time after testing
• Measurement accuracy can be improved by purchasing windshields in windy environments
