Overview

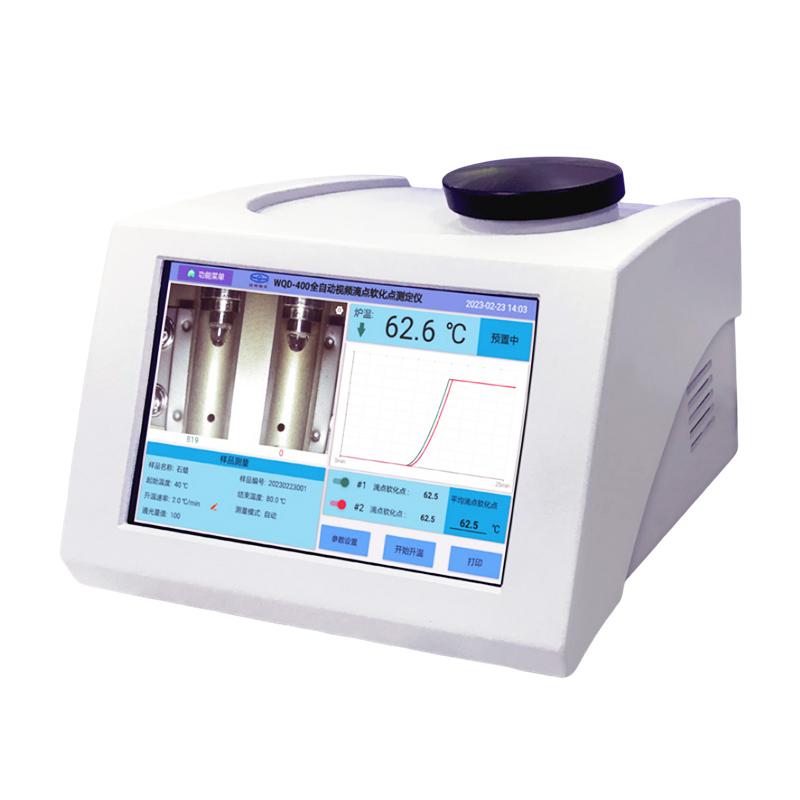

The fully automatic video drip point softening point meter WQD-400 is an INESA brand product that can measure the drip point and softening point of two samples at the same time. The instrument is equipped with a high definition camera to observe the measurement situation in real time, automatically capture the entire measurement process and support video playback, which is convenient for verifying the measurement results.
Features
1. Dual channel simultaneous measurement capability
2. Real-time observation and video shooting function of high definition camera
3. Video playback is convenient for result verification
4. 200 Pre-Storage Measuring methods
5.200 level 4 user management
6. Optional audit trail software compliant with FDA/21CFR Part 11
7. Support electronic signature function
8.10.1 inch IPS capacitive touch screen operation
9. Support multiple printer connections
10. Android operating system, can be connected to LIMS system
Principle
Based on the principle that the state of matter changes with temperature, the deformation characteristics of matter in the process of heating are automatically measured through the automatic interpretation technology of deformation images.
Applications
Resin detection
Standards
ASTM D3461, ASTM D3104, ASTM D3954, ASTM D6090, Chinese Pharmacopoeia
Steps
1. Select Automatic or Visual Measuring method
2. Set the heating rate within the range of 0.1 ℃/min-20 ℃/min
3. Real-time observation of measurement process through high definition camera
4. The instrument automatically shoots and records measurement video
5. Playback video verification measurement results
Notice
• Optional upgraded audit tracking software that meets the relevant requirements of National Pharmacopoeia, GMP, GLP and FDA/21CFR Part 11
• Printer is an option, you can choose a micro printer (dot matrix, thermal) or a WIFI printer
• The instrument supports 100~ 240V wide voltage input, power 150w
• When operating, pay attention to the instrument size of 320mm x 295mm x 190mm, Net weight 3.7kg
