Overview

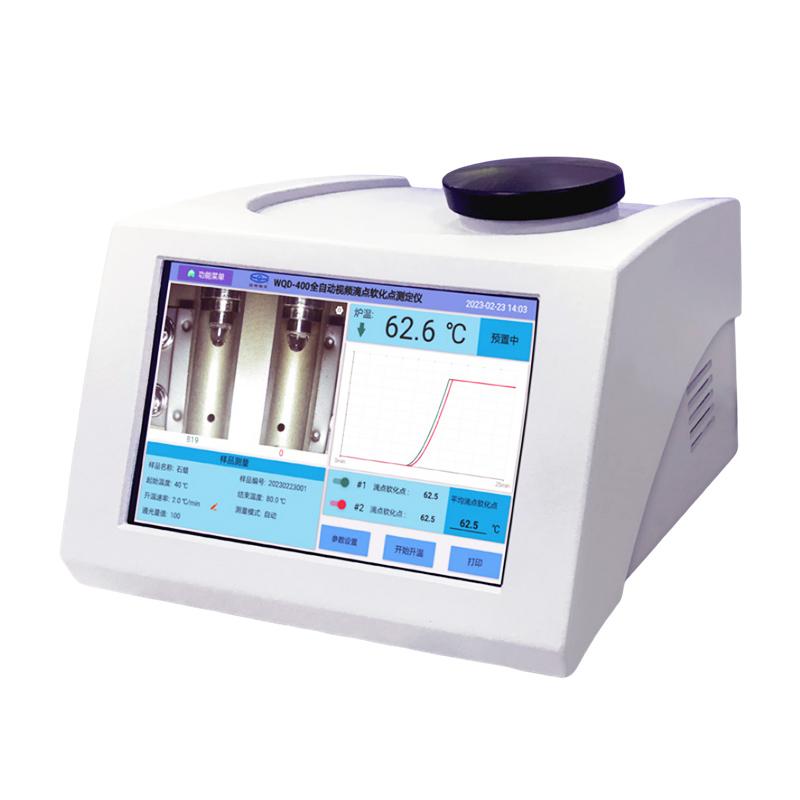

Fully automatic video drip point softening point instrument WQD-360 can simultaneously measure the drip point and softening point of two samples, configure a high definition camera to observe the measurement situation in real time, automatically shoot the entire measurement process and support video playback, which is convenient for verifying the measurement results.
Features
1. Simultaneously measure the drip point and softening point of two samples; 2. Configure the high definition camera for real-time observation and measurement; 3. Automatic shooting and playback of video verification results; 4. Temperature range RT +~ 360 ℃; 5. Support automatic and visual Measuring method; 6. Processing capacity is 2 channels; 7. Pre-store 100 Measuring methods; 8. Temperature resolution 0.1 ℃; 9. Heating rate 0.1 ℃/min -20 ℃/min optional continuously; 10. Android operating system, can be connected to LIMS system; 11. Data storage space 64G; 12. 10.1 inch IPS capacitive touch screen display; 13. Communication interface including RS232 and USB; 14. Power supply voltage 100~ 240V, 50/60Hz, 150w; 15. Instrument size 320mm x 295mm x 190mm, Net weight 3.7kg.
Principle
The instrument observes the sample measurement process in real time through the high definition camera, automatically shoots video and plays back, and combines the precise temperature control system to measure the drip point and softening point at the set heating rate.
Standards
ASTM D3461, ASTM D3104, ASTM D3954, ASTM D6090, Chinese Pharmacopoeia
Notice
• The printer is optional, and the micro printer (needle type, thermal sensor) is optional; • The WQD-400 model can be purchased with an upgraded audit tracking software, which meets the requirements of the National Pharmacopoeia, GMP, GLP and FDA/21CFR Part 11.
