Overview

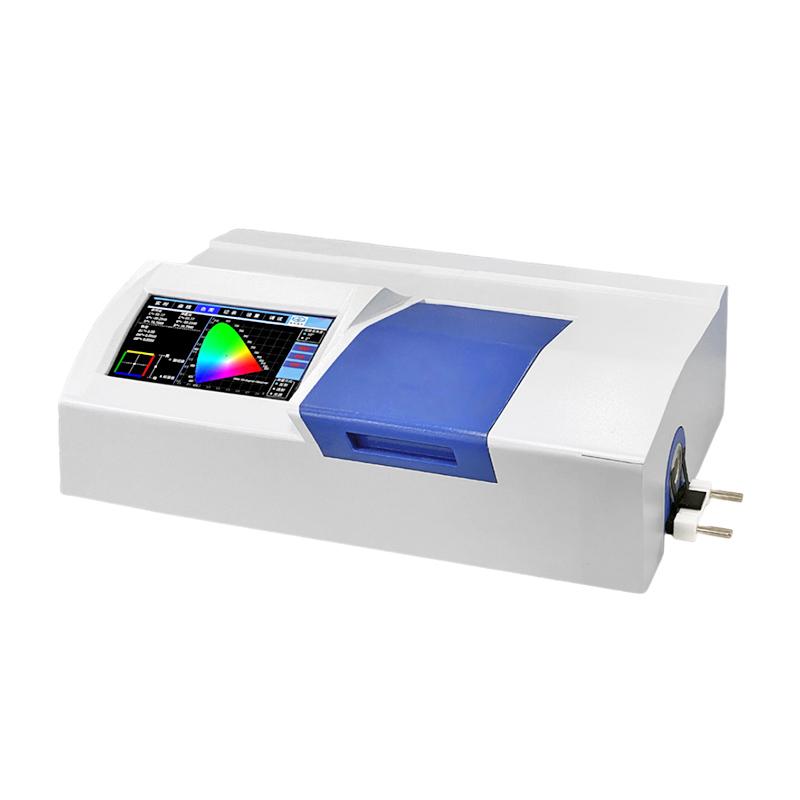

WSF-1S Colorimeter is a new product upgraded by INESA on the basis of WSF Colorimeter. It is a versatile and easy-to-operate colorimeter. It is suitable for measuring the reflection color and transmission color of various objects, and can test the whiteness, chroma and color difference of the two objects. It adopts the d/8 illumination reception method stipulated by CIE, which can display the reflection ratio and transmittance of objects in the visible light band (400nm~ 700nm), and gives the Light spectrum Linear dispersion of the reflection color of the object, which is convenient for color analysis.
Features
1. Upgrade the product, easy to operate; 2. Adopt the d/8 lighting reception method specified by CIE; 3. Display the reflection ratio and transmittance of the visible light band (400nm~ 700nm); 4. Provide the Light spectrum Linear dispersion of the object reflection color; 5.7 inch touch screen operation, Chinese interface; 6. Support a variety of software functions, including Light spectrum map/data, sample chromatic value, color difference value/map, color map, Color simulation, qualified/unqualified results, Color bias, etc.; 7. High Precision and Stability, Transmittance Precision +/- 1.5%, Repeatability δ u (Y) ≤ 0.5, Stability Delta Y ≤ 0.4; 8. Supports a variety of color systems, including X, Y, Z; Y, x, y; L *, a *, b *; L, a, b; L *, U *, V *, L *, C *, h *; Hunter Lab Munsell, MI, CMYK; Delta E (L * a * b *), Delta E (Lab), Delta E (L * u * v *); YI, Delta YI; Gantz whiteness, CIE recommended binary linear whiteness; Blu-ray whiteness W = B; Tabble W = 4B-3G.
Principle
The WSF-1S Colorimeter calculates the reflection ratio and transmittance ratio of the object in the visible light band (400nm~ 700nm) by measuring the reflection and transmission characteristics of the object in the visible light band (400nm~ 700nm), and generates the Light spectrum Linear dispersion. The instrument uses the D65, A, C and 10 °, 2 ° field of view color-matching functions of the GBT3978-2008 standard illumination under the Light spectrum condition.
Applications
Glass, Spinning & weaving, dyestuff, printing and dyeing, Coating, paints, papermaking, building materials, food, printing
