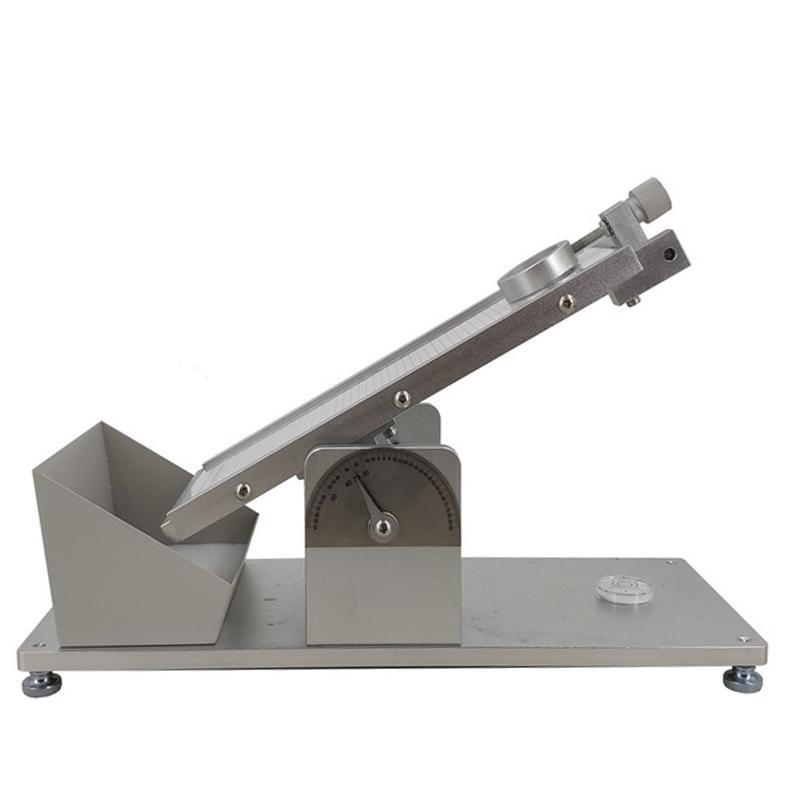

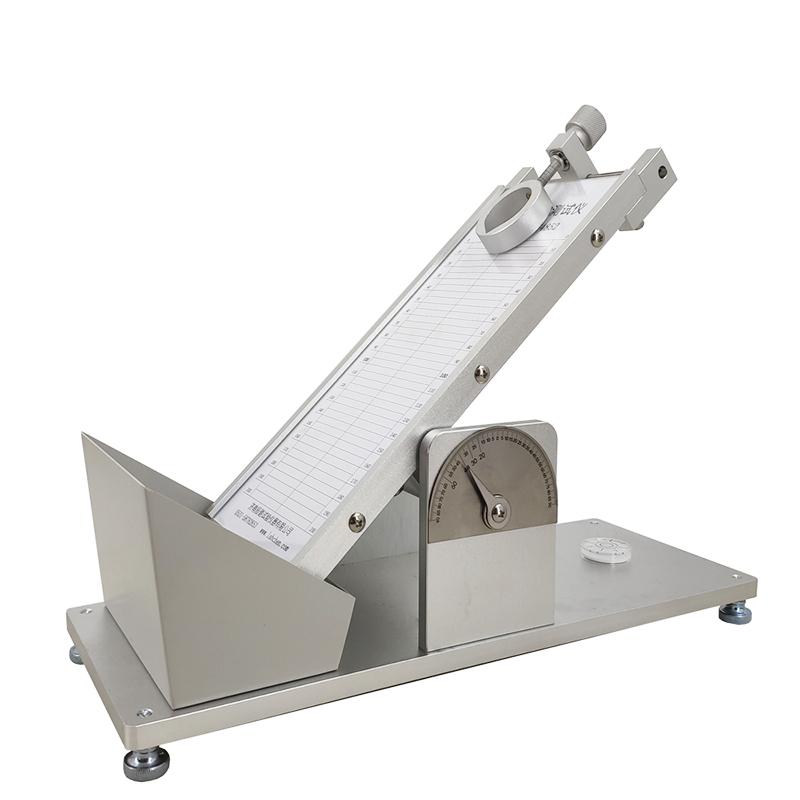

CHENCHI CNY-1 Initial viscosity Tester Adhesive tape adhesion detection by inclined surface rolling method

Name: CHENCHI CNY-1 Initial viscosity Tester Adhesive tape adhesion detection by inclined surface rolling method
Brand: labchen
SKU: NB042655
Price: 296.0 USD
Availability: InStock

$ 296.00Ex works

Adjustable tilt angle 0~ 40 °, the steel ball meets the standard of GB/T308 grade 40 or above, which is convenient for angle and position adjustment.

Model

CNY-1

Get Quote

Category : Tack Tester

Brand : labchen

SKU : NB042655

Service :The delivery and service By NBCLab.Com

Overview

CHENCHI CNY-1 Initial viscosity tester adopts the inclined surface rolling method to test the initial Tack of the sample by the adhesion of adhesive tape, label and other products to the steel ball when the steel ball and the Tack surface of the test sample are briefly contacted with a small pressure.

Features

1. Overall good Aluminum profile design, beautiful and durable 2. Innovative precise control angle adjustment device, angle adjustment is more convenient 3. Fine steel ball position adjustment knob, which is convenient for adjusting the front, rear, left and right positions of the steel ball 4. The steel ball is made of GCr15 bearing steel, and the accuracy level of the steel ball shape tolerance and surface roughness exceeds the level of 40 or more specified in GB/T308

Principle

The inclined surface rolling method is used to test the initial Tack of the sample by the adhesion of adhesive tape, label and other products to the steel ball when there is a short contact between the steel ball and the Tack surface of the test sample at a small pressure.

Standards

GB/T4852 "Initial Tack Test Method for Pressure Sensitive Tape - Rolling Ball Method"

Adjustable tilt angle
0~40°
countertop width
120mm
test area width
80mm
Standard steel ball
1/32 inch to 1 inch
Dimension
380 L *150 B *180 H mm
weight
5 kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
