Overview

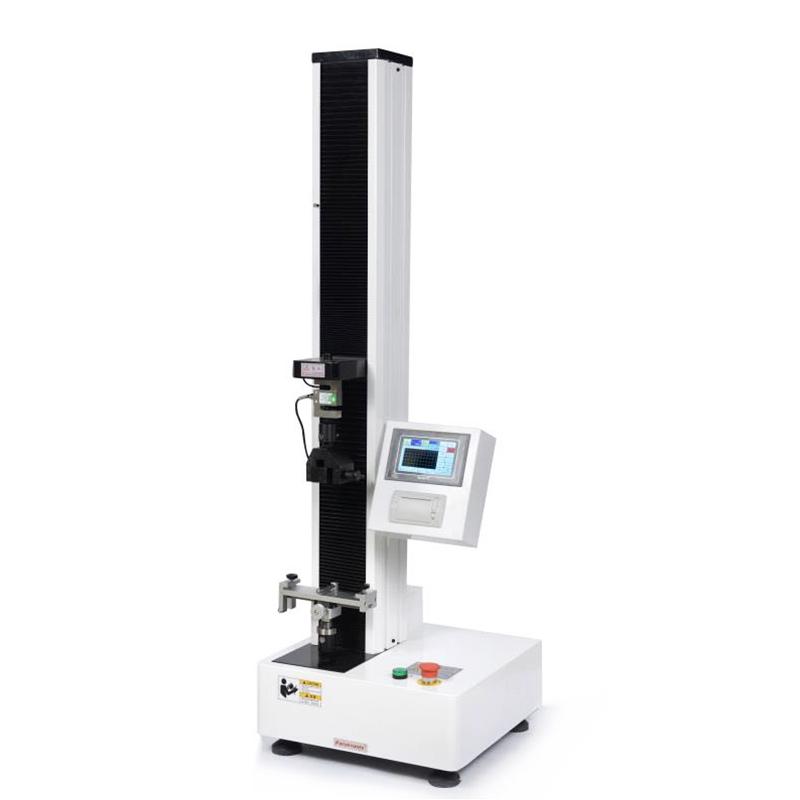

CHENCHI WDB-01 Peel strength tester is a test equipment specially designed for universities and research institutes. It has beautiful appearance, easy operation and stable and reliable performance. The testing machine can realize tensile strength, 180 ° Peel Strength, sealing strength and other tests. Through CHENCHI controller and servo motor drive system, it realizes pollution-free, low noise and high efficiency mechanical properties testing, with a wide speed range.
Features
1. Adopt five-inch color LCD touch screen operation, friendly interface
2. Measurement range 0-100N, accuracy +/- 1%
3. Equipped with stepper motor and synchronous belt drive system
4. Test speed range 1~ 500mm/min, stepless speed regulation
5. With multiple safety functions such as overload protection, leakage protection, and limit protection
6. Effective travel and stretching space up to 800mm, support customization
7. Compact structure, host size 500 * 420 * 1550mm, weight about 80Kg
Principle
The system controls the rotation of the servo motor through the CHENCHI controller. After being decelerated by the deceleration system, the beam is driven up or down through the precision screw pair to complete the tensile mechanical properties test of the sample. The design ensures High Accuracy and Stability of the test process.
Applications
Building materials, aerospace, machinery manufacturing, Wire and cable, rubber plastics, Spinning & weaving, home appliances and other industries
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Turn on the 220V 50Hz power supply and turn on the device
2. Set test parameters through a five-inch color LCD touch screen
3. Install the specimen in the tensile space
4. Select the desired test speed (1~ 500mm/min)
5. Start the test and observe real-time data such as test force and displacement
6. Record peak and other results after the test is completed
7. Power off the device
Notice
• Power supply voltage 220V 50Hz before use
• Pay attention to safety protection during operation to avoid overload
• Regularly check whether the equipment limit protection function is normal
• Keep the equipment clean to avoid dust affecting the accuracy
• Non-professionals should not disassemble or repair the equipment
