Overview

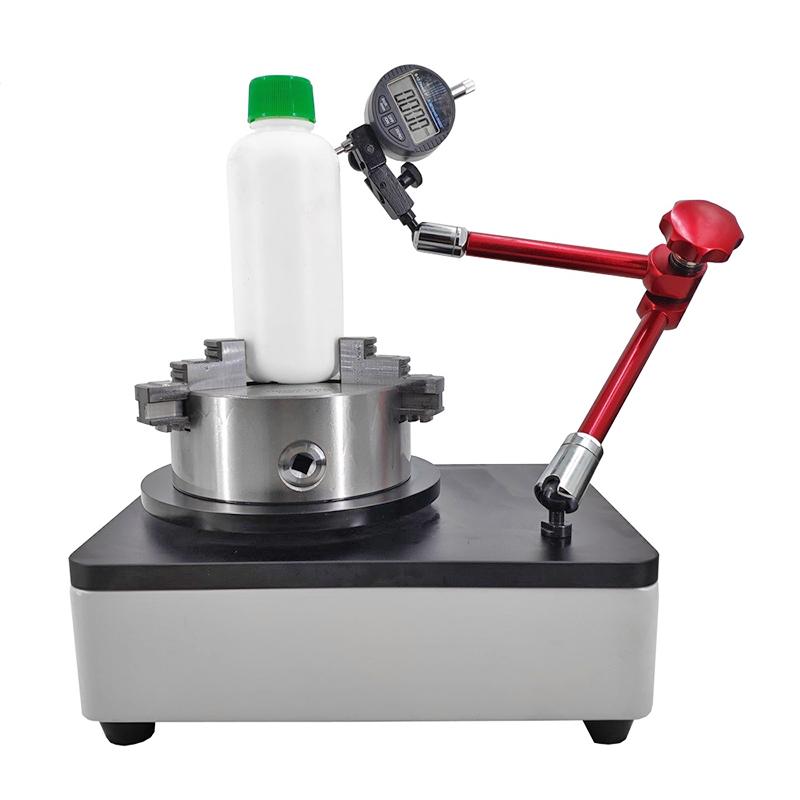

CHENCHI CZD-100 vertical deviation instrument is suitable for the vertical deviation test of ampoules, mineral water bottles, beer bottles and other round bottle bodies. This product conforms to national standards, has simple structure, wide application range, convenient and durable, high accuracy, and is a professional testing instrument for Encasement, food, daily chemical and other enterprises and inspection institutions.
Features
1. Simple structure, convenient and durable
2. Wide range of applications
3. High accuracy
4. Large clamping diameter range, support customization
5. Measurable height 350mm, support customization
6.Measurement meter range 0-12.7 mm, scale 0.001mm
7. Comprehensive measurement error ≤ 5 wires
Principle
The bottom of the bottle is fixed on the swirl/spin disc of the horizontal plate, so that the bottle mouth is in contact with the dial gauge, and the swirl/spin 360 ° reads the MAX Maximum and MIN Minimum, and 1/2 of the difference between the two is the vertical axis deviation value. The instrument uses the characteristics of high concentricity of the three/four-jaw self-centering chuck, and a set of high-degree-of-freedom brackets that can freely adjust the height and orientation, which can meet the testing of all kinds of glass bottles and plastic bottles.
Applications
Encasement deviation test of ampoules, mineral water bottles, beer bottles and other round bottles, Encasement, food, daily chemical and other enterprises and inspection institutions
Standards
YBB00052005、YBB00042005、YBB00332004、YBB00242004、YBB00402003、QB2357、QB/T1868
Steps
1. Fix the bottom of the bottle on the swirl/spin plate of the horizontal plate
Step 2 Make contact with the dial gauge
3. swirl/spin 360 ° read MAX Maximum and MIN Minimum
4. Calculate 1/2 of the difference between MAX Maximum and MIN Minimum is the vertical axis deviation value
Notice
Make sure the instrument is level before use
- The clamping diameter range is 3-55mm for positive claws and 55-145mm for reverse claws. Customization is required beyond the range.
- The measurable height is 350mm, and it needs to be customized beyond the range.
- Smooth swirling/spinning during measurement to avoid violent shaking
- Periodically calibrate measurement meters to ensure Measurement accuracy
