Overview

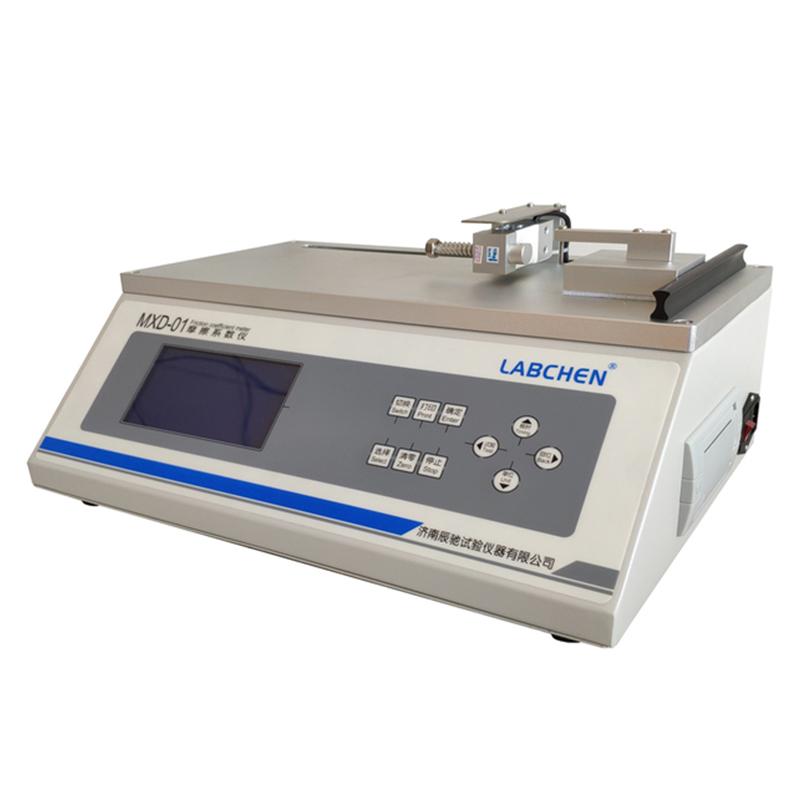

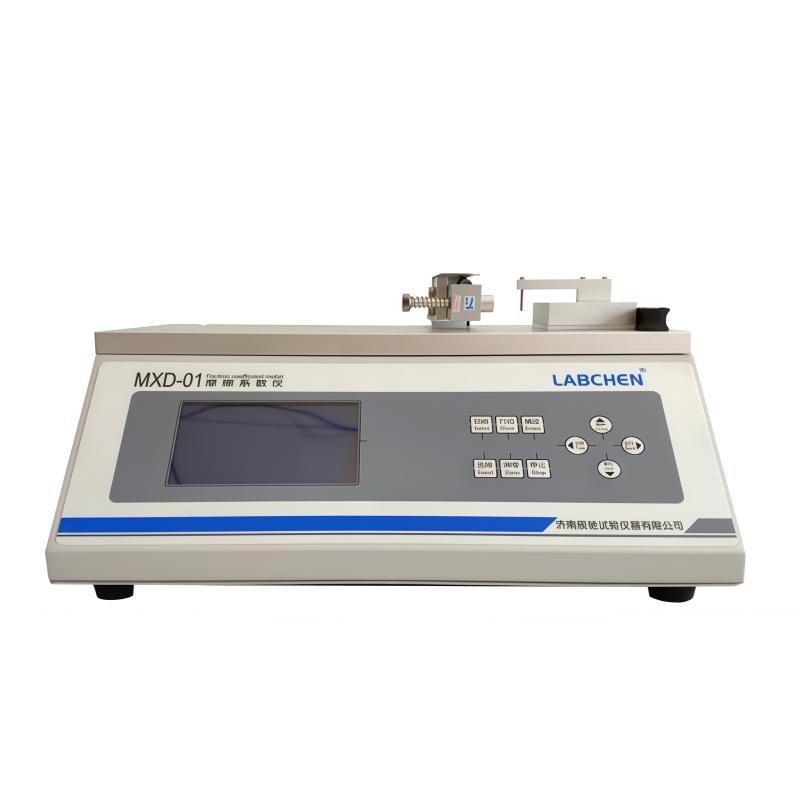

CHENCHI MXD-01 Friction coefficient meter is based on GB 10006, ASTM D1894 and other national standards. It is professionally suitable for measurement Plastic film and sheet, rubber, paper, Cardboard, woven bags, fabrics, metal composite belts, conveyor belts, wood, coatings and other materials. Coefficient of Friction and dynamic Coefficient of Friction when sliding. By measuring the smoothness of materials, you can control and adjust the mass production process index of materials to meet the requirements of product use.
Features

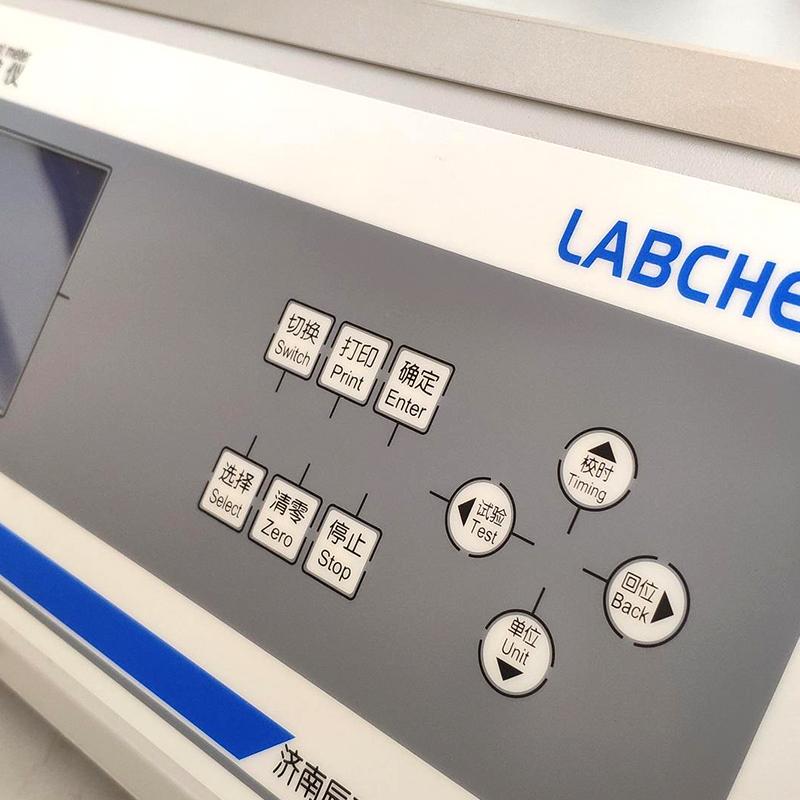

1. The equipment adopts microcomputer control, the test process is automated, and it is equipped with a menu-type operation interface, PVC control panel and LCD screen, which is convenient for users to conduct test operations and view data
2. System accessories are familiar with the manufacturer's components, stable and reliable performance, High Accuracy Force Sensor, to achieve the highest test accuracy: 0.001N
3. Five-inch LCD display results, parameters, test Linear dispersion
4. Embedded MAX Maximum, MIN Minimum, Average and other data statistical analysis functions
5. No mechanical knob, full digitalization system, digital correction and zero adjustment
6. Specially designed drive system for smooth operation and more accurate test results
7. The system can simultaneously measure the static Coefficient of Friction and the dynamic Coefficient of Friction

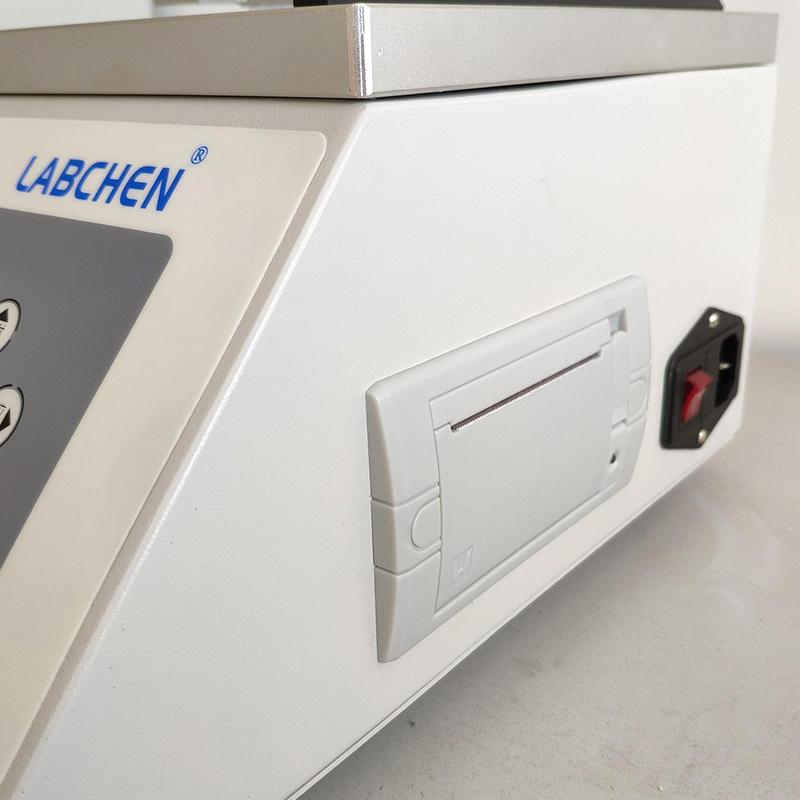

8. Equipped with a micro-printer to automatically print statistical analysis test reports for single or group samples
9. The instrument test table is made of aluminum alloy, which effectively reduces the influence of the iron table remanence on the system test error
10. In order to ensure the stability of the system, the instrument adopts a three-power supply mode, which effectively reduces the power supply interference between various components
11. The instrument has its own force value calibrating mode, which supports single-point and multi-point force value calibrating
Principle

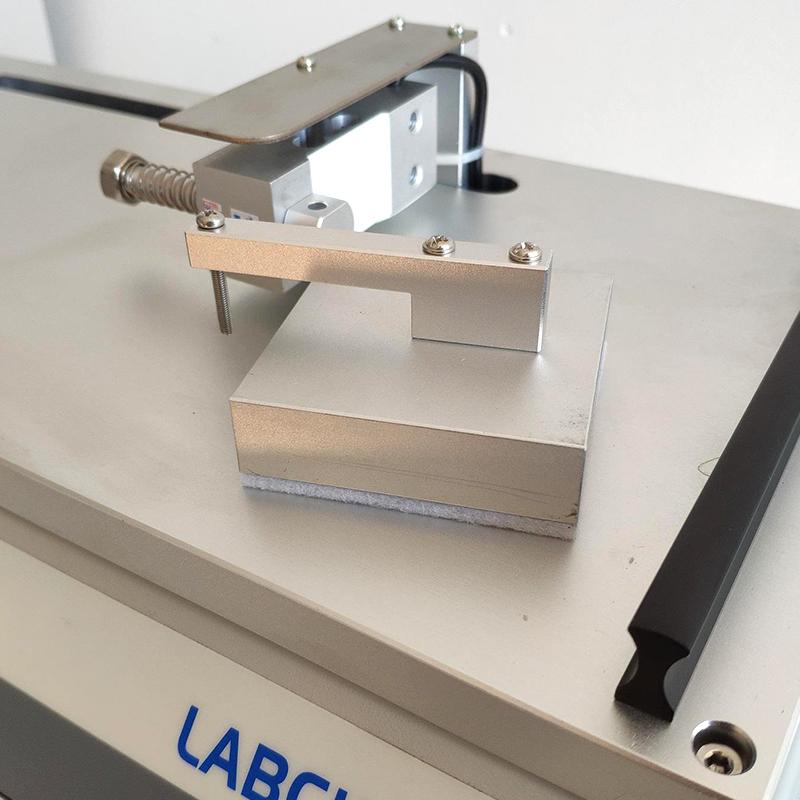

The High Accuracy Force Sensor measures the friction when the material slides, and the system can simultaneously measure the static Coefficient of Friction and the dynamic Coefficient of Friction of the sample.
Applications
Film, paper, Spinning & weaving products, non-woven fabrics, woven bags, rubber, aluminum foil, aluminum foil composite film, metal products, printing products
Standards
GB 10006、ASTM D1894
Steps
1. Connect power supply AC220V 50HZ
2. Set test parameters through the menu operation interface
3. Place the specimen on the test table
4. Start the automated test program
5. The system automatically calculates and displays the results of Static Coefficient of Friction and Dynamic Coefficient of Friction
6. Use a microprinter to print statistical analysis test reports
Notice
• Power supply voltage AC220V 50HZ
Tests should be conducted in a standard laboratory environment
• Pay attention to the slider stroke and speed settings (slider stroke: 70mm, 150mm, traverse speed: 100mm/min, 150mm/min)
• Regularly use the internal force value calibrating mode of the instrument to calibrate
• Keep the instrument table clean to avoid affecting the test accuracy
