Overview

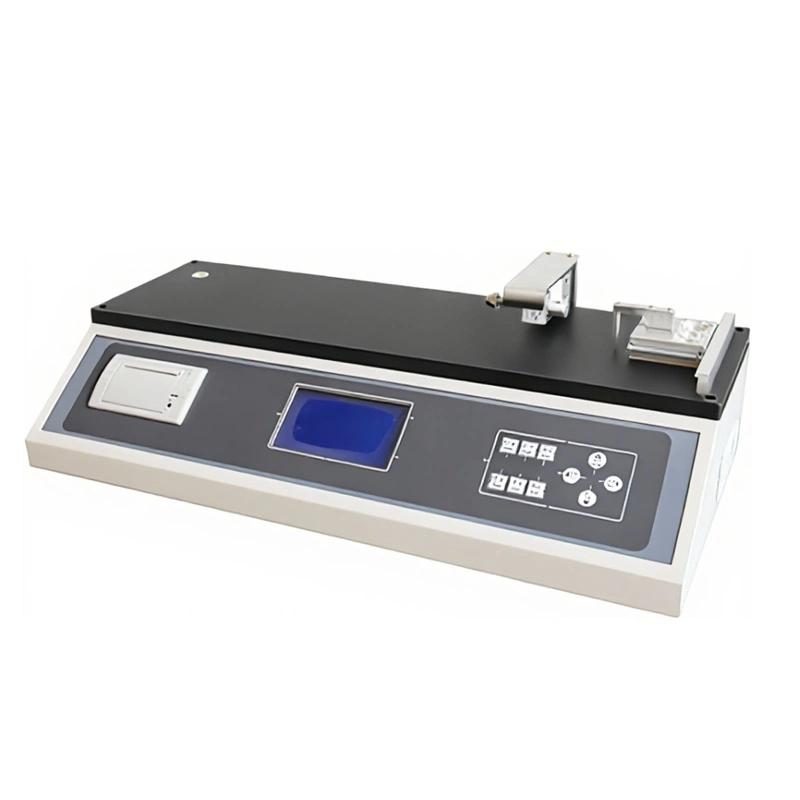

CHENCHI MXD-02 Friction coefficient meter is manufactured with reference to GB 10006, ASTM D1894 and other standards, in line with GB/T 17200, GB/T22895, ISO 8295, TAPPI T816 and other national standards. Professional for measurement Plastic film and sheet, rubber, paper, Cardboard, woven bags, fabrics, metal composite belts, conveyor belts, wood, coatings and other materials When sliding, static Coefficient of Friction and dynamic Coefficient of Friction, adjust the production process index through measurement of material slippage control. It can also realize 180 ° Peel Strength test of self-adhesive, release paper, protective film, tape, label and other materials by changing the fixture.
Features
1. Microcomputer control, fully automated testing process.
2. Support a variety of standard test methods such as GB 10006, ISO 8295, ASTM D1894, TAPPI T816, GBT2792, etc., and support any non-standard test.
3. PVC control panel, LCD display results, parameters, Linear dispersion test.
4. High Accuracy Imported Sensor, High accuracy of test results, Good Stability Repeatability.
5. Support setting arbitrary slider mass test.
6. The test stroke can be arbitrarily set within 0-320mm.
7. The test speed can be set arbitrarily within 0-1200mm/min.
8. The whole machine has no mechanical knob, full digitalization control.
9. Specially designed drive system, running smoothly, without vibration or noise.
10. Linear dispersion is displayed in real time during the test, and the static and dynamic Coefficients of Friction are measured simultaneously.
11. Equipped with a microprinter, it can print test reports with real-time or historical data.
12. The instrument test table and test slider have been degaussed and remanence detected, effectively reducing the system test error.
13. Configure a standard RS232 serial communication port and use professional computer software to pass computer-controlled tests.
Principle
The instrument controls the fully automatic test process through a microcomputer, uses the High Accuracy Sensor to measure the force value when the material slides, displays the force value in real time Linear dispersion and automatically calculates the Coefficient of Friction and Coefficient of Friction. The special drive system ensures smooth operation without vibration, and reduces errors through degaussing treatment to achieve accurate measurement.
Applications
Plastic films and sheets, Rubber, Paper, Cardboard, Woven bags, Fabrics, Metal composite belts, Conveyor belts, Wood, Coatings, Self-adhesive, Release paper, Protective film, Tape, Label
Standards
GB 10006、GB/T 17200、GB/T22895、ISO 8295、ASTM D1894、TAPPI T816、GBT2792
Steps
1. Connect the power supply AC220V 50HZ.
2. Set the slider mass (default 200g or 500g, can be set arbitrarily).
3. Set the test stroke (default 70mm or 150mm, 0-320mm can be set).
4. Set the slider traverse speed (default 100mm/min or 150mm/min, 0-1200mm/min can be set).
5. Place the specimen on the test table.
6. Start the microcomputer-controlled automatic test.
7. Linear dispersion and results are displayed in real time on LCD screen.
8. Use a microprinter to print the test report.
Notice
• Power supply voltage AC220V 50HZ.
Tests should be conducted in a standard laboratory environment.
• Slider mass and size can be customized according to actual needs.
• The test stroke and speed can be set non-standard, but within the allowable range of the instrument.
• The instrument test table and slider have been degaussed to avoid external magnetic field interference.
• Professional computer software is required when using the RS232 communication port.
• Regularly check sensor accuracy and System Stability.
