Overview

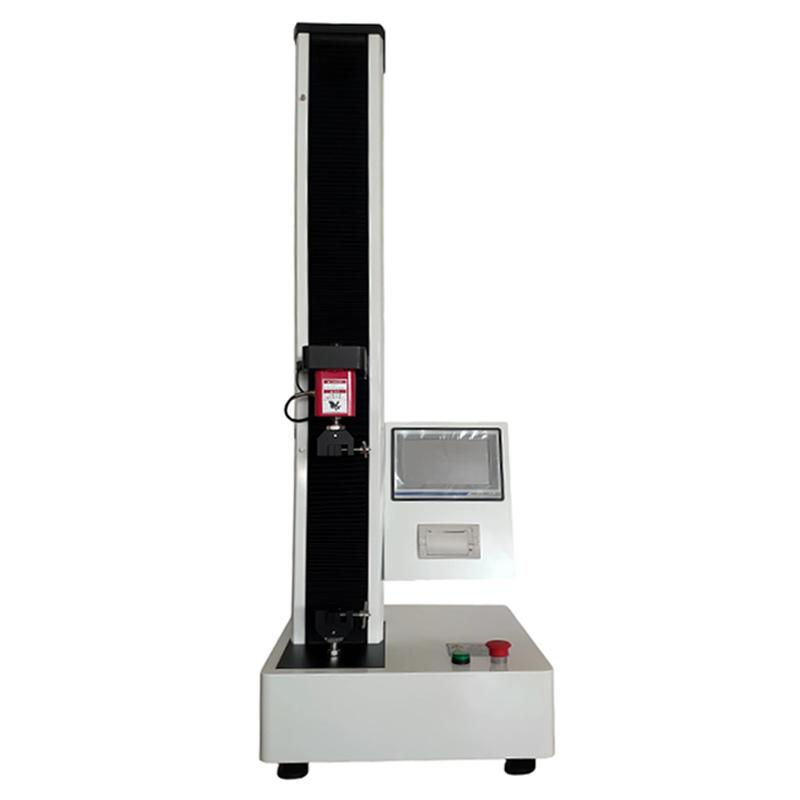

CHENCHI WDL-05 Intelligent Universal Testing Machine is a film tensile testing equipment specially designed for universities and research institutes. It adopts the company's excellent technology, with beautiful appearance, easy operation and stable and reliable performance. The equipment can realize tensile strength, 180 ° Peel Strength and sealing strength. It can achieve pollution-free, low-noise and high-efficiency tensile mechanical properties testing through CHENCHI controller and servo motor system. It has a wide speed range and is widely used in material inspection and analysis in many industries.
Features
1. Intelligent design, optimized for the needs of universities and research institutes
2. Beautiful appearance, easy operation, stable and reliable performance
3. Support tensile strength, 180 ° Peel Strength, sealing strength and other test methods
4. Adopt CHENCHI controller and servo motor system, with wide speed range
5. No pollution, low noise, high efficiency
6. Equipped with a five-inch color LCD touch screen for intuitive operation
7. Provide safety functions such as overload protection, leakage protection, and limit protection
8. Effective travel and stretch space can be customized to meet different testing requirements
Principle
Through the CHENCHI controller, the system controls the servo motor to rotate through the speed control system, and then decelerates through the deceleration system, the beam is driven up or down by the precision screw pair, thus completing the tensile properties mechanical test of the sample. This process realizes efficient and accurate force value measurement and displacement control.
Applications
Building materials, aerospace, machinery manufacturing, Wire and cable, rubber and plastic, Spinning & weaving, home appliances and other industries material inspection analysis, as well as scientific research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments test
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Turn on the power supply and start the device
2. Set test parameters through a five-inch color LCD touch screen
3. Install the sample to ensure that it is firmly fixed
4. Select the test speed range (1mm/min~ 500mm/min)
5. Start the test and observe the test force, displacement, peak value and other data displayed on the LCD screen
6. After the test is completed, the device stops automatically or manually
7. Record and analyze test results
Notice
• Check whether the power supply is 220V 50HZ before use to ensure good grounding
• Pay attention to whether the overload protection, leakage protection and limit protection functions are normal during operation
Avoid using equipment in humid or flammable environments
• Precision and deformation display errors are regularly calibrated to ensure test accuracy
• The specimen should be firmly installed to prevent peeling during the test
• The weight of the equipment is about 80Kg, be careful when moving to avoid dumping
• Non-professionals should not disassemble or repair the equipment
