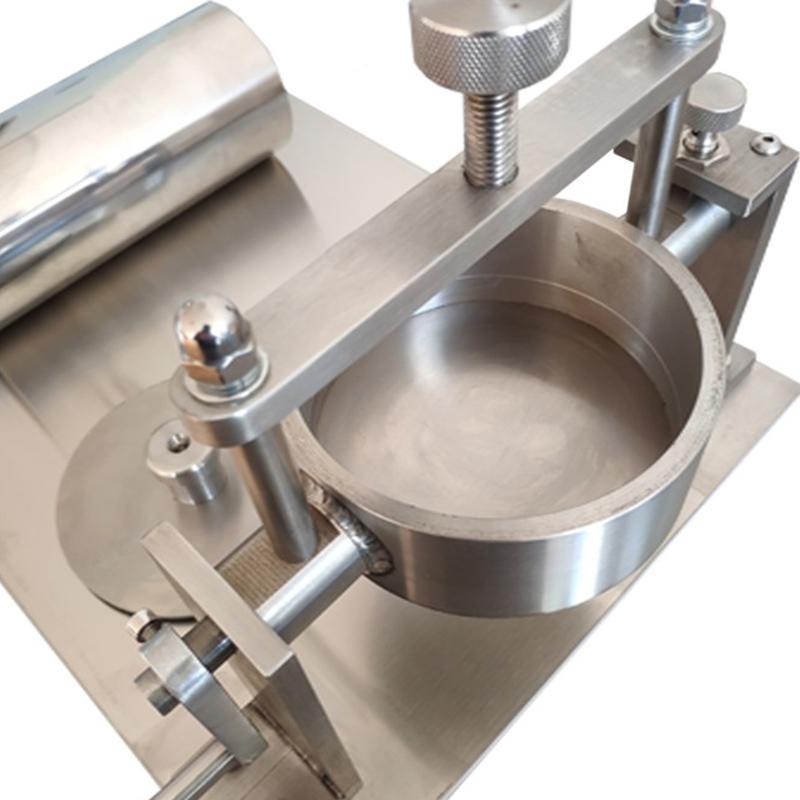

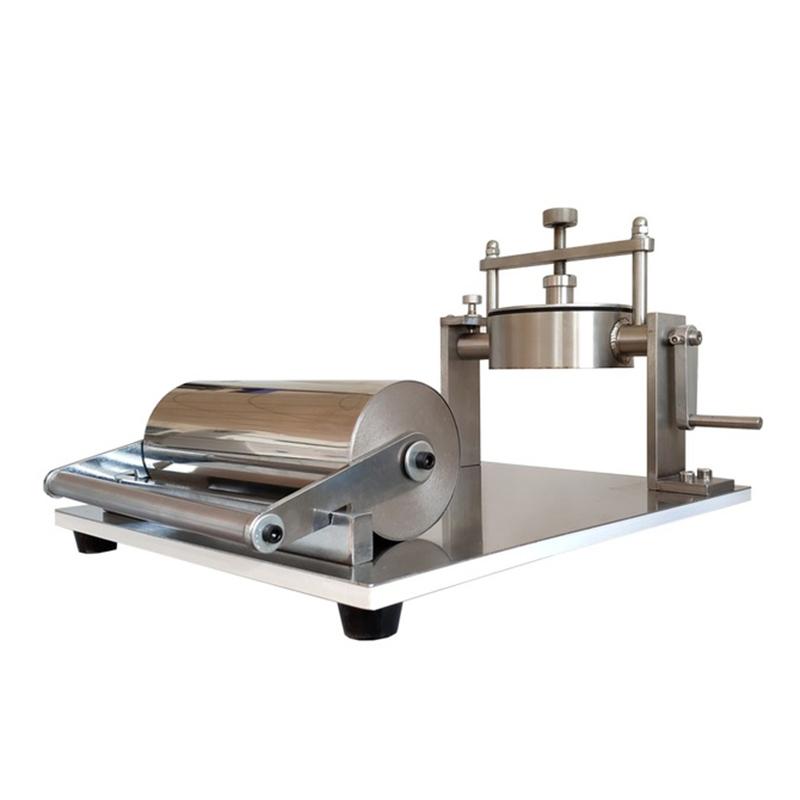

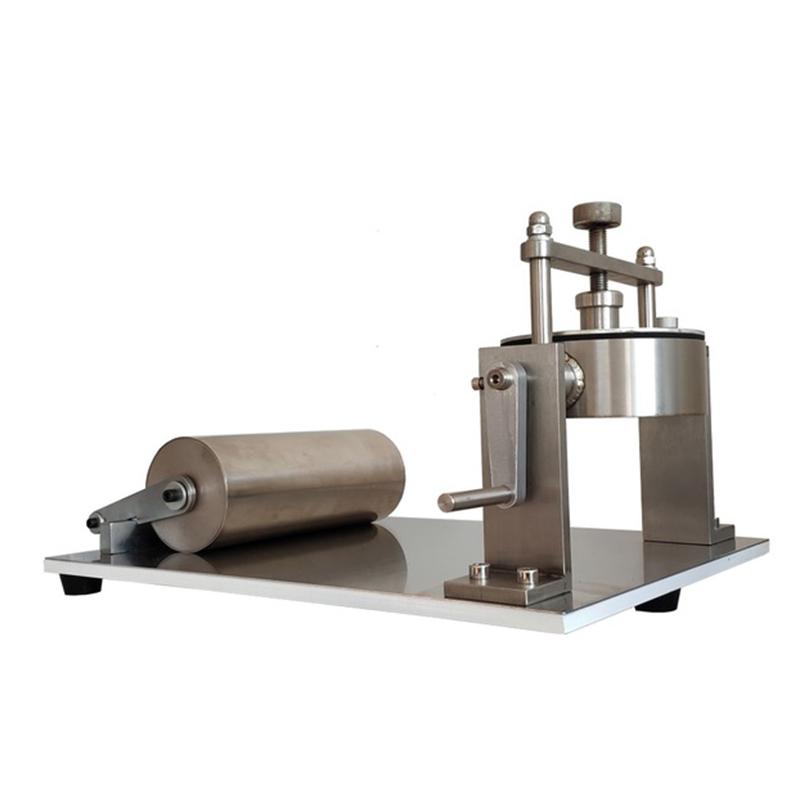

CHENCHI KBY-1 Cobb Absorbency Tester, Sizing Cardboard Surface Water Absorbency Tester

Name: CHENCHI KBY-1 Cobb Absorbency Tester, Sizing Cardboard Surface Water Absorbency Tester
Brand: labchen
SKU: NB042680
Price: 544.0 USD
Availability: InStock

$ 544.00Ex works

The inner section area of the metal cylinder is 100 +/- 0.2cm ², and the test water consumption is 100mm +/- 5ml. It is suitable for the determination of Water Absorbency on the surface of sizing paper and Cardboard. The operation is simple and the results are accurate.

Model

KBY-1

Get Quote

Category : Cobb Sizing Tester

Brand : labchen

SKU : NB042680

Service :The delivery and service By NBCLab.Com

Overview

The CHENCHI KBY-1 Cobb Absorbency Tester is mainly used to measure the surface Water Absorbency of sizing paper and Cardboard (including Corrugated Board). The instrument evaluates the Water Absorbency of the material by measuring the water absorbed by the surface of the area paper and Cardboard within a specified time under a certain pressure and temperature in g/m2.

Features

1. Suitable for Water Absorbency Determination on Surface of Sizing Paper and Cardboard 2. The inner section area of the metal cylinder is precisely 100 +/- 0.2cm ² 3. Equipped with smooth metal flat roller, length 200 +/- 0.5mm, mass 10 +/- 0.5kg 4. Test water consumption control is accurate to 100mm +/- 5ml 5. Dimensions compact for easy laboratory use

Principle

Based on the definition of Cobb absorbency, the instrument applies a certain pressure through a metal cylinder to measure the amount of water absorbed by the surface of paper and Cardboard within a specified time. The quantitative requirements of absorbent paper are 200~ 250g/m2, and the absorption rate is 75mm/10min. Accurate Water Absorbency data are obtained by precisely controlling the test conditions.

Applications

Adhesive Paper, Cardboard, Corrugated Board

Standards

GB/T1540-2002

Notice

• May not be suitable for paper quantities below 50g/m2 • Not suitable for embossed paper Not suitable for loose paper (such as printing paper) • Not suitable for unglued paper (blotting paper) Not suitable for papers with high Miscellaneous Water Absorbency • When the single-layer weight of absorbent paper is less than 200~ 250g/m2, multi-layer stacking is required to meet the requirements

Absorbent paper dosing
200~250g/㎡
Absorption speed of absorbent paper
75Mm/10min; when the single-layer weight of absorbent paper is less than 200~ 250 g/m2, multiple layers can be stacked to meet the requirements
Internal cross-sectional area of metal cylinder
100±0.2cm²
Corresponding inner diameter of metal cylinder
112.8±0.2mm
Smooth metal flat roll length
200±0.5mm
Smooth metal flat roll mass
10±0.5kg
test water consumption
100mm±5ml
Dimension
480*400*420mm
weight
28kg
