Overview

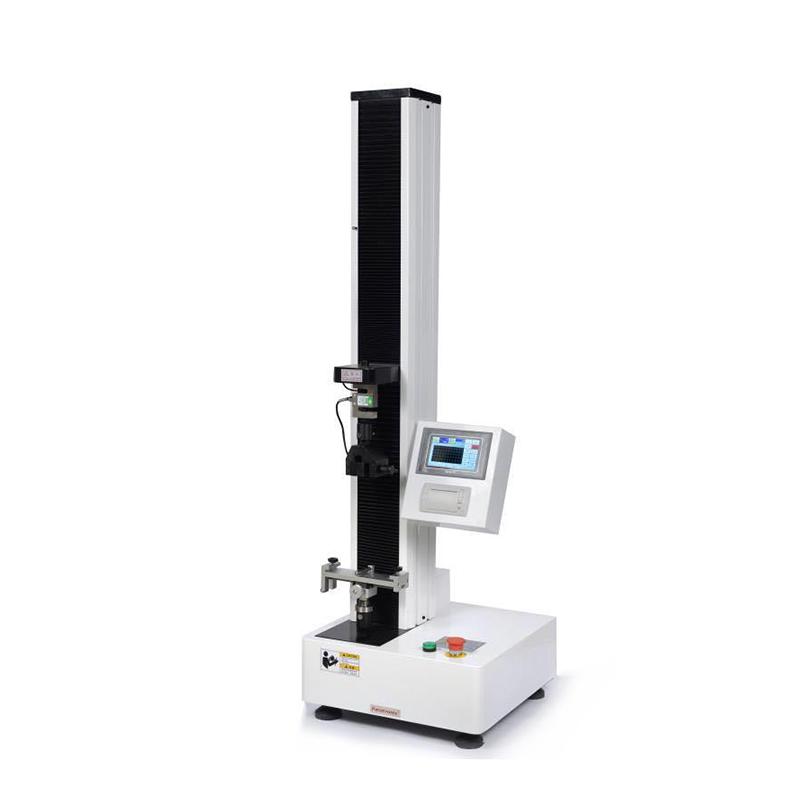

CHENCHI WDK-01 tensile strength testing machine is designed for universities and research institutes. It has beautiful appearance, convenient operation and stable and reliable performance. It has a wide range of adaptability and complete functions. It can detect the tensile strength, tensile strength, elongation, fracture length, tensile energy absorption, tensile index, tensile energy absorption index, fracture time and other parameters of paper.
Features
High Accuracy and repeatability: High Accuracy Force Sensor, Precision < 0.5%, better than ISO standard +/- 1%, accurate positioning, fast Response.
2. Long life: precision ball screw drive, rational design, durable, support for upgrades.
3. Wide range of adaptability and complete functions: a variety of ranges are available, suitable for all paper and Cardboard, with comprehensive testing parameters.
4. Easy to use and easy to operate: high-speed ARM processor, 5-inch touch LCD screen Chinese display, fully automatic testing, data statistical processing, standard printer, can be connected to a computer.
5. The test is fast and effective: the test speed, sample width, gram weight, etc. can be preset, and the built-in force value is converted into multiple units.
6. Easy Measurement and calibrating: The Force Sensor is located above and can be easily calibrated with standard weight.
Principle
Through the CHENCHI controller, the system controls the servo motor to rotate through the speed control system, and after deceleration by the deceleration system, the tensile mechanical properties of the sample are completed by the rise and fall of the precision screw pair with the beam.
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Connect the power supply and necessary equipment.
2. Preset test parameters such as speed, sample width, and gram weight.
3. Install the sample to the fixture.
4. Start the test, the system automatically completes the tensile test.
5. View and record data, which can be output by printer or saved by computer.
Notice
• Check the power supply and cable before use to ensure safety.
• Regularly calibrate the instrument to ensure measurement accuracy.
• Pay attention to overload protection, leakage protection and limit protection functions during operation.
• Avoid use in humid or high temperature environments.
• Follow technical documentation guidance during maintenance.
