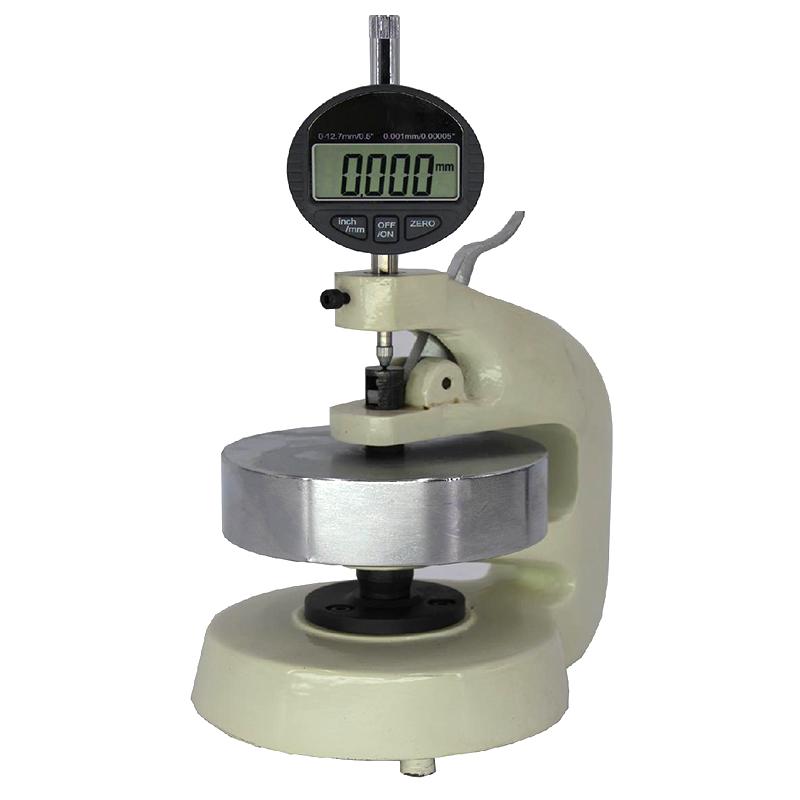

CHENCHI HD-04 paper thickness Gauge Cardboard thickness Gauge, integrated casting process

Name: CHENCHI HD-04 paper thickness Gauge Cardboard thickness Gauge, integrated casting process
Brand: labchen
SKU: NB042691
Price: 503.0 USD
Availability: InStock

$ 503.00Ex works

Using one-piece casting process, strong and not easy to deform, maintaining test parallelism; Measurement range 0~ 4mm, resolution 0.01mm, contact pressure 100 +/- 10kPa, contact area 2 +/- 0.05cm ², in line with standard requirements.

Model

HD-04

Get Quote

Category : Paperboard Thickness Gauge

Brand : labchen

SKU : NB042691

Service :The delivery and service By NBCLab.Com

Overview

HD-04 paper thickness gauge is a CHENCHI brand dedicated instrument for paper and Cardboard Film thickness measurement. Its main technical indicators and performance parameters comply with GB451.3 standards. The instrument is suitable for Film thickness measurement of various films, paper, Cardboard and Miscellaneous sheet materials below 4mm.

Features

1. The whole machine adopts an integrated casting process, which is durable and not easy to deform 2. Can maintain the test parallelism of the instrument well, making the test results more accurate

Principle

Film thickness measured under a certain area and a certain load. Pointer or digital thickness gauge can be used as the basic measurement of article detection.

Standards

QB/T 1055、GB/T 451.3

Notice

• Ensure contact pressure of 100 +/- 10kPa • Ensure that the contact area is 2 +/- 0.05cm ² • Note that the parallelism of the measurement surface should be less than or equal to 0.005mm. • Note Indication Error is +/- 0.0025mm or +/- 0.5% • Note that the indication variability should be ≤ 0.0025mm or ≤ 0.5%

Measurement Range
0~4mm
Graduation
0.01mm
contact pressure
100±10kPa
contact area
2±0.05cm²
Measurement plane parallelism
≤0.005mm
Indication Error
+/- 0.0025mm or +/- 0.5%
Indication variability
≤ 0.0025Mm or ≤ 0.5%
Net weight
4.5kg
Dimension
240*160*120mm
reference standard
QB/T 1055, GB/T 451.3, etc

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
