Overview

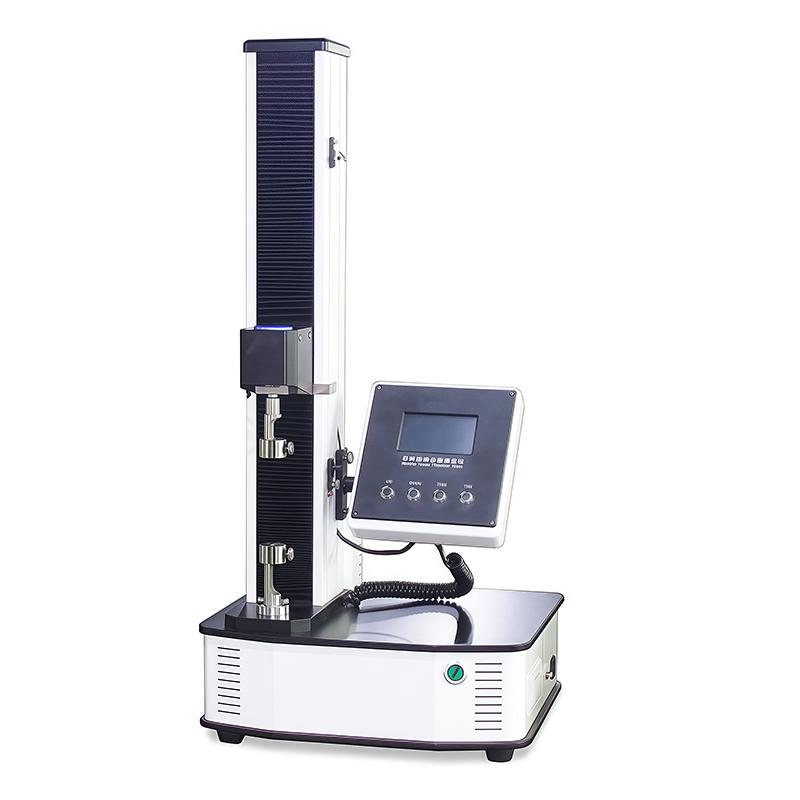

Yunda YD-LJ-W (3kg) Universal Tensile Strength Testing Machine (Vertical) is a professional testing equipment, widely used in rubber, Plastic film, braided belt, packing belt, Wire and cable, Spinning & weaving products, wire and other metals, Non-metallic and composite tensile strength and elongation testing. It is suitable for scientific research institutes, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.
Features
1. Using imported electrical components and high-speed data processing, large LCD display full Chinese operation menu, can enter sample parameters and test parameters in advance, automatically calculate and output the maximum force value, elongation, maximum tensile strength, save multiple sets of test data and results.
2. Stepless speed regulation (0.5-500 mm/min can be set arbitrarily), the screen displays the test force, peak value, test speed, running status, etc. in real time.
3. Single space test structure, Sensor for tension and compression bidirectional force value induction, tensile or compression test are completed below, can be pre-selected test mode.
4. Driven by precision digital motor and digital speed control system, after deceleration by deceleration system, drive precision screw pair to load, stable transmission, low noise, high operation accuracy, wide speed range and long service life.
5. It has functions such as peak holding, sample breaking and shutdown, return to the origin after the test, upper and lower mechanical limits, electrical overload and other protection functions.
6. A variety of test methods can be selected according to the different test objects, and corresponding test fixtures can be selected to complete tensile, compression, tearing, bending, disbonding, ring stiffness and other tests.
7. Using imported motor, low noise, accurate control; notebook display Chinese/English menu, real-time display of stretching time, load tension, etc., can display printing tensile curve.
8. Directly obtain measurement results, display and print statistical reports, including mean, standard deviation and coefficient of variation.
9. Variable sample size and tensile speed, appropriate tensile speed can be set to change the test length and width of the sample.
10. Degree of automation, single chip microcomputer for information sensing, data processing and action control, with automatic reset, data memory, overload protection.
11. The built-in network port can be equipped with computer software to provide data communication for the host computer comprehensive reporting system.
12. Measurement range, according to user needs to configure different dynamometer transformation, widely used in a variety of paper and material tensile testing.
Principle
The testing machine uses a precision digital motor and a digital speed control system as the driving device, and drives the precision screw pair to load after deceleration by the deceleration system to realize the test functions of constant stress, constant strain and constant displacement. Sensor is a two-way force value induction of tension and compression, and collects data through a fully digital closed-loop control system. The single-chip microcomputer performs information sensing, data processing and action control.
Applications
Research Institutes, Universities & colleges, Industrial and Mining Enterprises, Technical Supervision, Commodity Inspection and Arbitration
Steps
1. Input the sample parameters and test parameters in advance before the test.
2. Select the test method and set the appropriate tensile speed.
3. Start the test, and the screen displays the test force, peak value, test speed, and operating status in real time.
4. Automatically calculate and output the maximum force value, elongation and maximum tensile strength after the test.
5. Save the test data and results, display and print tensile curves and statistical reports.
6. Return to the origin after the test, manually or automatically.
