Overview

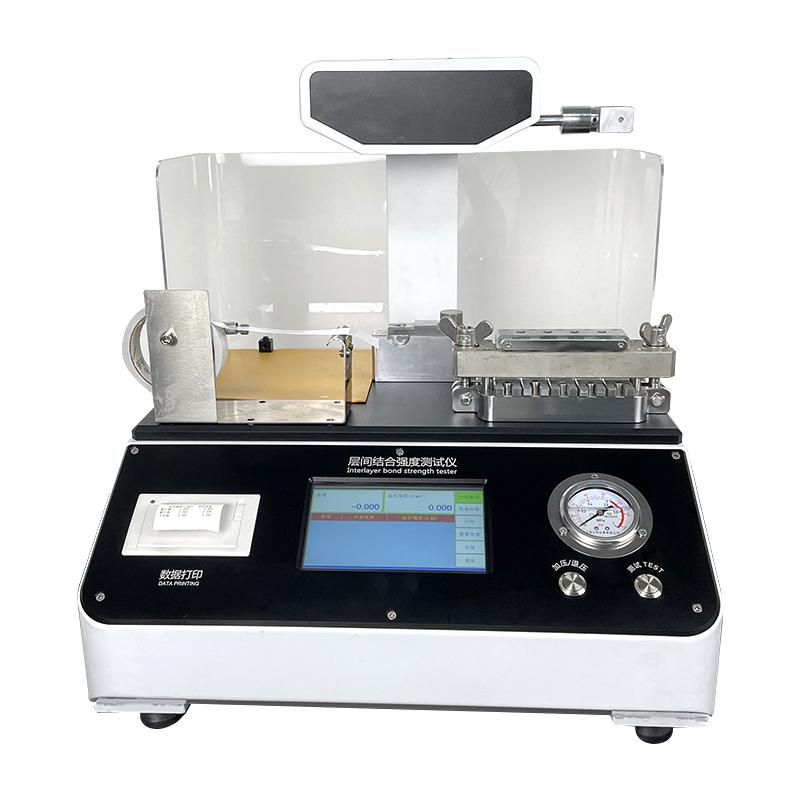

Yunda YD-JHY interlayer bonding tester (7 inch screen) is a device for testing the interlayer bonding strength of paper or Cardboard. By applying pressure, the interlayer bonding strength of paper or Cardboard is separated, and the interlayer bonding strength of the sample is measured to measure the mass and performance of paper or Cardboard. The tester is widely used in the manufacture and mass detection of paper, Cardboard and their products, which can effectively detect strength problems and improve product mass and performance.
Features

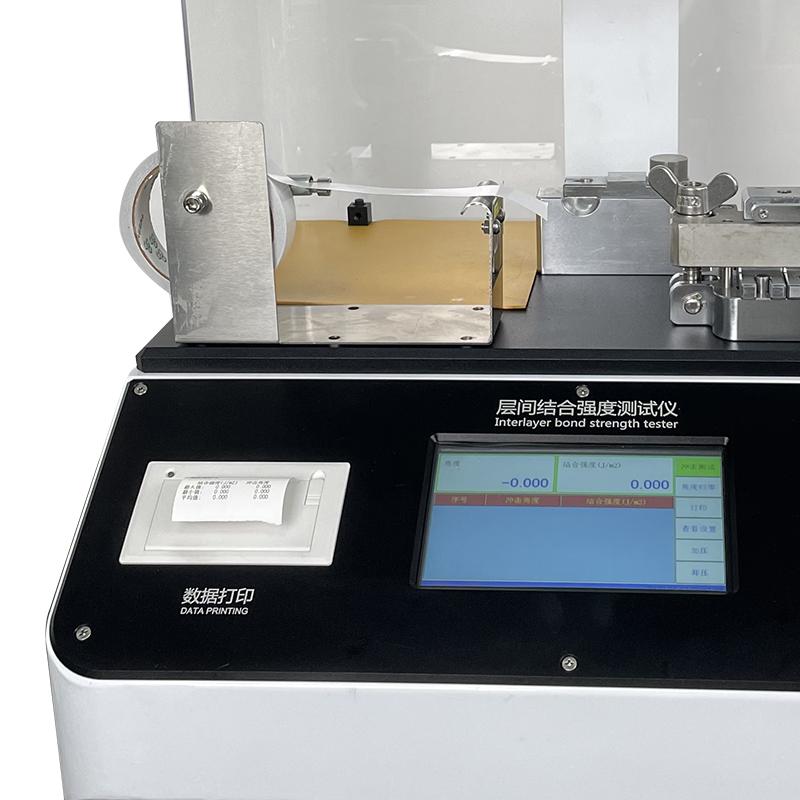

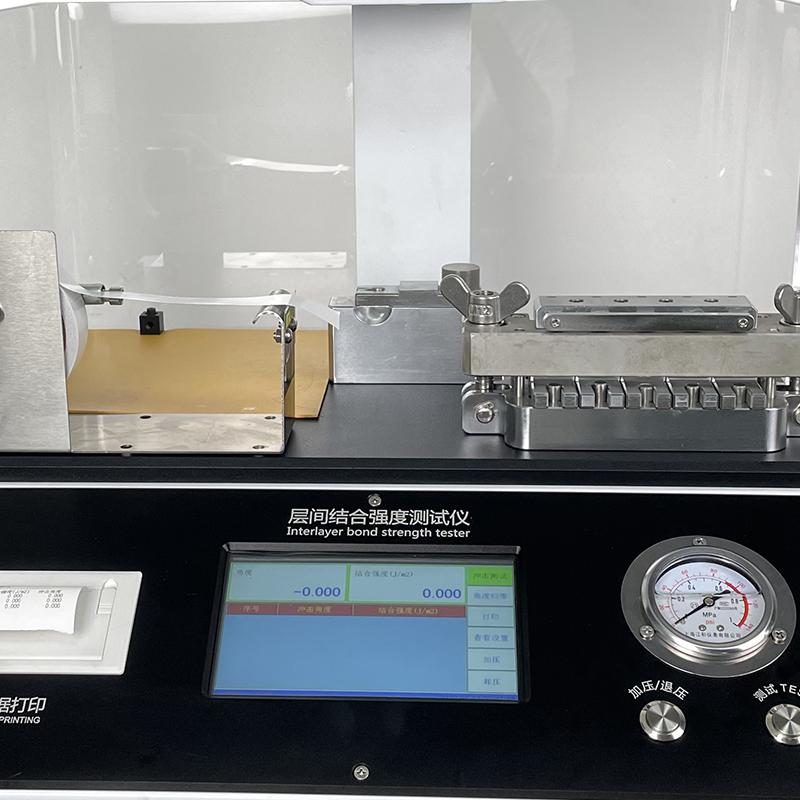

1. Touch screen display, free switching between Chinese and English bilingual languages
2. Air pressure viscose pressure sample, the pressure can be automatically adjusted
3. With test data statistical processing function
4. The whole machine has strong rigidity and stable structure, avoiding energy loss caused by vibration during testing
5. Reliable sample clamping and positioning to reduce sample errors due to sampling
6. Optional connection to computer to automatically draw real-time test data Linear dispersion diagram (optional)
Principle
The combination of double-sided tape-specimen-double-sided tape forms a sandwich structure, which is pressed between a metal flat anvil and an aluminum block, and strikes the inner surface of the upper part of the aluminum block with a pendulum to flip the aluminum block and destroy the sample in the Z direction. Calculate the energy absorbed during the destruction of the sample by measuring the position of the swing, expressed in J/m2.
Applications
Insulating Paper, Bobbin Paper, Gray Cardboard, Cardboard, Encasement Box, Other Industrial Paper that Needs Processing Operations
Standards
GB/T 25203、ASTM T569 pm-00、DIN ISO 16260、TAPPI-UM403
Steps
1. The size of the prepared sample is 25.4mm × 127mm

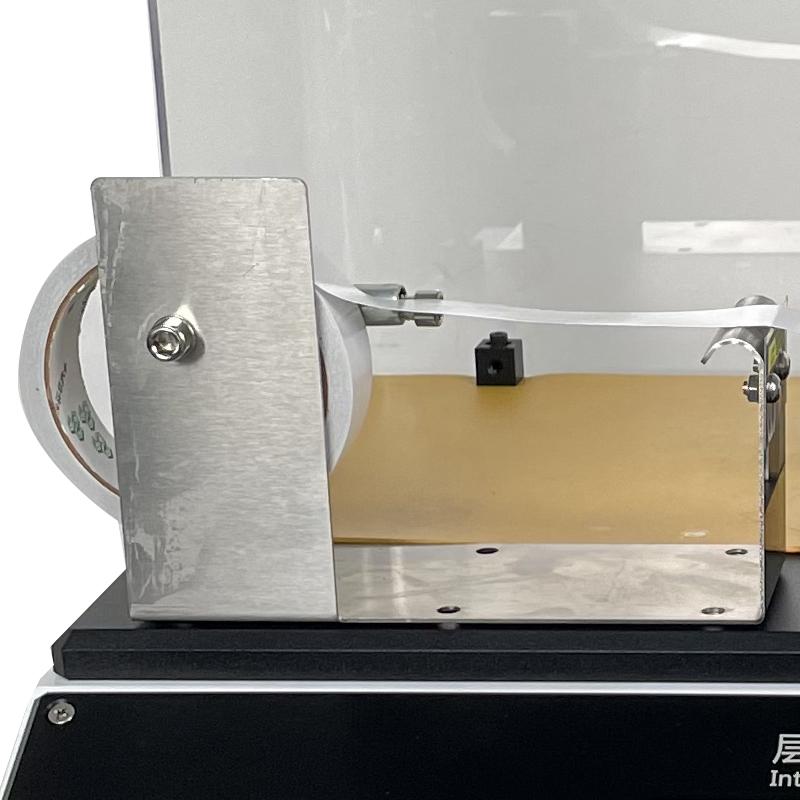

2. Sandwich the specimen between two double coated tape substrates

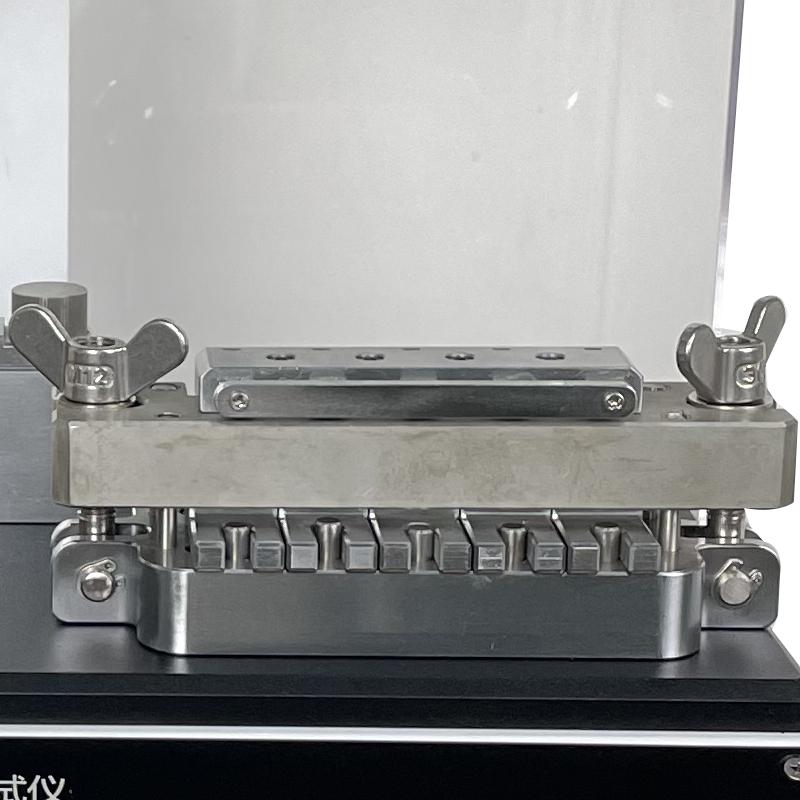

3. Use pneumatic clamping to secure the specimen
4. Set test parameters via touchscreen
5. Start fully automatic release pendulum for Impact test
6. The instrument automatically calculates and displays the results of interlayer bonding strength
Notice
• The sample size should be strictly controlled at 25.4mm × 127mm
• Film thickness range should be between 0.1 and 5mm
• Ensure that the instrument is placed smoothly to avoid vibration during the test
• Regularly calibrate instruments to ensure Measurement accuracy
• Check whether the pneumatic system is working normally before operation
• Test results need to be judged in combination with standard requirements
