Overview

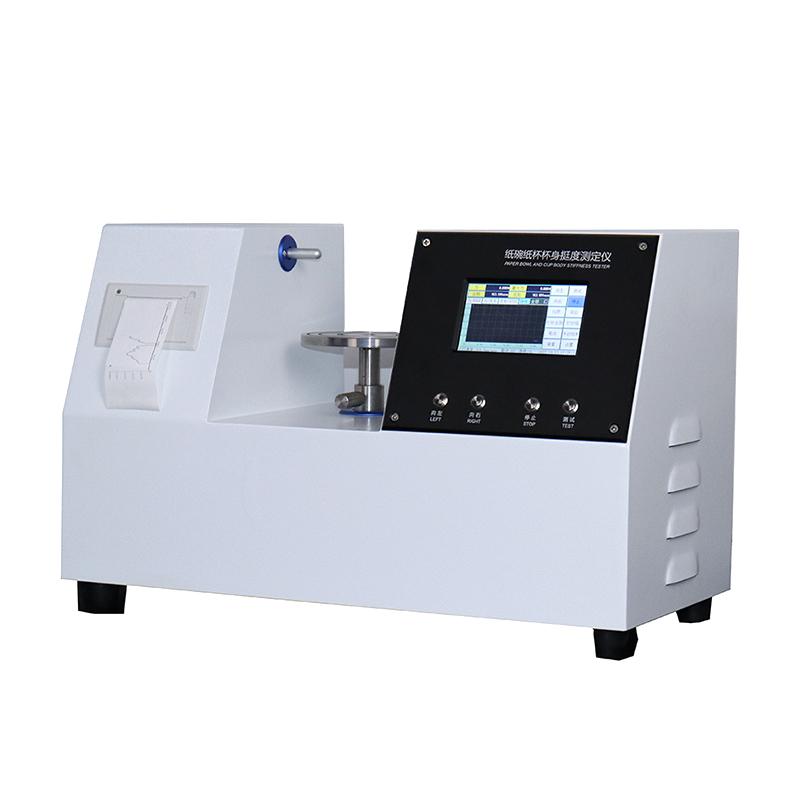

Yunda YD-TD-B cup body stiffness tester is a fully automatic electronic testing instrument designed according to the principle requirements of the mechanical cup body Stiffness meter in the QB/T 2294-2006 "Paper Cup" standard. The instrument is easy to operate and is suitable for the stiffness measurement of paper cups of various capacities. It can meet the needs of paper cup manufacturers and related scientific research and Quality control departments for physical performance testing of paper cups.
Features
1. Microcomputer processing system, aluminum alloy sand blasting control panel, touch screen LCD display
2. Fully automatic electronic testing equipment, easy to use and wider testing range
3. One-click operation of the experimental process to avoid human errors
4. Computer measurement and control automatically determine the initial test status
5, built-in tray automatic lifting function, Degree of automation
6, double measurement head structure design, more accurate test data
7. Test with real-time Linear dispersion function
8. Micro printer, ready to print test data
Principle
The instrument is designed according to the principle requirements of the mechanical paper cup body Stiffness meter in the QB/T 2294-2006 "Paper Cup" standard, and controls the force distance and test speed through the microcomputer processing system.
Applications
Paper cup manufacturer, scientific research department, Quality control department
Standards
QB/T 2294-2006 "Paper Cup"
Steps
1. Prepare paper cup samples
2. Set up test parameters
3. Start a one-click operation
4. The instrument automatically tests and displays the results
5. Use a microprinter to print data
Notice
• Make sure the diameter of the paper cup is within the range of 30-150mm
• The height of the paper cup should be between 15mm and 120mm
The test speed should be controlled within the range of 50 +/- 2.5mm/min
• The force distance should be maintained at 9.5 +/- 0.5mm
• Net weight of the instrument 18kg, pay attention to safety when handling
