Overview

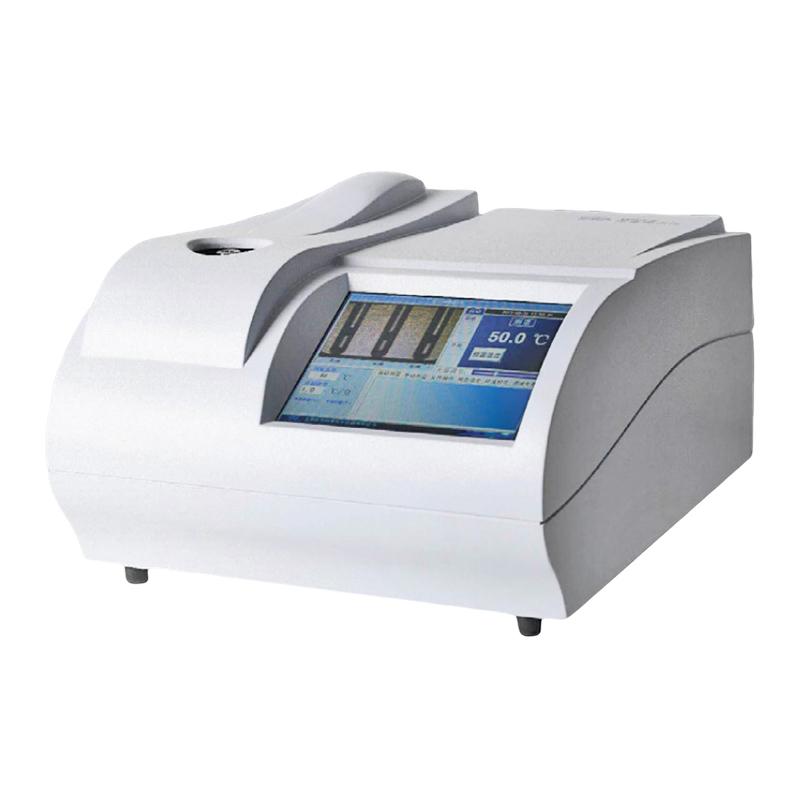

SGW-630 automatic image grease melting point (slip point) instrument is INESA brand High Accuracy detection instrument, using high-resolution digital camera and image processing technology implementation automatic detection. The instrument has built-in WINDOWS operating system, supports automatic and manual visual two Measurement mode, can simultaneously measure multiple capillary tubing samples.
Features
1. Adopt high-resolution digital camera, automatically detected by image processing analysis, with playback function
2. Simultaneous measurement of multiple capillary tubings, simultaneous measurement of 3 samples
3. Built-in WINDOWS operating system, simple and convenient operation, can be connected to the printer
4. Can measure dark samples or opaque samples, with multi-point Adjustment
5. Test data can be saved, exported, and uploaded
6. With automatic measurement and manual visual measurement two functions, can verify the accuracy of the test
7. Temperature control system uses Linearity high platinum resistance detection element to improve data accuracy and Reliability
Principle
The instrument collects the sample image through the high-resolution digital camera, and automatically detects the change process of the oil melting point through image processing analysis. The temperature control system uses the platinum resistance detection element to precisely control the heating rate and monitor the change of the sample state in real time.
Applications
Oil melting point testing, drug quality control, food testing, chemical raw material analysis
Standards
National Pharmacopoeia, GMP, GLP, FDA/21CFR Part11
Steps
1. Prepare samples and load capillary tubing
2. Select the experimental method
3. Set the heating rate
4. Start automatic measurement or manual visual measurement
5. Observe the sample change process
6. Record test data
7. Save or export test results
Notice
• Before use, check whether the Power supply voltage meets the requirements of 220V +/- 22V
The sample height should be controlled within the 3mm standard range
• Choose the appropriate heating rate to ensure Measurement accuracy
• Regularly calibrate at 8 points to ensure instrument accuracy
• Note the size of capillary tubing: outer diameter φ 1.4mm, inner diameter φ 1.0mm, length 90mm
• Operators need to be certified for hierarchical password management
• Test data should be saved in a timely manner
