Overview

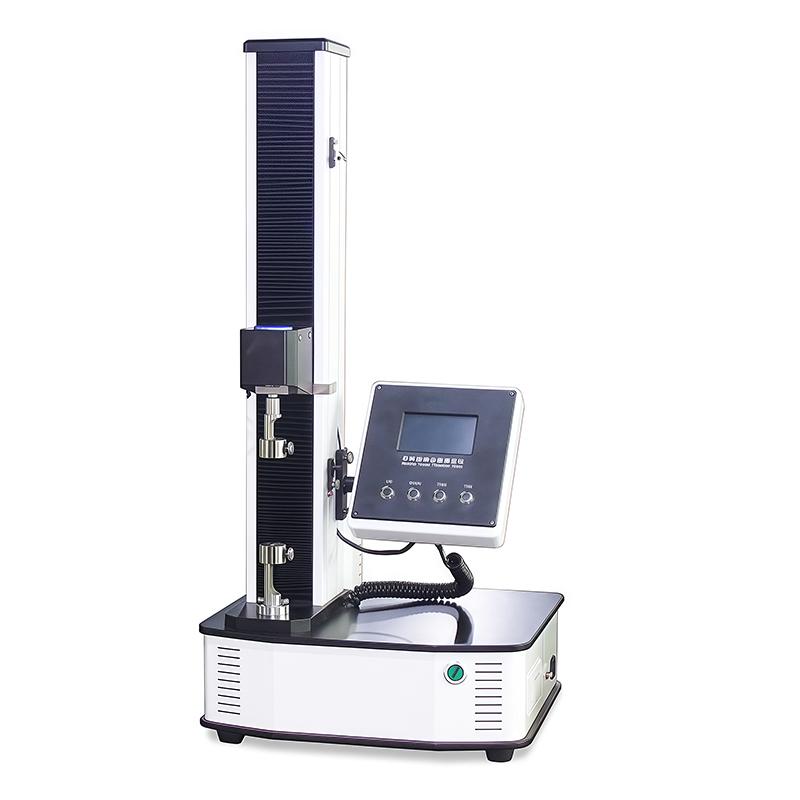

Yunda YD-LJ-W (50kg) Universal Tensile Strength Testing Machine (Vertical) is a professional testing equipment, widely used in rubber, Plastic film, braided belt, packing belt, Wire and cable, Spinning & weaving products, wire and other metals, Non-metallic and composite tensile strength and elongation testing. It is suitable for scientific research institutes, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.
Features
1. Using imported electrical components and high-speed data processing, large LCD display full Chinese operation menu, can enter the sample and test parameters in advance, automatically calculate and output the maximum force value, elongation, maximum tensile strength, save multiple sets of data.
2. Stepless speed range 0.5-500 mm/min, the screen real-time display test force, peak value, speed and status.
3. Single-space test structure, tension and compression bidirectional force value induction, tensile or compression test is completed below, and the test method can be selected in advance.
4. Precision digital motor and digital speed control system drive, through the deceleration system to drive the precision screw pair load, smooth transmission, low noise, high accuracy, wide speed range, long life.
5. With peak holding, sample break stop, return to the origin after the test, upper and lower mechanical limits and electrical overload protection.
6. A variety of test fixtures can be selected to complete tensile, compression, tearing, bending, disbonding, ring stiffness and other tests.
7. Using imported motor, low noise, accurate control; notebook display Chinese/English menu, real-time display of stretching time, load tension, can display printing tensile curve.
8. Directly display measurement results and print statistical reports, including mean, standard deviation and coefficient of variation.
9. Variable sample size and stretching speed, support standard size or custom settings.
10. Degree of automation, single chip microcomputer for information sensing, data processing and action control, automatic reset, data memory, overload protection.
11. The built-in network port can be equipped with computer software to provide data communication.
12. Measurement range, can be configured with different dynamometer transformation, suitable for all kinds of paper and material tensile testing.
Principle
The testing machine uses a precision digital motor and a digital speed control system as the driving device. After deceleration by the deceleration system, the precision lead screw pair is driven to load to realize the test functions of constant stress, constant strain and constant displacement. The force value data is collected by the High Accuracy Sensor and processed in real time by the full digital closed-loop control system to ensure the smooth transmission and high accuracy.
Applications
Rubber, Plastic film, Braided tape, Packing tape, Wire and cable, Spinning & weaving products, Wire and other metals, Non-metallic, composite tensile strength and elongation testing
Steps
1. Enter the sample parameters and test parameters in advance.
2. Select the test method and install the corresponding fixture.
3. Start the test, and the screen displays the test force, peak value, speed, etc. in real time.
4. Automatically calculate and output the results after the test, and save the data.
5. Return to the initial test position manually or automatically.
Notice
• Make sure that the sample parameters are entered correctly before the test.
• Select the appropriate test method and fixture according to the test object.
• Pay attention to the upper and lower mechanical limits and electrical overload protection functions.
• To avoid overload use, the maximum load value can be set for automatic protection.
• Regularly check the operating status of the equipment to ensure accuracy and safety.
