Overview

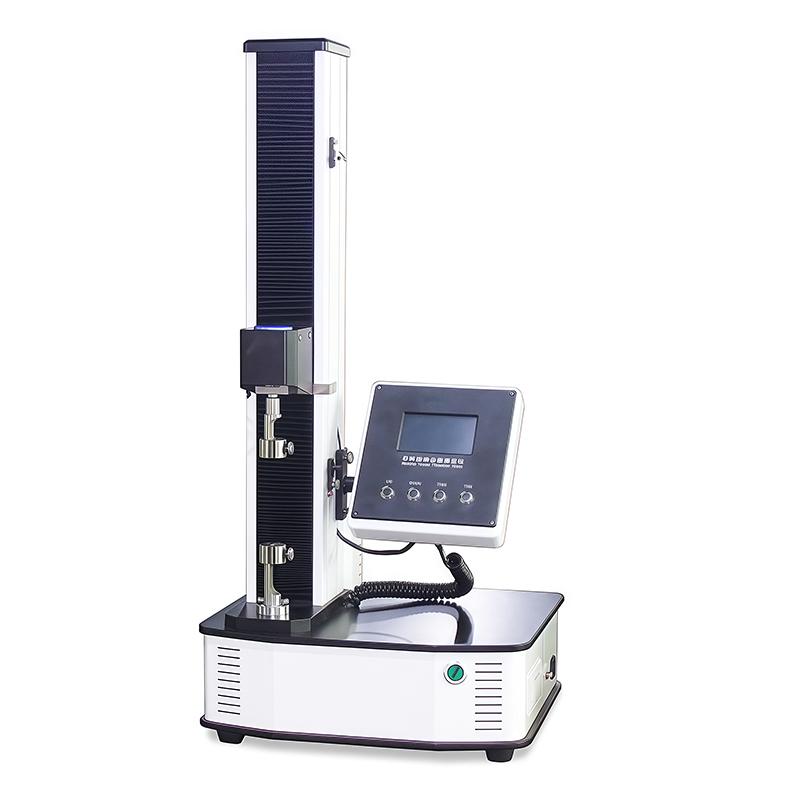

Yunda YD-LJ-W (100kg) Universal Tensile Strength Testing Machine (Vertical) is a professional testing equipment, widely used in rubber, Plastic film, braided belt, packing belt, Wire and cable, Spinning & weaving products, wire and other metals, Non-metallic and composite tensile strength and elongation testing. It is suitable for scientific research institutes, Universities & colleges, industrial and mining enterprises, technical supervision and commodity inspection and arbitration departments.
Features
1. Using imported electrical components and high-speed data processing, large LCD display full Chinese operation menu, can enter the sample and test parameters in advance, automatically calculate and output the maximum force value, elongation and maximum tensile strength, support multiple sets of data storage.
2. Stepless speed range 0.5-500 mm/min, the screen real-time display test force, peak value, speed and running status.
3. Single space test structure, tension and compression bidirectional force value sensor, tensile or compression test is completed below, and the test method can be selected in advance.
4. Precision digital motor and digital speed control system drive, through the deceleration system to drive the precision screw pair load, smooth transmission, low noise, high accuracy, wide speed range, long life.
5. Equipped with peak hold, sample break stop, return to origin after test, as well as upper and lower mechanical limit and electrical overload protection.
6. Support a variety of test methods, optional fixtures to complete tensile, compression, tearing, bending, disbonding, ring stiffness and other tests.
7. The imported motor has low noise and accurate control; the notebook displays Chinese/English menus, real-time display of stretching time, load tension, and can display the printing tensile curve.
8. Directly display measurement results and print statistical reports, including mean, standard deviation and coefficient of variation.
9. Variable sample size and stretching speed, support standard size or custom settings.
10. Degree of automation, single chip microcomputer for information sensing, data processing and action control, with automatic reset, data memory, overload protection.
11. The built-in network port can be equipped with computer software to provide data communication.
12. Measurement range, through the configuration of different dynamometer transformation, suitable for all kinds of paper and material tensile test.
Principle
The testing machine adopts precision digital motor and digital speed control system as the driving device, and drives the precision screw pair to load after deceleration by the deceleration system to realize smooth transmission and High Accuracy control. Through the collection of force value data by High Accuracy Sensor, the all-digital closed-loop control system can realize the test functions of constant stress, constant strain, constant displacement, etc., and process and display the test parameters in real time.
Applications
Rubber, Plastic film, Woven belt, Wire and cable, Spinning & weaving products, Wire and other metals, Non-metallic, composite tensile strength and elongation testing, Research institutes, Universities & colleges, Industrial and mining enterprises, Technical supervision, Commodity inspection and arbitration
Steps
1. Enter the sample parameters and test parameters in advance.
2. Select the test method and install the corresponding fixture.
3. Set the tensile speed and Miscellaneous test conditions.
4. Start the test and monitor the test force, peak value, speed and status in real time.
5. Automatically calculate and output the results after the test, and save the data.
6. Return to the initial test position manually or automatically.
Notice
• Make sure that the sample parameters are entered correctly before the test.
• Choose the appropriate test method and fixture according to the test object.
• Pay attention to the upper and lower mechanical limits and electrical overload protection settings.
• To avoid overload use, the maximum load value can be set for automatic protection.
• Regularly check the operating status of the equipment to ensure accuracy and safety.
