Overview

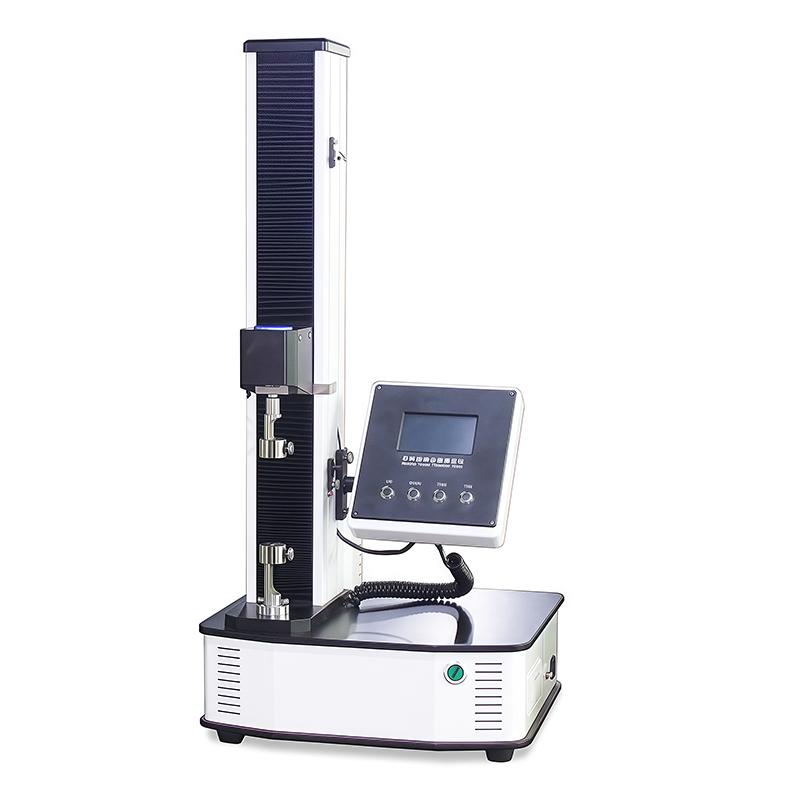

Yunda YD-LJ-W (200kg) Universal Tensile Strength Testing Machine (Vertical) is a professional testing equipment, widely used in rubber, Plastic film, braided belt, packing belt, Wire and cable, Spinning & weaving products, wire and other metals, Non-metallic and composite tensile strength and elongation testing. It is suitable for scientific research institutes, Universities & colleges, industrial and mining enterprises, technical supervision and commodity inspection and arbitration departments.
Features
1. Using imported electrical components and high-speed data processing, large LCD display full Chinese operation menu, can enter the sample and test parameters in advance, automatically calculate and output the maximum force value, elongation, maximum tensile strength, save multiple sets of data.
2. Stepless speed range 0.5-500 mm/min, the screen real-time display test force, peak value, speed and running status.
3. Single space test structure, tension and compression bidirectional force value sensor, tensile or compression test is completed below, and the test method can be selected in advance.
4. Precision digital motor and digital speed control system drive, through the deceleration system to drive the precision screw pair load, smooth transmission, low noise, high accuracy, wide speed range, long life.
5. It has the functions of peak holding, sample breaking shutdown, return to the origin after the test, and various protections such as upper and lower mechanical limits and electrical overload.
6. A variety of test methods can be selected according to the test object, and corresponding fixtures can be selected to complete tensile, compression, tearing, bending, disbonding, ring stiffness and other tests.
7. The imported motor has low noise and accurate control; the notebook displays Chinese/English menus, real-time display of stretching time, load tension, and can display the printing tensile curve.
8. Directly display measurement results and print statistical reports, including mean, standard deviation and coefficient of variation.
9. Variable sample size and stretching speed, support standard size or custom settings.
10. Degree of automation, single chip microcomputer for information sensing, data processing and action control, with automatic reset, data memory, overload protection.
11. The built-in network port can be equipped with computer software to provide data communication.
12. Measurement range, can be converted by configuring different dynamometers, suitable for all kinds of paper and material tensile testing.
Principle
The testing machine uses a precision digital motor and a digital speed control system as the driving device. After deceleration by the deceleration system, the precision screw pair is driven to load to achieve smooth transmission and High Accuracy control. The force value data is collected through the High Accuracy Sensor, and the all-digital closed-loop control system realizes the test functions of constant stress, constant strain, and constant displacement. The single-chip microcomputer performs information sensing, data processing and action control to ensure the automation of the test process and the accuracy of the data.
Applications
Rubber, Plastic film, Woven belt, Wire and cable, Spinning & weaving products, Wire and other metals, Non-metallic, composite tensile strength and elongation testing, Research institutes, Universities & colleges, Industrial and mining enterprises, Technical supervision, Commodity inspection and arbitration departments
Steps
1. Enter the sample parameters and test parameters in advance.
2. Select the test method and set the tensile speed and sample size as required.
3. Start the test, and the screen displays the test force, peak value, speed, and operating status in real time.
4. Automatically calculate and output the maximum force value, elongation and maximum tensile strength after the test.
5. Save multiple sets of test data and results, and display and print statistical reports.
6. After the test is completed, return to the origin automatically or manually.
Notice
• Make sure that the sample parameters are entered correctly before the test.
• Choose the appropriate test method and fixture according to the test object.
• Pay attention to the upper and lower mechanical limits and electrical overload protection functions.
• To avoid overload use, the maximum load value can be set for automatic protection.
• Regularly check the transmission system and Sensor status of the equipment.
• Follow safety procedures during operation to prevent accidents.
