Overview

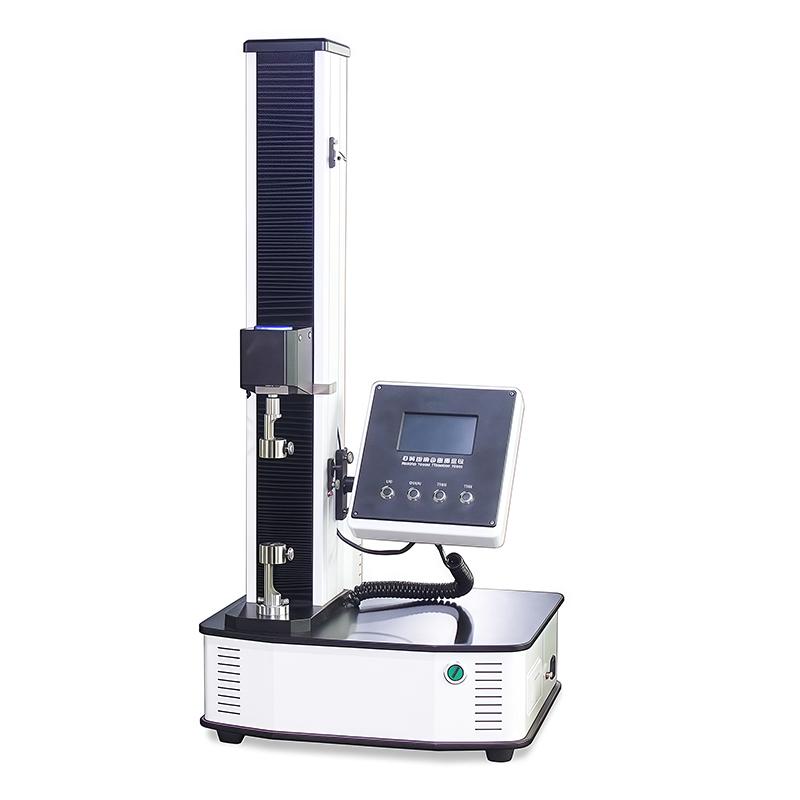

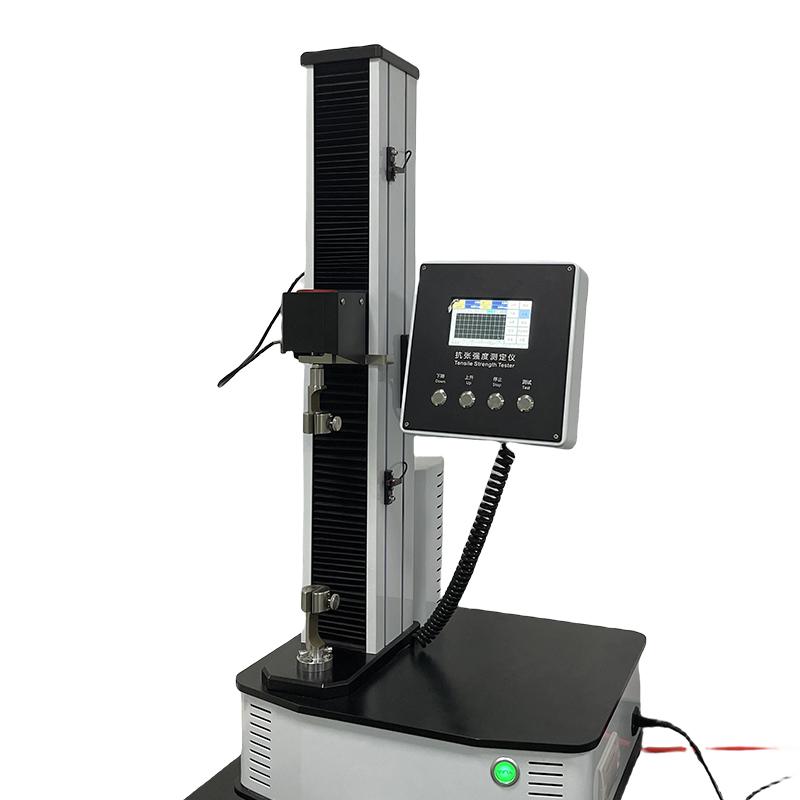

Yunda YD-LJ-W (300kg) Universal Tensile Strength Testing Machine (Vertical) is a professional testing equipment, widely used in rubber, Plastic film, braided belt, packing belt, Wire and cable, Spinning & weaving products, wire and other metals, Non-metallic and composite tensile strength and elongation testing test. It is suitable for scientific research institutes, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments.
Features
1. Using imported electrical components and high-speed data processing, large LCD display full Chinese operation menu, can enter the sample and test parameters in advance, automatically calculate and output the maximum force value, elongation, maximum tensile strength, save multiple sets of data.
2. Stepless speed range 0.5-500 mm/min, the screen real-time display test force, peak value, speed, status.

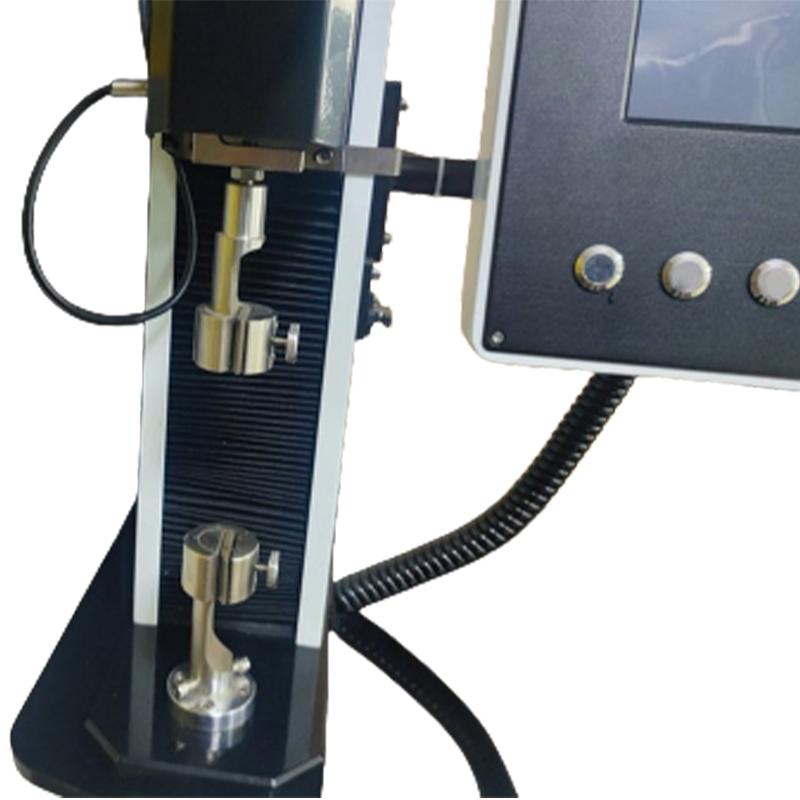

3. Single space test structure, Sensor for tension and compression bidirectional force value induction, tensile or compression test is completed below, and the test method can be pre-selected.
4. Driven by precision digital motor and digital speed control system, the precision screw pair is loaded by the deceleration system, and the transmission is stable, low noise, high accuracy, wide speed control range and long life.
5. It has the functions of peak holding, sample breaking and shutdown, return to the origin after the test, and various protection functions such as upper and lower mechanical limits and electrical overload.
6. A variety of test methods can be selected according to the test object, and corresponding fixtures can be selected to complete tensile, compression, tearing, bending, disbonding, ring stiffness and other tests.

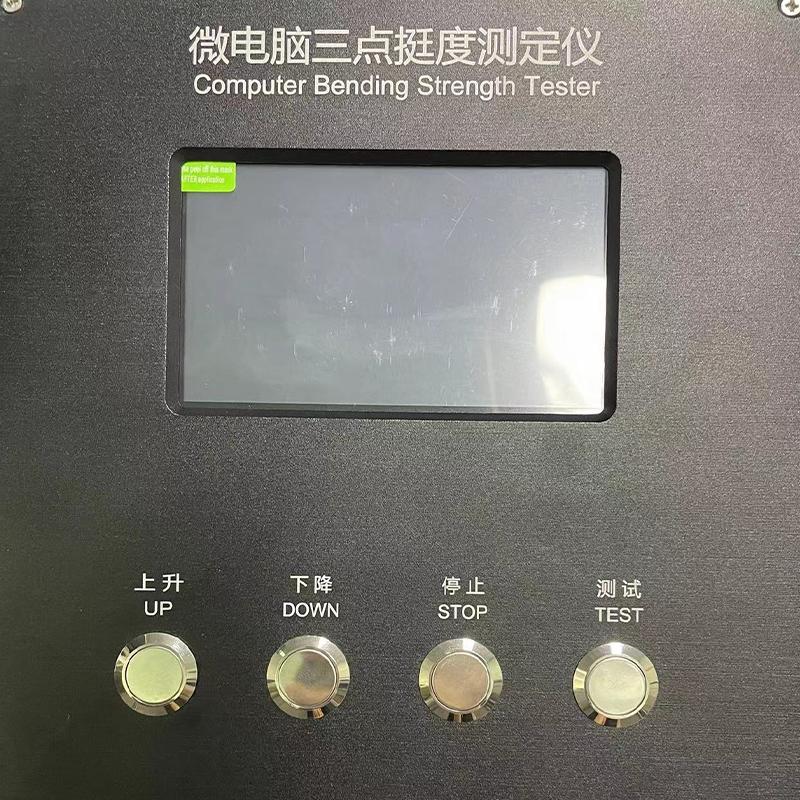

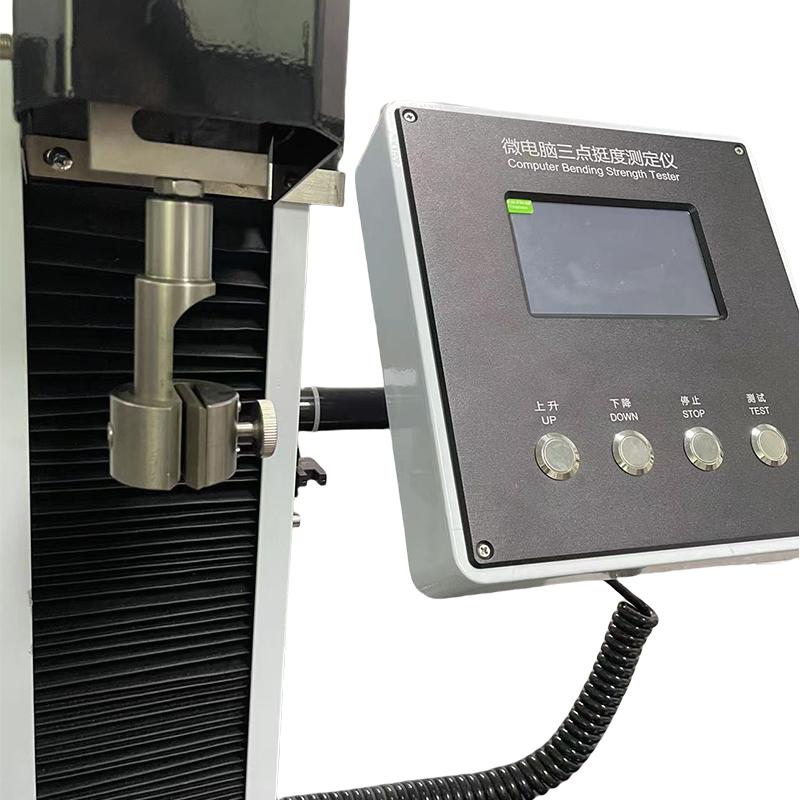

7. Using imported motor, low noise, accurate control; notebook display Chinese/English menu, real-time display of stretching time, load tension, can display printing tensile curve.
8. Directly display measurement results and print statistical reports, including average, standard deviation and coefficient of variation; variable specimen size and tensile speed.
9. Degree of automation, with automatic reset, data memory, overload protection; built-in network port can be equipped with computer software to provide data communication.
10. Measurement range, can be configured with different dynamometer transformation, suitable for all kinds of paper and material tensile testing.
Principle
The testing machine uses a precision digital motor and a digital speed control system as the driving device. After being decelerated by the deceleration system, the precision screw pair is driven to load, and the test functions such as constant stress, constant strain and constant displacement are realized. Sensor is a two-way force value induction of tension and compression, and collects data through a fully digital closed-loop control system to process and display test force, peak value, speed and other parameters in real time.
Applications
Research Institutes, Universities & colleges, Industrial and Mining Enterprises, Technical Supervision, Commodity Inspection and Arbitration
Steps
1. Enter the sample parameters and test parameters in advance.
2. Select the test method and set the tensile speed.
3. Start the test, and the screen displays the test force, peak value, speed, and status in real time.
4. Automatically calculate and output the maximum force value, elongation and maximum tensile strength after the test.
5. Save the test data and results, and print the statistical report.
Notice
• Make sure that the sample parameters are entered correctly before the test.
• Choose the appropriate test method and fixture according to the test object.
• Pay attention to the upper and lower mechanical limits and electrical overload protection functions.
• The test speed setting should be within the range of 0.5-500 mm/min.
• After the test, you can return to the initial position manually or automatically.
• To avoid overload use, the maximum load value can be set for automatic protection.
