Overview

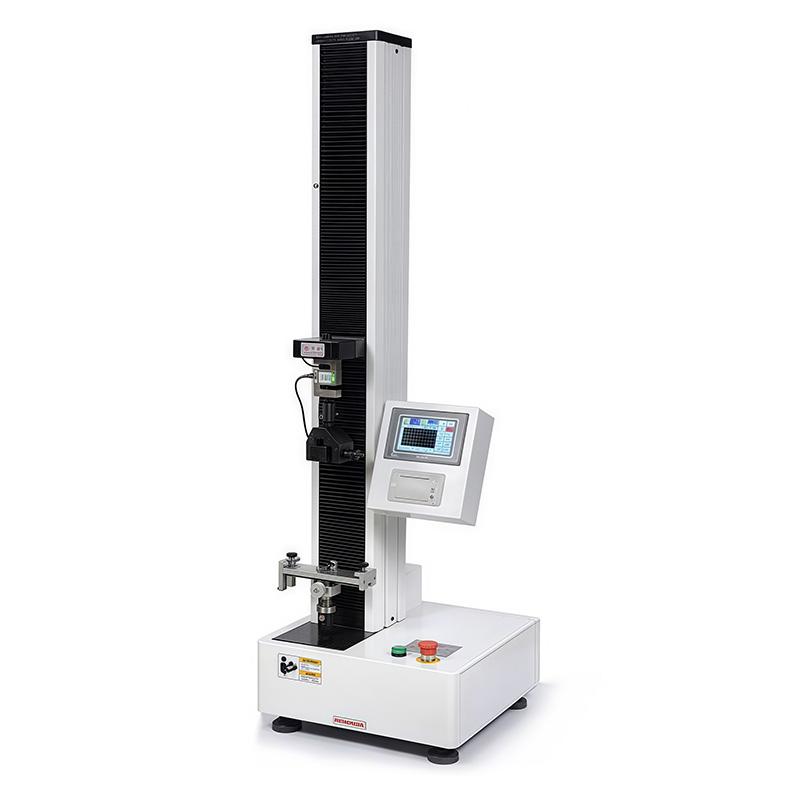

The CHENCHI WDB-02 Peel strength tester is a test equipment specially designed for universities and research institutes. It has a beautiful appearance, easy operation and stable and reliable performance. The tester can realize various test methods such as tensile strength, 180 ° Peel Strength and sealing strength. It can achieve pollution-free, low-noise and high-efficiency mechanical properties testing through CHENCHI controller and servo motor drive system, and has a wide speed range.
Features
1. Adopt five-inch color LCD touch screen operation, friendly interface
2. Measurement range 0-200N, accuracy +/- 1%
3. Stepless speed regulation system, speed range 1~ 500mm/min
4. Equipped with overload protection, leakage protection and limit protection functions
5. Effective stroke 800mm, can be customized stretch space
6. Adopt stepper motor and synchronous belt drive for smooth operation
7. Compact host structure, size 500 * 420 * 1550mm
Principle
The system controls the rotation of the servo motor through the CHENCHI controller. After deceleration by the deceleration system, the beam is driven up and down by the precision lead screw pair to complete the tensile mechanical properties test of the sample. The speed control system realizes stepless speed regulation to ensure the precise control and data accuracy of the test process.
Applications
Building materials, Aerospace, Machine building, Wires and cables, Rubber plastics, Spinning & weaving, Home appliances
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Connect the 220V 50Hz power supply
2. Set test parameters through a five-inch color LCD touch screen
3. Install the specimen and adjust the beam position
4. Select the test speed (1~ 500mm/min range)
5. Start the test, and the system automatically completes the stretching process
6. Real-time monitoring of test force, displacement, and peak data
7. Save the data after the test is completed
Notice
• Make sure the equipment is well grounded before use to prevent leakage
• Pay attention to the overload protection function to avoid overload use
• Regularly check whether the limit protection device is normal
• Keep the equipment clean to avoid dust affecting the accuracy
• Non-professionals should not disassemble or repair the equipment
• Pay attention to the weight of about 80Kg when moving the device, and need the assistance of many people
