Overview

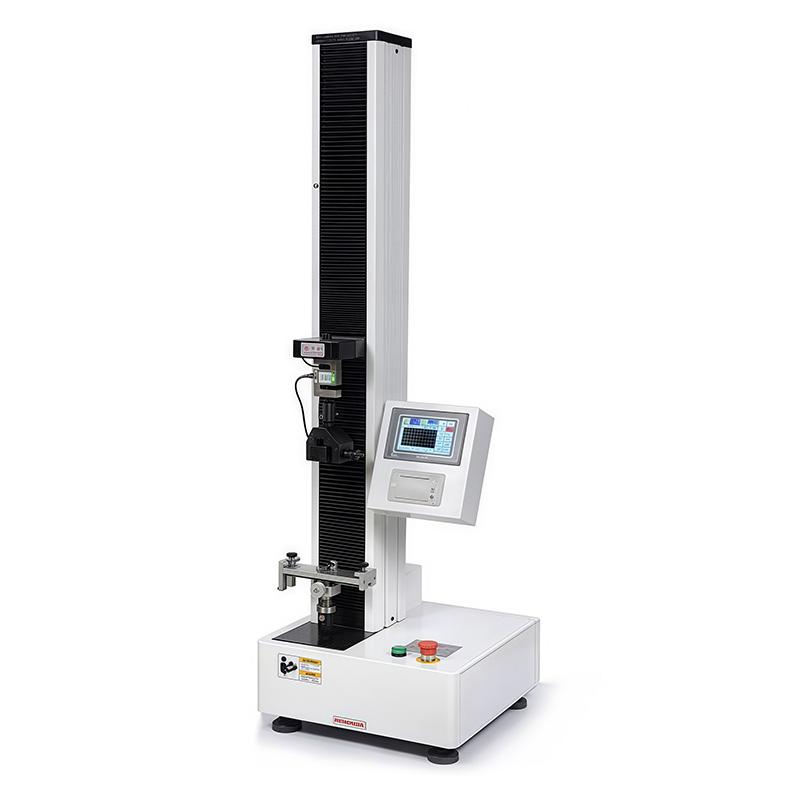

CHENCHI WDB-05 Peel strength tester is a High Accuracy testing equipment specially designed for universities and research institutes. The machine has beautiful appearance, easy operation, stable and reliable performance, and can realize various tests such as tensile strength, 180 ° Peel Strength and sealing strength. It has the characteristics of no pollution, low noise, high efficiency and wide speed regulation range. It is widely used in Building materials, aerospace, machinery manufacturing, Wire and cable, rubber and plastic, Spinning & weaving, home appliances and other industries. It is an ideal testing equipment for scientific research institutions, industrial and mining enterprises and technical supervision departments.
Features
1. Adopt five-inch color LCD touch screen operation, the interface is friendly and intuitive
2. High accuracy, Precision test force is better than the indication of +/- 1%, the minimum resolution of 0.01N
3. Wide speed range, stepless speed regulation 1~ 500mm/min
4. The drive system adopts stepper motor and synchronous belt drive for smooth operation
5. With multiple safety functions such as overload protection, leakage protection, and limit protection
6. Effective stroke and stretch space up to 800mm, can be customized according to requirements
7. Compact structure, host size 500 * 420 * 1550mm, weight about 80Kg
Principle
The system controls the rotation of the servo motor through the CHENCHI controller and the speed control system. After deceleration by the deceleration system, the beam is driven up or down by the precision lead screw pair to complete the tensile mechanical properties test of the sample. This process realizes the accurate measurement of parameters such as Peel Strength, ensuring that the test data is accurate and reliable.
Applications
Building materials, Aerospace, Machine building, Wires and cables, Rubber plastics, Spinning & weaving, Home appliances
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Turn on the 220V 50Hz power supply and turn on the device
2. Set test parameters such as speed and force range through a five-inch color LCD touchscreen
3. Install the sample to ensure that it is firmly fixed
4. Start the test, the system automatically controls the beam movement for tensile or disbonding test
5. Real-time monitoring of test force, displacement, and peak data
6. After the test is completed, the device automatically stops and saves the data
7. Turn off the power and clean the equipment
Notice
• Check the power connection before use to ensure good grounding and prevent leakage
• Avoid overload during operation and pay attention to whether the overload protection function is normal
• Regularly check the limit protection device to ensure safe operation
• Keep the equipment clean to avoid dust affecting the accuracy
• Non-professionals should not disassemble or repair the equipment
• When customizing the itinerary, you need to confirm the specifications with the manufacturer.
