Overview

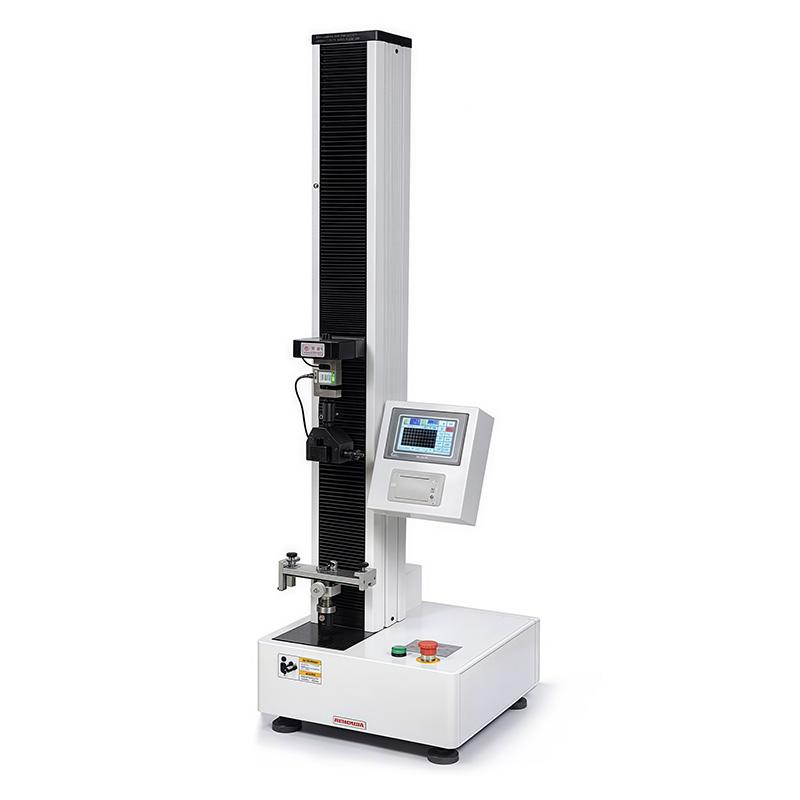

CHENCHI WDB-010 Peel strength tester is a test equipment specially designed for universities and research institutes. It has beautiful appearance, easy operation and stable and reliable performance. The equipment can realize a variety of test methods such as tensile strength, 180 ° Peel Strength and sealing strength. It has the characteristics of no pollution, low noise, high efficiency and wide speed range. It is widely used in material inspection and analysis of Building materials, Aerospace, Machinery Manufacturing, Wire and cable, Rubber Plastic, Spinning & weaving, Home Appliances and other industries.
Features
1. Adopt five-inch color LCD touch screen operation, with a friendly interface.
2. Measurement range up to 1000N, accuracy level +/- 1%.
3. Test speed range 1~ 500mm/min, stepless speed regulation.
4. The effective travel and stretching space are both 800mm, which can be customized.
5. With overload protection, leakage protection and limit protection functions.
6. The drive mode is stepper motor and synchronous belt drive, and the performance is stable.
Principle
The system controls the rotation of the servo motor through the CHENCHI controller. After deceleration by the deceleration system, the beam is driven up or down by the precision lead screw pair to complete the tensile mechanical properties test of the sample. This process realizes no pollution, low noise and high efficiency operation.
Applications
Building materials, Aerospace, Machine building, Wires and cables, Rubber plastics, Spinning & weaving, Home appliances
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Connect the 220V 50Hz power supply and turn on the device.
2. Set test parameters such as speed and force values through a five-inch color LCD touchscreen.
3. Install the specimen in the stretch space.
4. Start the test, and the system automatically controls the beam movement for testing.
5. Monitor test force, displacement, and peak data.
6. After the test is completed, the device automatically stops and saves the data.
Notice
• Ensure that the power supply is 220V 50Hz to avoid voltage instability.
• Check whether the protection functions, such as overload protection and limit protection, are normal before operation.
• Avoid use in humid or polluted environments to prevent equipment damage.
• Periodically calibrate equipment to ensure that Precision is better than +/- 1% of indication.
• When moving the device, pay attention to the weight of about 80Kg to prevent dumping.
