Overview

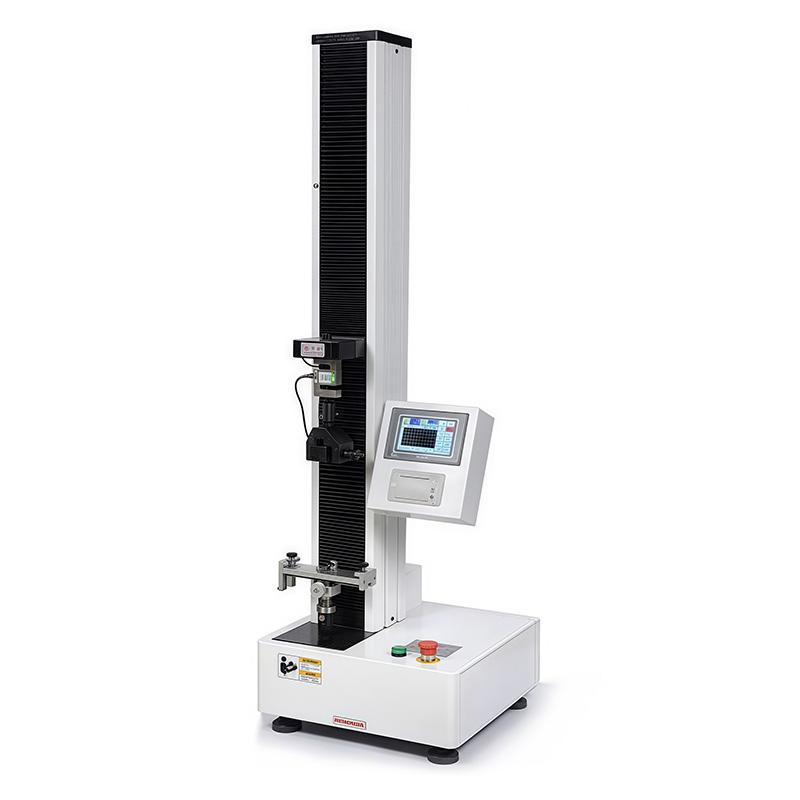

CHENCHI WDB-020 Peel strength tester is a High Accuracy testing equipment specially designed for universities and research institutes. The machine adopts the host and auxiliary equipment designed with excellent technology, with beautiful appearance, easy operation, stable and reliable performance. It can realize various test methods such as tensile strength, 180 ° Peel Strength and sealing strength. It has the characteristics of no pollution, low noise, high efficiency and wide speed regulation range.
Features
1. Adopt five-inch color LCD touch screen operation, friendly interface
Measurement range up to 2000N, accuracy +/- 1%
3. Test speed range 1~ 500mm/min, stepless speed regulation
4. Equipped with stepper motor and synchronous belt drive system
5. With overload protection, leakage protection and limit protection functions
6. The effective stroke and stretching space are both 800mm, which can be customized
7. Compact structure, host size 500 * 420 * 1550mm, weight about 80Kg
Principle
The system controls the servo motor to rotate through CHENCHI controller and speed control system. After deceleration by the deceleration system, the beam is driven up or down through the precision lead screw pair to complete the tensile mechanical properties test of the sample. The process realizes the accurate measurement and analysis of the material Peel Strength.
Applications
Building materials, Aerospace, Machine building, Wires and cables, Rubber plastics, Spinning & weaving, Home appliances
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Connect the 220V 50Hz power supply
2. Set test parameters through a five-inch color LCD touch screen
3. Install the specimen and adjust the beam position
4. Select the test speed range of 1~ 500mm/min
5. Start the test, and the system automatically completes the tensile test
6. Observe the test force, displacement, peak value and other data displayed on the LCD screen
7. Save the data and turn off the device after the test is completed
Notice
• Make sure the equipment is well grounded before use to prevent leakage
• Measurement range of 2000N must not be exceeded during the test
• Pay attention to the running limit of the beam to avoid overtravel
• Regularly check the abrasion of timing belt and lead screw pair
• Keep the surrounding environment clean and pollution-free when the equipment is running
• Non-professionals should not disassemble or repair the equipment
