Overview

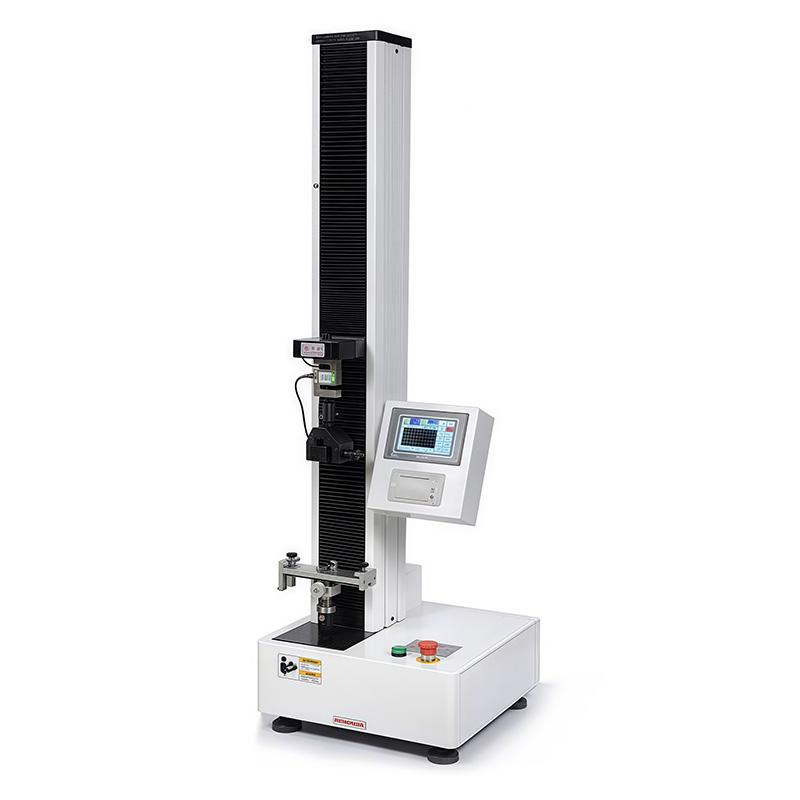

CHENCHI WDB-05 (400mm) Peel strength tester is a test equipment specially designed for colleges and research institutes, with beautiful appearance, easy operation, stable and reliable performance. The testing machine can realize tensile strength, 180 ° Peel Strength, sealing strength and other test methods. It has the characteristics of no pollution, low noise, high efficiency and wide speed regulation range. It is widely used in Building materials, aerospace, machinery manufacturing, Wire and cable, rubber and plastic, Spinning & weaving, home appliances and other industries. It is an ideal testing equipment for scientific research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Features
1. Adopt five-inch color LCD touch screen operation mode, with a friendly interface.
2. Measurement range 0-500N, high accuracy, Precision test force is better than the indication of +/- 1%.
3. Stepless speed control system, speed range 1~ 500mm/min, adaptability.
4. The drive mode is stepper motor and synchronous belt drive, running smoothly.
5. Equipped with multiple safety functions such as overload protection, leakage protection, and limit protection.
6. The effective stroke and stretch space are both 400mm, which can be customized according to requirements.
Principle
The system controls the servo motor to rotate through CHENCHI controller. After the speed control system and the deceleration system, the beam is driven up or down by the precision screw pair to complete the tensile mechanical properties test of the sample. This process realizes the test of no pollution, low noise and high efficiency.
Applications
Building materials, Aerospace, Machine building, Wires and cables, Rubber plastics, Spinning & weaving, Home appliances
Standards
GB 8808、GB/T 1040.1、GB/T 1040.2、GB/T 1040.3、GB/T 1040.4、GB/T 1040.5、GB/T 4850、GB/T 12914、GB/T 17200、GB/T 16578.1、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Turn on the power supply and ensure that the voltage is 220V 50Hz.
2. Set test parameters, such as speed, force value, etc., through a five-inch color LCD touch screen.
3. Install the specimen and adjust the beam position to fit the tensile space.
4. Start the test, and the system automatically controls the beam movement for testing.
5. Monitor the test force, displacement, peak value and other data displayed on the LCD screen.
6. After the test is completed, the system automatically stops and records the results.
Notice
• Power supply voltage is 220V 50Hz to avoid voltage instability.
• Check whether the protection function is normal before operation, such as overload protection and leakage protection.
• Periodically calibrate equipment to ensure that the Precision test force is within +/- 1%.
• Avoid overloading and prevent damage to precision components.
• Keep the equipment clean to prevent dust from affecting the accuracy.
