$ 2057.00Ex works
Glass sealing barrel with a wall thickness of 15mm, pressure accuracy +/- 0.1kPa, support single point and layer pressure mode, automatic constant pressure air replenishment and safety protection functions to ensure accurate and reliable testing.
Category : Leak Tester
Brand : labchen
SKU : NB042835
Service :The delivery and service By NBCLab.Com

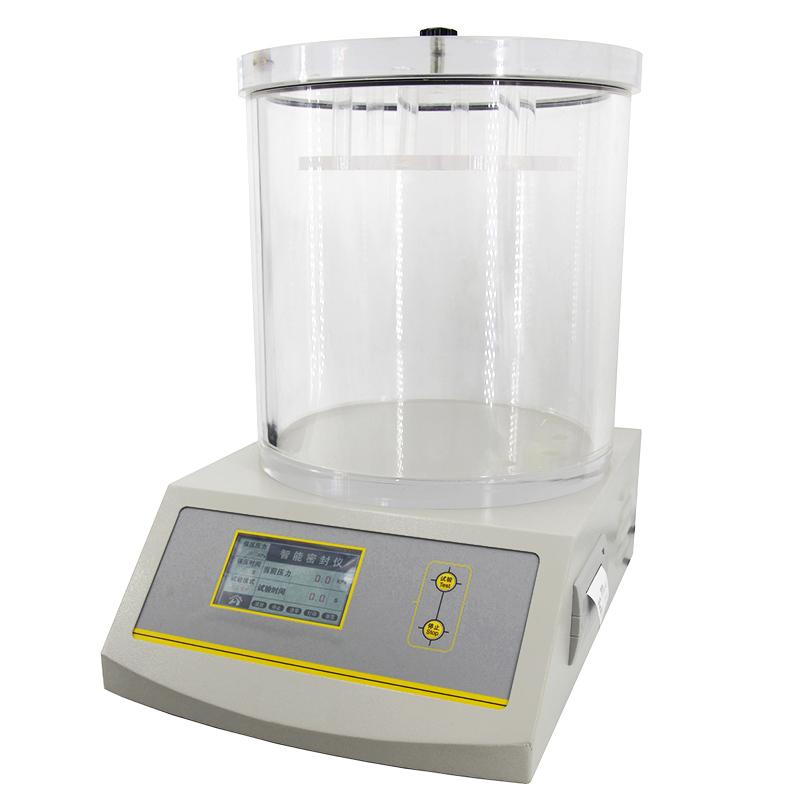

CHENCHI MFY-01B sealing tester is suitable for sealing tests of Encasement bags, bottles, tubes, cans, boxes, etc. in the food, medical equipment, daily chemical, automotive, electronic components, stationery and other industries. The instrument meets the new GMP certification testing requirements, and can conduct sealing performance tests of specimens after drop and pressure tests.
1. Microcomputer control, test parameters can be set, and the test process is fully automated. 2. The LCD touch screen displays the test process, setting the pressure, setting the pressure holding time and real-time pressure and other parameters are displayed simultaneously; 3. PVC operation panel, configure start and stop physical buttons, simple and convenient operation; 4. The sealing barrel material is made of good organic Glass pipe, and the wall thickness reaches the highest 15mm Film thickness in the industry; 5. The pressure holding time, test pressure, and supplementary pressure ratio can be set in advance to achieve one-click operation during the test process; 6. Precision pneumatic components, superior sealing performance, more reliable mass; 7. The instrument is equipped with two test modes, single-point pressure mode and three-point increasing pressure mode. 8. Automatic constant pressure air replenishment according to the supplementary pressure ratio during the test, without manual operation; 9. At the end of the test, the pressure will be automatically blown back to unload, saving more operating time; 10. The pressure sensor has a built-in pressure calibrating module and supports multi-point pressure calibrating, which is convenient for three-way calibrating; 11. Multiple pressure overloads and electrical safety protection ensure the safety of instruments and operators. 12. Optional oil-free Vacuumpump, fast vacuum, no need to buy another gas source; 13. The instrument comes with an air filtrating device, which is convenient for external water discharge and cleaning impurities, effectively ensuring the safe operation of the internal components of the machine; 14. The instrument adopts a three-power independent power supply mode, with an independent power supply for the host controller, an independent power supply for the pressure receiving module, and an independent power supply for the pressure control module. 15. The instrument is equipped with a thermal micro-printer, and the test results can be directly output and printed. 16. The instrument has the functions of saving and querying test results. 17. Optional standard serial PC communication interface or network port output; 18. Optional laboratory data management system can be purchased to achieve multi-line data statistical management.
By vacuuming the vacuum chamber, the sample immersed in water to produce internal and external pressure difference, the test sample internal gas escape outside the case, in order to determine the sealing performance of the sample; by vacuuming the vacuum chamber, the sample to produce internal and external pressure difference, the test sample expansion and release of vacuum after the sample shape recovery, in order to determine the sealing performance of the sample.
Food Industry: Soft Bag Encasement, Semi-Hard Encasement, Hard Encasement; ** Equipment Industry: Airtight Container, Blister Encasement, Small Headspace Encasement; Miscellaneous: Tyvek, All kinds of aluminum foil bags, wet wipes, cosmetics Encasement, etc
GB/T 15171、ASTM D3078
1. Set test parameters, including pressure holding time, test pressure, and supplementary pressure ratio. 2. Select the test mode, single-point pressure mode or three-point incremental pressure mode; 3. Start the test, and the instrument will automatically vacuum, make up pressure, and end the test. 4. Observe the change of the pressure difference between the inside and outside of the sample or the recovery of the shape. 5. Automatic backblowing unloading pressure at the end of the test; 6. Output the test results through the thermal printer, or save the query data.
• Ensure that the power supply is AC 220V 50Hz to avoid voltage instability affecting the operation of the instrument; • Check whether the air source interface is firmly connected before use to prevent air leakage; • Regularly clean the air filtrating device to ensure the safe operation of the machine; • Pay attention to the pressure range during operation to avoid overload. • The instrument adopts three independent power supplies to ensure the normal and interference-free operation of each module; • When Vacuumpump is optional, pay attention to the fast vacuum operation; • Do not manually intervene in the pressure replenishment process during the test; When saving and querying test data, ensure that the instrument connection is stable. • Calibrate and test against relevant standards to ensure accurate results.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
