Overview

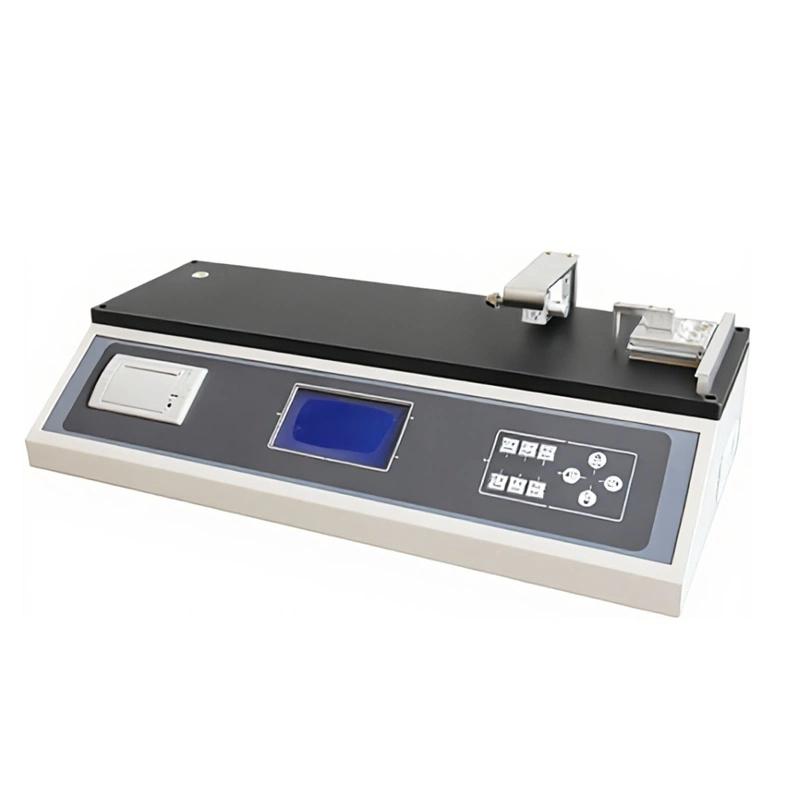

CHENCHI MXD-02 (0-10N) Friction coefficient meter is a professional instrument for the measurement of Static Coefficient of Friction and Dynamic Coefficient of Friction when materials slide. The instrument is manufactured with reference to GB 10006 and ASTM D1894, and conforms to a number of national standards. It is suitable for friction performance testing of Plastic film, rubber, paper, metal composites and other materials, and can be expanded for 180 ° Peel Strength testing.
Features
1. Microcomputer control, fully automated testing process
2. Support a variety of standard test methods and any non-standard test
3. PVC control panel, LCD display results, parameters and test Linear dispersion
4. High Accuracy Imported Sensor, High Test accuracy, Good Stability Repeatability
5. Support setting arbitrary slider mass test
6. The test stroke can be arbitrarily set within 0-320mm
7. The test speed can be arbitrarily set within 0-1200mm/min
8. The whole machine has no mechanical knob, full digitalization control
9. Special drive system, smooth operation without vibration and noise
10. Real-time display of Linear dispersion and determination of Static and Dynamic Coefficients of Friction
11. Equipped with a micro printer to print test reports
12. The test bench and test slider are degaussed to reduce system errors
13. Configure RS232 communication port to support computer control test
Principle

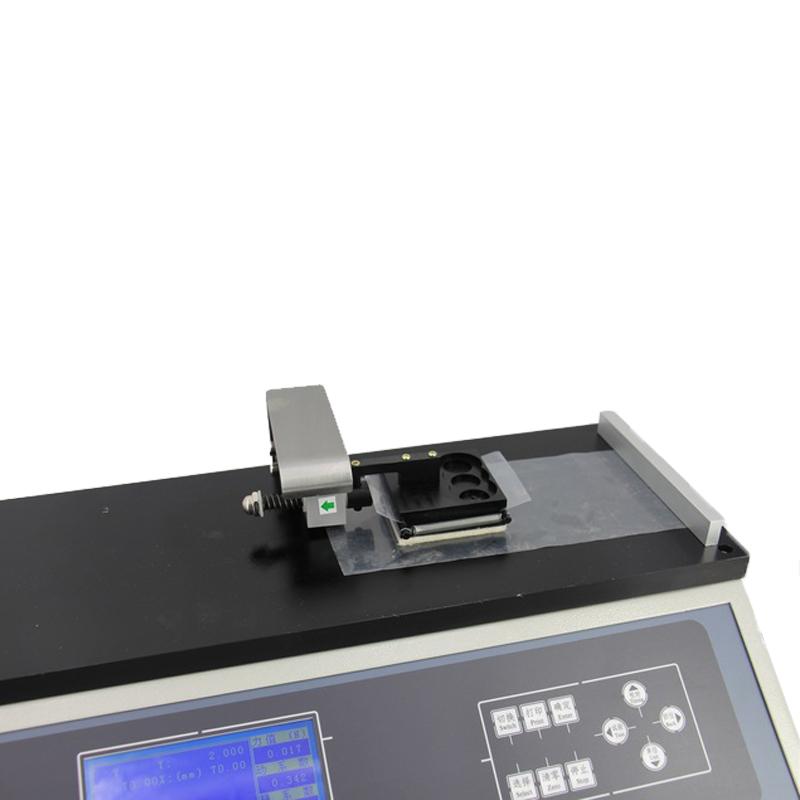

The instrument drives the test slider to slide on the material surface through the microcomputer control system, monitors the force value change during the sliding process in real time, and automatically calculates and displays the static Coefficient of Friction and Dynamic Coefficient of Friction of the material. The 180 ° Peel Strength Test function can also be realized by changing the fixture.
Applications
Plastic films and sheets, Rubber, Paper, Cardboard, Woven bags, Fabrics, Metal composite belts, Conveyor belts, Wood, Coatings, Self-adhesive, Release paper, Protective film, Tape, Label
Standards
GB 10006、ASTM D1894、GB/T 17200、GB/T 22895、ISO 8295、TAPPI T816、GB/T 2792
Steps
1. Connect the AC220V power supply
2. Set test parameters (slider mass, stroke, speed, etc.)
3. Install the sample material
4. Start the automated test program
5. The instrument automatically completes the test and displays the results
6. The test report can be output through the printer
7. Optional computer software for remote control
Notice
It should be used in a standard laboratory environment
• Power supply voltage AC220V 50HZ before use
• Pay attention to the setting range of slider mass and travel
• Make sure the specimen is firmly installed before testing
• Regularly check instrument accuracy and Stability
• Keep the instrument clean to avoid strong magnetic field interference
