Overview

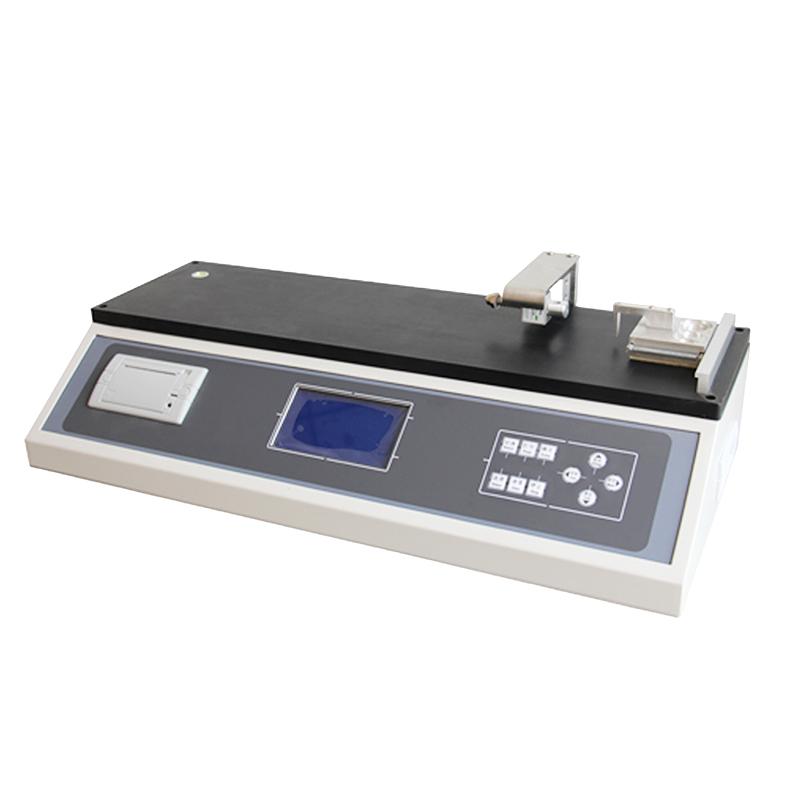

CHENCHI MXD-02 (0-30N) Friction coefficient meter is manufactured with reference to GB 10006 and ASTM D1894, and conforms to GB/T 17200, GB/T22895, ISO 8295, TAPPI T816 and other national standards. Professional for measurement Plastic film and sheet, rubber, paper, Cardboard, woven bags, fabrics, metal composite belts, conveyor belts, wood, coatings and other materials Coefficient of Friction and Dynamic Coefficient of Friction when sliding. By measuring the slipperiness of the material, the mass process index of material production can be controlled and adjusted to meet the requirements of product use. The 180 ° Peel Strength test of materials such as self-adhesive, release paper, protective film, tape, and labels can also be achieved by changing the fixture.
Features
1. Microcomputer control, fully automated testing process.
2. Support a variety of standard test methods such as GB 10006, ISO 8295, ASTM D1894, TAPPI T816, GBT2792, etc., and support any non-standard test.
3. PVC control panel, LCD display results, parameters, Linear dispersion test.
4. High Accuracy Imported Sensor, High accuracy of test results, Good Stability Repeatability.
5. Support setting arbitrary slider mass test.
6. The test stroke can be arbitrarily set within 0-320mm.
7. The test speed can be set arbitrarily within 0-1200mm/min.
8. The whole machine has no mechanical knob, full digitalization control.
9. Specially designed drive system, running smoothly, without vibration or noise.
10. Linear dispersion is displayed in real time during the test, and the static and dynamic Coefficients of Friction are measured simultaneously.
11. Equipped with a microprinter, it can print test reports with real-time or historical data.
12. The instrument test table and test slider have been degaussed and remanence detected, effectively reducing the system test error.
13. Configure a standard RS232 serial communication port and use professional computer software to pass computer-controlled tests.
Principle
The instrument controls the fully automatic test process through microcomputer, uses High Accuracy Imported Sensor to measure the force value when the material slides, displays the force value Linear dispersion in real time, and automatically calculates the display Static Coefficient of Friction and Dynamic Coefficient of Friction. 180 ° Peel Strength Test can be achieved by changing the fixture.
Applications
Plastic film and sheet, rubber, paper, Cardboard, woven bag, fabric, metal composite belt, conveyor belt, wood, coatings and other materials sliding Coefficient of Friction and Dynamic Coefficient of Friction measurement; self-adhesive, release paper, protective film, tape, labels and other materials 180 ° Peel Strength test
Standards
GB10006、GB/T17200、GB/T22895、ISO8295、ASTM D1894、TAPPI T816、GBT2792
Steps
1. Connect the power supply AC220V 50HZ.
2. Set the slider mass, test stroke and test speed.
3. Place the specimen on the test table.
4. Start the fully automated test controlled by the microcomputer.
5. Observe the force value Linear dispersion and results displayed on the LCD screen in real time.
6. Use a microprinter to print the test report.
Notice
• Power supply voltage AC220V 50HZ.
• Check the slider mass and size settings before testing.
Maintain a standard laboratory environment for testing.
• Regular instrument calibrating and maintenance.
Make sure the RS232 communication connection is normal when using professional computer software.
