Overview

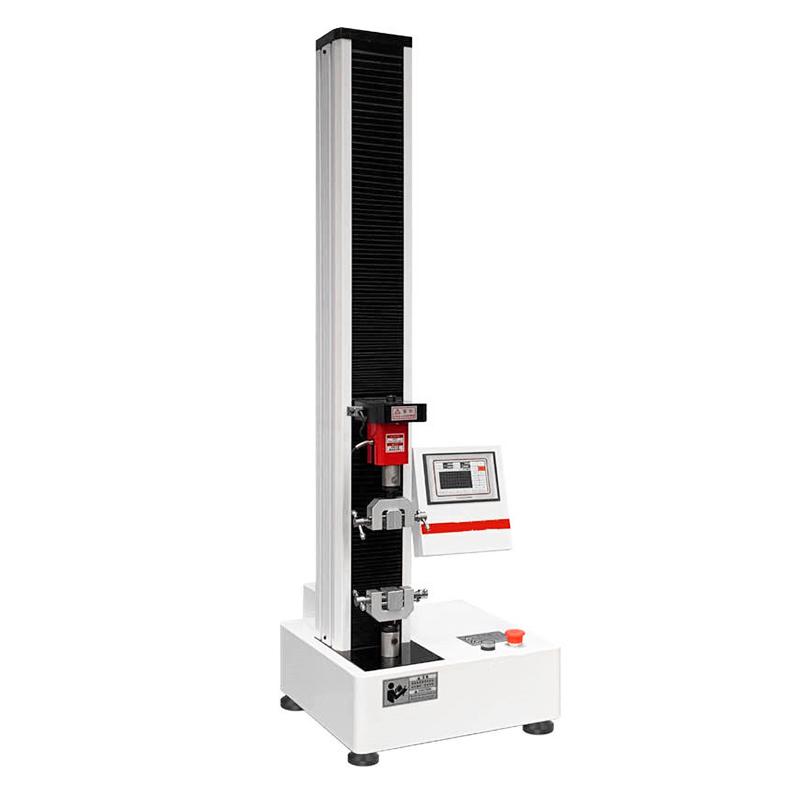

Taichang Instrument TC-DLJ01 Microcomputer Universal Testing Machine is a High Accuracy testing equipment using imported Sensors, suitable for tensile and tensile strength tests of paper, film, rubber, plastic, woven bags, roll films and other materials, as well as 180 degree disbonding, 90 degree disbonding, T-shaped disbonding, Adhesive Peel Strength and heat sealing strength.
Features
1. High Accuracy all-digital speed control system and precision gear reducer are used to drive the precision screw pair to achieve a wide range of speed adjustment, low noise and smooth operation.
2. Touch key operation mode, LCD real-time display test method selection, parameter selection, operation results and Linear dispersion interface, easy and fast operation.
3. It has the functions of digital display of test force, continuously adjustable speed, automatic shutdown of sample breaking, and peak holding.
4. It can adjust the speed of the beam when the sample is clamped, and is equipped with protection devices such as overcurrent, overvoltage, and overload.
Principle
The Universal Testing Machine controls the precision gear reducer and screw pair through the High Accuracy all-digital speed control system, drives the beam motion, applies tensile force to the sample, monitors the force value and displacement in real time, and realizes accurate tensile and disbonding tests.
Applications
Tensile, tensile strength, 180 degree disbonding, 90 degree disbonding, T-type disbonding, Adhesive Peeling Strength, Heat Sealing Strength Test of Paper, Film, Rubber, Plastic, Woven Bag, Roll Film and Other Materials
Standards
GB 8808、GB 13022、GB 1040、GB 4850、GB 7753、GB 7754、GB 453、GB/T 17200、GB/T 16578、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、ASTM E4、ASTM D828、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、ISO 37、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Select the test method and parameters.
2. Clamp the sample and adjust the beam lift.
3. Start the test and monitor the force and displacement in real time.
4. The sample is automatically shut down when broken, and peak data is recorded.
Notice
Make sure the power supply is 220V 50Hz.
• Pay attention to overcurrent, overvoltage and overload protection during operation.
• Regularly check the running stability and noise level of the equipment.
