Overview

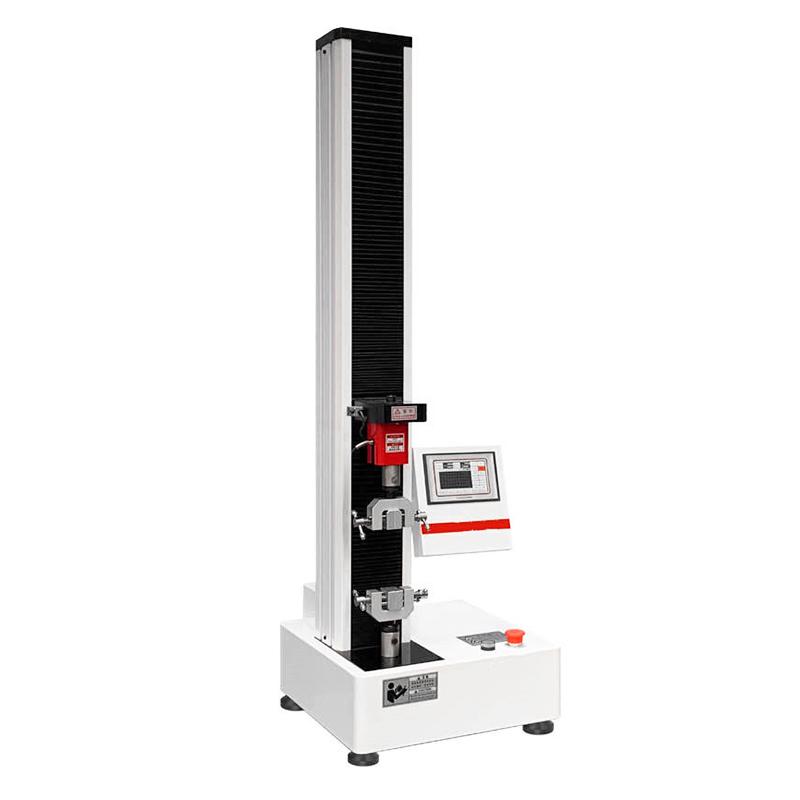

Taichang Instrument TC-DLJ01 Microcomputer Universal Testing Machine is a tensile and tensile strength testing equipment suitable for paper, film, rubber, plastic, woven bag, roll film and other materials. It can also perform 180 degree disbonding, 90 degree disbonding, T-shaped disbonding, Adhesive Peel Strength and heat sealing strength tests.
Features
1. High Accuracy Digital Speed Control System and Precision Gear reducer are used to drive the precision lead screw pair to achieve a wide range of speed adjustment, low noise and smooth operation.
2. Touch key operation mode, LCD real-time display test method selection, parameter selection, operation results and Linear dispersion interface.
3. Equipped with digital display of test force, continuously adjustable speed, automatic shutdown of sample breaking, and peak holding function.
4. When the sample is clamped, the speed of the beam can be adjusted, and it is equipped with protective devices such as overcurrent, overvoltage, and overload.
Principle
The Universal Testing Machine controls the precision gear reducer through the High Accuracy all-digital speed control system, drives the precision screw pair for tensile or disbonding test, and realizes the accurate adjustment of the test speed and the real-time measurement of the force value.
Applications
Tensile, tensile strength, 180 degree disbonding, 90 degree disbonding, T-type disbonding, Adhesive Peeling Strength, Heat Sealing Strength Test of Paper, Film, Rubber, Plastic, Woven Bag, Roll Film and Other Materials
Standards
GB 8808、GB 13022、GB 1040、GB 4850、GB 7753、GB 7754、GB 453、GB/T 17200、GB/T 16578、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、ASTM E4、ASTM D828、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、ISO 37、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Select the Test Method interface.
2. Set the test parameters.
3. Clamp the specimen and adjust the beam lift.
4. Start the test and observe the display interface in real time.
5. Automatic shutdown after the sample is broken to check the peak value and results.
Notice
Make sure the power supply is 220V 50Hz.
• Check overcurrent, overvoltage and overload protection devices before operation.
• Pay attention to the lifting adjustment of the beam when clamping the sample.
• Avoid overloading during the test.
