Overview

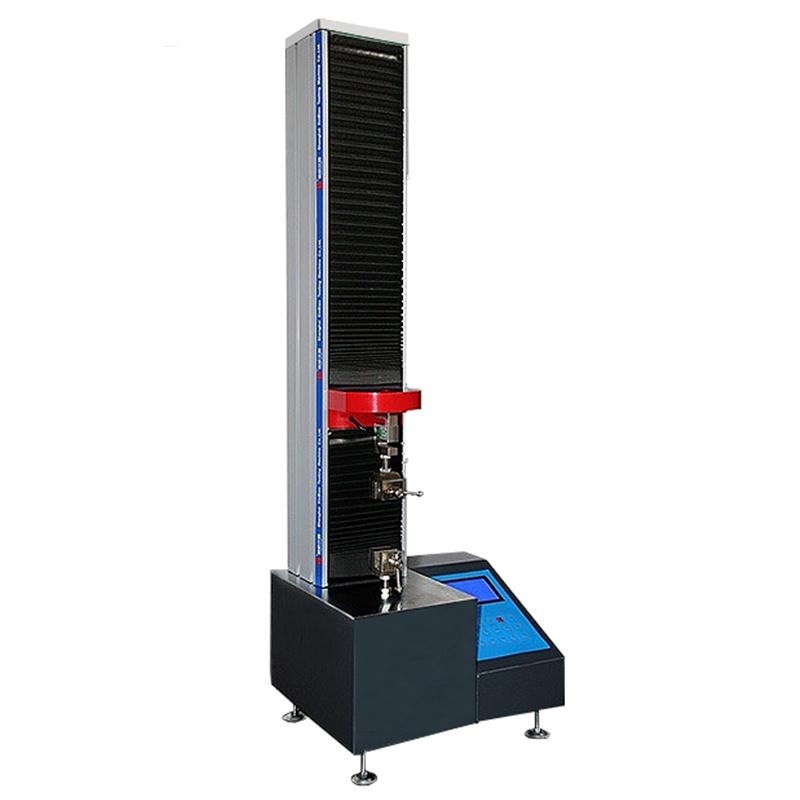

Taichang Instrument TC-DLJ01C (1000mm) Universal Testing Machine is suitable for tensile and tensile strength testing of paper, film, rubber, plastic, woven bag, roll film and other materials, and can also do 180 degree disbonding, 90 degree disbonding, T-type disbonding, Adhesive Peel Strength test and heat seal strength test.
Features
1. High Accuracy, all-digital speed control system and precision gear reducer are used to drive the precision screw pair for testing, and the test speed is adjusted in a wide range. The test process has low noise and stable operation.
2. Touch key operation mode, LCD real-time display, the interface includes test method selection, parameter selection, operation and result display and Linear dispersion display, convenient and fast.
3. It has the functions of digital display of test force, continuously adjustable test speed, automatic shutdown of sample breaking, and peak holding.
4. It can adjust the speed of the beam when the sample is clamped, and has protection devices such as overcurrent, overvoltage, and overload.
Principle
The Universal Testing Machine uses the High Accuracy all-digital speed control system and the precision gear reducer to drive the precision screw pair to achieve accurate adjustment of the test speed, and real-time monitoring of force and displacement during the test process to ensure the accuracy and reliability of the test data.
Applications
Paper, film, rubber, plastic, woven bags, roll film and other materials tensile strength test, 180 degree disbonding, 90 degree disbonding, T-type disbonding, Adhesive Peel Strength test, heat sealing strength test
Standards
GB 8808、GB 13022、GB 1040、GB 4850、GB 7753、GB 7754、GB 453、GB/T 17200、GB/T 16578、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、ASTM E4、ASTM D828、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、ISO 37、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Select the Test Method interface.
2. Set the test parameters.
3. Clamp the specimen and adjust the beam lift.
4. Start the test and observe the display interface in real time.
5. Automatic shutdown after the sample is broken, check the results and Linear dispersion.
Notice
Make sure the power supply is 220V 50Hz.
• Check whether the overcurrent, overvoltage and overload protection devices are normal before operation.
• Pay attention to the adjustment speed of the beam when clamping the sample.
• Avoid overloading during the test.
