Overview

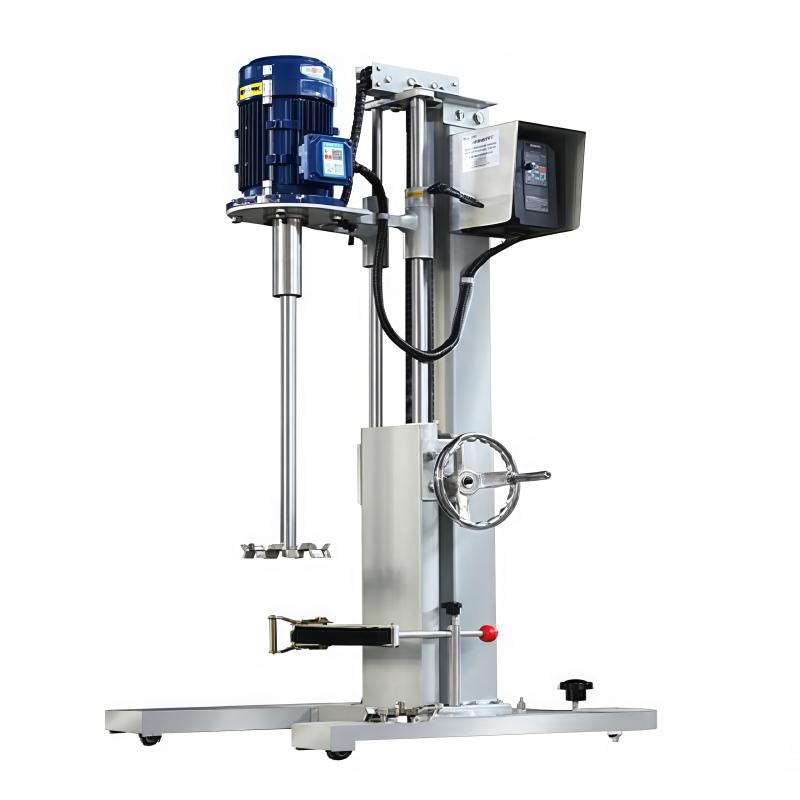

MUXUAN MXF-A4 manual lift Disperser is a new type of product designed according to the actual needs of production. It is mainly used for the pre-production experiments of liquid slurries such as paints, coatings, pigments, plastics, food, etc., to provide correct data for large-scale production, and can also be used for small batch production. The product can disperse 10-200L of material, and the explosion-proof type can be customized according to the material characteristics.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. Digital display dynamic speed conversion control, can be selected according to process needs, timing constant speed, motor explosion-proof, whole machine explosion-proof, voice-activated alarm and other configurations
3. Lifting methods are divided into hand lift and electric lift
4. Stirring methods include paddle type, toothed disc type, and blade type. Different Stirring forms can be selected according to the needs of process production, and the replacement is simple and convenient
Principle
The high-speed operation of the dispersion disk causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction occur between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and Stir.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Choose the appropriate Stirring form according to the material characteristics
2. Adjust the lifting method to the appropriate position
3. Set the speed parameters
4. Start the device for decentralized operation
5. Turn off the device after completing the dispersion
Notice
• Material viscosity should be ≤ 20000 cps
• Power supply voltage optional 220V or 380V
• Speed regulation range is 0~ 1500rpm
• Motor power is 4KW
• Choose the corresponding function configuration according to the process needs
