Overview

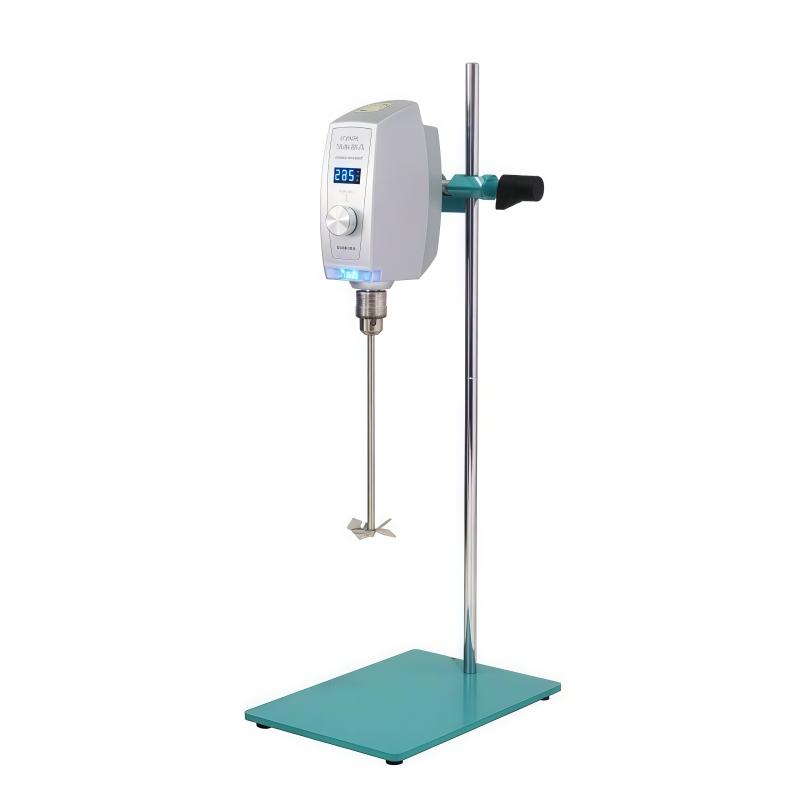

The MJB-A110 laboratory Stirrer is driven by a brushless DC motor, which is suitable for Stir mixing of low to medium and high viscosity liquids in the laboratory. The machine has a reasonable and compact structure, ultra-low noise and maintenance-free. The Stir speed is controlled by a microprocessor, which can instantly and effectively compensate for the speed changes caused by load changes and Power supply voltage fluctuations, and the constant speed is reliable. Built-in automatic overload protection device to ensure long-term high-load continuous operation of the experiment; penetrating Stir chuck to expand the experimental application function of various types of stirringrod; digital display Stir speed to ensure intuitive collection of experimental data; stepless Stir speed regulation to meet the Stir speed correction at any time in the experiment; stable Stir speed, competent for high viscosity medium and slurry Stir, can be equipped with a variety of different specifications of the working head.
Features
1. High-performance motor with lower noise and smoother operation.
2. CPU digital display dynamic speed control, speed memory timing function, intelligent control of the whole machine;
3. The whole machine design is reasonable, modular design, simple structure, and light operation; the working head can be replaced.
4. Built-in automatic overload protection device to ensure long-term high-load continuous operation of the experiment;
5. Penetrating Stirring chuck to expand the experimental application function of various stirringrods;
6. Stirring speed is displayed digitally to ensure visual acquisition of experimental data.
7. Stepless Stirring speed regulation, to meet the Stirring speed correction at any time in the experiment;
8. Stirring speed, competent for high viscosity medium, Stirring slurry;
9. Can be equipped with a variety of working heads of different specifications.
Principle
Drive the Impeller through the motor to mix the liquid evenly.
Applications
Biology, Food, Coatings, inks, Spinning & weaving aids, Cosmetics, Lubricants, Pesticides
Steps
1. Connect the power supply and ensure that the voltage is AC 220V 50Hz.
2. Select the appropriate stirringrod according to the needs and install it to the quick chuck;
3. Turn on the power switch and use the combined control knob to set the required speed (30~ 2000rpm) and timing (1-6000min).
4. Start Stirrer and observe the digital display to ensure stable speed.
5. After the experiment is completed, turn off the power and clean the stirringrod and machine.
Notice
- Material viscosity must not exceed 100000 cps (mPas);
- Stirring capacity range is 0.2~ 20L;
- Allowable environment temperature is not more than 40 ℃;
- Allowable relative humidity not more than 80%;
- Power supply voltage check before use;
To avoid overload operation, built-in protection devices can automatically handle it.
Regularly clean and maintain the machine to extend its service life.
- Pay attention to safety during operation to prevent liquid splashing.
