Overview

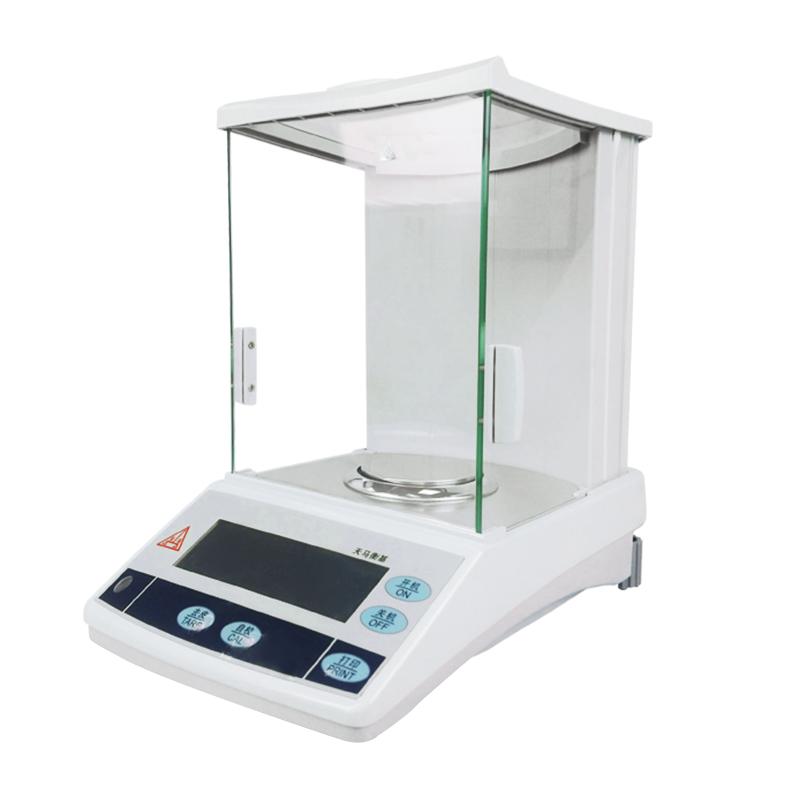

JA1003A 1mg Precision Electronic Analytical Balance is a High Accuracy Electronic Analytical Balance produced by Tianma with an accuracy of 0.001g, with a maximum range of 100g and a test weight of 50g.
Features
1. Single Modular Sensor
2. High Sensitivity Touch button
3. Blue large-screen LCD display for range indication
4. Built-in hook (optional)
5. Independent reset and peeling buttons for two-way communication
6. Weighing fast, weighing speed is several times faster than the general Balance
7. Easy to operate, mass unit conversion, counting function
8. Highly intelligent, full-scale peeling, automatic zero tracking, overload and underload display, automatic fault diagnosis
9. With a variety of functions such as printing function to choose from
10. Level 4 shockproof
11. Equipped with RS232 interface module, can be connected to the printer
Principle
The Precision Electronic Analytical Balance uses a single modular Sensor technology to detect object mass through a High Accuracy Sensor, and an intelligent software system to achieve fast and accurate weighing analysis.
Applications
Industry, agriculture, commerce, schools, scientific research, etc
Standards
Accuracy class: II
Steps
1. Connect the power supply and turn it on.
2.Externally calibrated with 50g test weight
3. Place the object to be measured on the pan for weighing
4. Use the clearing and peeling functions for measurement
5. The printer output data can be connected through the RS232 interface
Notice
• Ambient Temperature should be maintained at 5~ 40 ℃
• relative humidity should be kept at 50%~ 60% RH
• Avoid overload use and pay attention to the overload display prompt
• External calibrated before use to ensure accuracy
• Pay attention to shockproof protection, the instrument has four-level shockproof function
