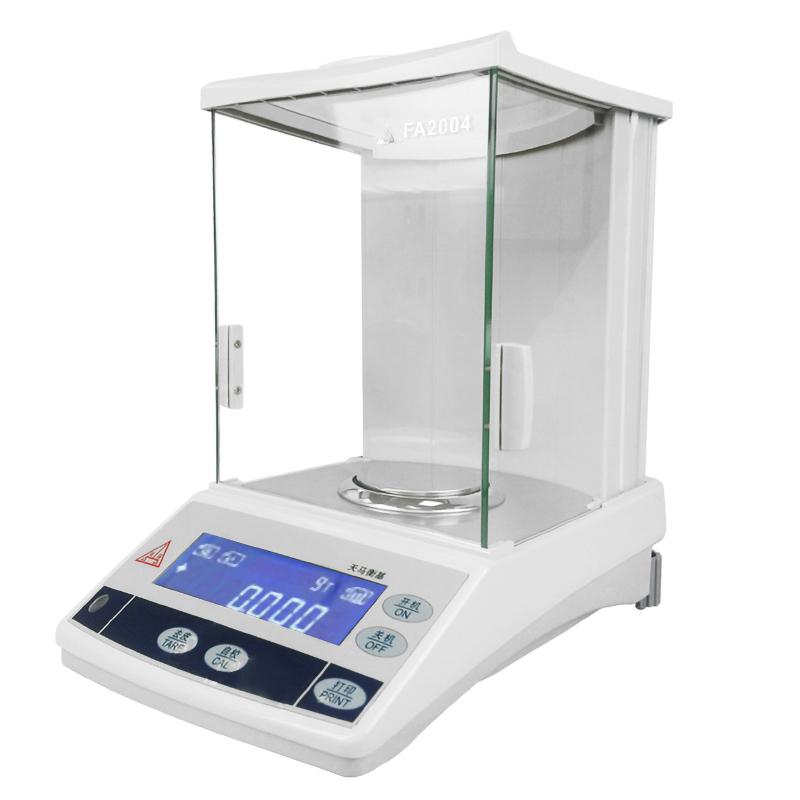

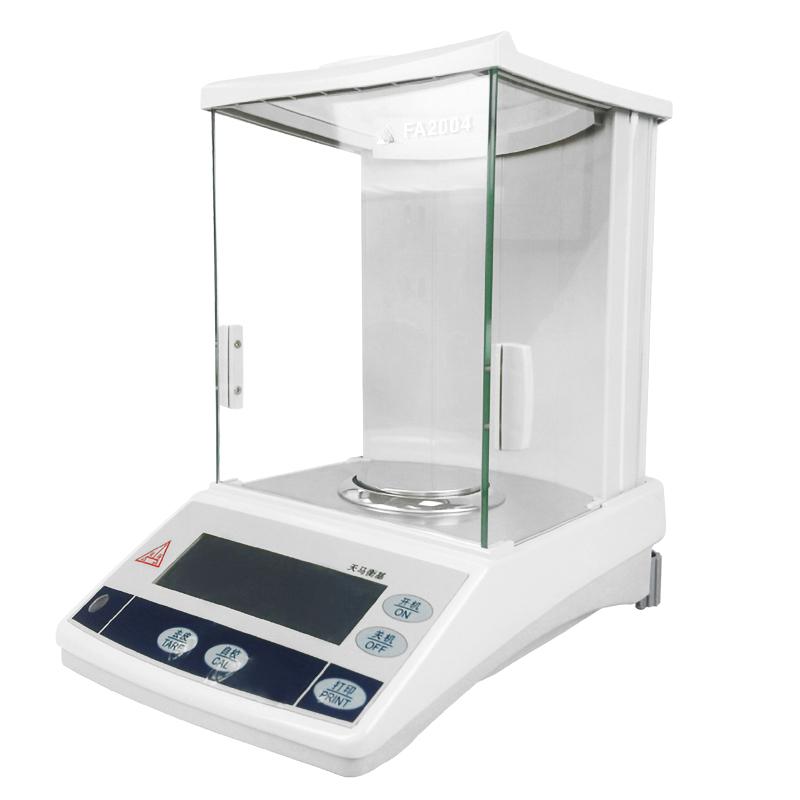

Tianma JA10003 JA Series Precision Balance One thousandth of 1mg external calibrated four-level shock proof

Name: Tianma JA10003 JA Series Precision Balance One thousandth of 1mg external calibrated four-level shock proof
Brand: TianMa
SKU: NB004302
Price: 619.0 USD
Availability: InStock

$ 619.00Ex works

Modular electromagnetic force equilibrating Sensor, Weighing speed adjustable and Stabilization time ≤ 5 seconds, with four shock and RS232 interface, support two-way communication and a variety of mass unit conversion.

Model

JA10003

Get Quote

Category : Electronic Balance

Brand : TianMa

SKU : NB004302

Service :The delivery and service By NBCLab.Com

Overview

Tianma JA10003 One thousandth Precision Balance is a JA series product with accuracy class II. It adopts external Calibration method and Modular electromagnetic force equilibrating Sensor, which has the advantages of fast weighing and simple operation.

Features

1. Level 4 shockproof 2. RS232 interface module 3. High Sensitivity Touch button 4. Built-in hook 5. Independent reset and peeling buttons for two-way communication 6. Weighing fast, weighing speed several times faster than the general Balance, and weighing speed adjustable Display mode adjustable dynamic temperature compensation 7. High intelligence, can be peeled in the full range, automatic zero tracking adjustable, overload, underload display, automatic fault diagnosis Sensor overload protection 8. With a variety of functions such as technical functions to choose from 9. Modular electromagnetic force equilibrating Sensor 10. Blue large-screen LCD display for range indication 11. Easy to operate, mass unit conversion, providing the function of arbitrarily selecting units, users can arbitrarily choose a variety of internationally commonly used mass units provided by the software

Principle

Modular Electromagnetic Force equilibrating Sensor for precise weighing.

Steps

1. Connect the Power Adapter 2. Boot warm-up 3. Externally calibrated 4. Place the sample and weigh it 5. Use the reset or peel function 6. Read the display results

Notice

• Ambient Temperature should be kept at 15~ 30 ℃, temperature fluctuation is not more than 5 ℃/h • relative humidity should be controlled at 40~ 80% RH • Avoid overloading • Using External Adjustments to Ensure Accuracy Note the use of Draft Shield to reduce environmental impact

weighing Range
0~1000g
minimum Weight
20mg（0.02g）
repeatability error
±0.001g
Calibration method
Externally calibrated
Stabilization time
≤5s
Operating Conditions
15~ 30℃, temperature fluctuation is not more than 5 ℃/h
Pan Size
Ф90mm
Power supply Voltage
AC adapter 220V 50Hz output DC9V-2.2A
Net weight of instrument
7200g
Dimension
340*215*350mm
accuracy class
Grade II
Actual Graduation d
1mg
Verification scale interval e
0.01g
MPE
Load m (expressed by verification scale interval e) +/- 0.5e 0 ≤ m ≤ 50000 +/- 1.0e 50000 < m ≤ 200000 +/- 1.5e 200000 < m
Environmental humidity
40%~80%
Draft Shield Dimensions
225*220*265mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
